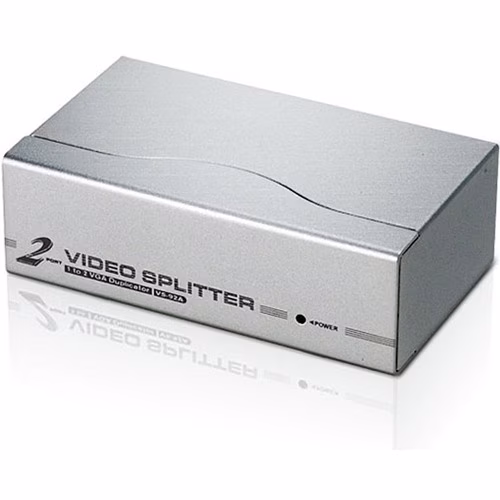

2PORT VIDEO SPLITTER W/ SUPPORT UP TO 1280 X 1024

SKU: 330161VPN: VS92A

In Stock

$41.00$33.51

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

One video input to 2 video outputs
Cascadable to 3 levels - provides up to 8 video signals
Supports 350 MHz bandwidth
Long-distance transmission - up to 30 m
Superior video quality - 1920 x 1440@60Hz
DDC, DDC2, DDC2B Compatible (Port 1 only)
Supports VGA, XGA, SVGA, UXGA,WUXGA and multisync monitors
All metal casing

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

The Video Separator is a signal booster and splitter that is used to take video input from a single source and direct it to two video outputs for monitors using analog signals. The signal boost obtained by using the VS92A allows you to not only split the signal but to extend the distance so that you can send the signal to about 210 feet. (Your average VGA card, combined with a standard VGA cable, can send a clear VGA signal approximately 25 feet.) This makes public broadcasts from a single computer very feasible. If you want to display the same information on many monitors at once, such as in a classroom environment, or at a demonstration, this product performs incredibly well.

Tech Specs

2PORT VIDEO SPLITTER W/ SUPPORT UP TO 1280 X 1024 specifications
Depth	3"
Width	5.1"
Height	0.8"
Brand Name	ATEN
Manufacturer	ATEN Technology, Inc
Product Name	VS92A VGA Switchbox
Product Type	Video Switchbox
Input Voltage	9 V DC
Product Color	Gray
Product Model	VS92A
Graphics Modes	SVGA
Device Supported	Computer

Show all 23 specs

Package Contents	<ul><li>1 x VS-92A</li><li>1 x DC 9V Power Adapter</li><li>1 x User Manual</li></ul>
Power Consumption	820 mW
Weight (Approximate)	11.20 oz
Additional Information	<ul><li>Transmission distance of up to 210 feet</li><li>Daisy-Chain multiple units together for even more outputs</li><li>Ideal for public broadcasting; remote monitoring; classroom and training facilities</li></ul>
Maximum Video Bandwidth	250 MHz
Manufacturer Part Number	VS92A
Maximum Video Resolution	1920 x 1440
Manufacturer Website Address	http://www.aten.com/us/en/
Number of Displays Supported	2
Additional Warranty Information	IN NO EVENT SHALL THE DIRECT VENDOR LIABILITY FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK, OR ITS DOCUMENTATION EXCEED THE PRICE PAID FOR THE PRODUCT. <br><br> The direct vendor makes no warranty or representation, expressed, implied, or statutory with respect to the contents or use of this documentation, and especially disclaims its quality, performance, merchantability, or fitness for any particular purpose. The direct vendor also reserves the right to revise or update the device or documentation without obligation to notify any individual or entity of such revisions, or update. For further inquiries, please contact your direct vendor.
Number of Input Devices Supported	1
