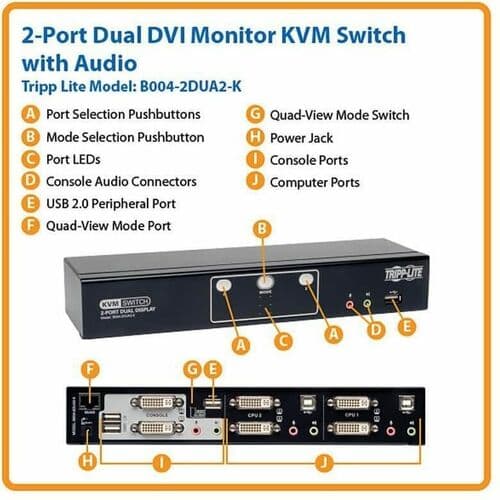

2PORT DUAL MONITOR KVM SWITCH DVI DESKTOP USB 2.0 HUB 3.5MM

SKU: TB5230VPN: B004-2DUA2-K

In Stock

$426.00$252.99

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

2-Port Dual Display DVI KVM switch with USB 2.0 Hub and Audio/ 3.5 mm Mini Stereo jacks, cables included
Quad-View Mode allows computers with three- or four-head video cards to share KVM, audio and USB peripherals by connecting two Dual Display KVM switches together
Built-in 2-Port USB 2.0 hub allows for the sharing of USB devices (CAC Card Reader, flash drives, printer, etc.) amongst the connected computers
A powered USB hub may be connected to one of the USB ports to increase the number of connected peripherals
3.5 mm Mini Stereo jacks provide Speaker (2.1 stereo sound) and Microphone support to the connected computers
Additional console audio jacks are conveniently located on the front panel of the KVM switch, making them ideal for use with IP phones
Switch between connected computers via front panel pushbuttons, keyboard hotkeys, and a function that allows for switching via your mouse's scroll wheel
Switch the KVM, USB, and Audio functionality all at the same time, or separately. KVM control can be fixed on one computer, while the USB 2.0 hub and/or Audio functionality is fixed on another
Auto Scan mode allows you to scan the connected computers without having to manually switch between them
DVI-I connectors support both Dual Link digital resolutions up to 2560 x 1600, and analog resolutions up to 2048 x 1536
Connect a VGA monitor or computer port by using a P556-Series DVI to VGA adapter cable instead of the included DVI-D cables.
Compatible with all major operating systems; Windows, Mac, Linux, Sun
Supports 3D graphics and gaming
Supports hot plugging - Computers and devices can be unplugged and re-plugged without having to shut down the KVM switch
The KVM switch stores the EDID (Extended Display Identification Data) of the connected monitors, which ensures optimal display resolution and prevents any delay or change in video resolution when switching between or booting computers
Full time DDC support provides the necessary EDID information for optimal video performance on Windows 7 and other operating systems
Supports VESA DDC2B emulation and TMDS signal pass-through
LEDs provide for easy monitoring of the connected computers

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Tech Specs

2PORT DUAL MONITOR KVM SWITCH DVI DESKTOP USB 2.0 HUB 3.5MM specifications
DVI	Yes
USB	Yes
Depth	3"
Width	10.3"
Height	1.8"
USB 2.0	Yes
Features	LED Indicator
Headphone	Yes
Brand Name	Tripp Lite series
Microphone	Yes
Form Factor	Desktop
Color Family	Black

Show all 40 specs

Graphic Mode	WQXGA
Manufacturer	Eaton Corporation
Product Name	2-Port Dual Monitor DVI KVM Switch TAA, GSA with Audio and USB 2.0 Hub, Cables included
Product Type	KVM Switchbox
USB Standard	USB 2.0
Input Voltage	220 V AC
Product Color	Black
Product Model	B004-2DUA2-K
TAA Compliant	Yes
Network (RJ-45)	Yes

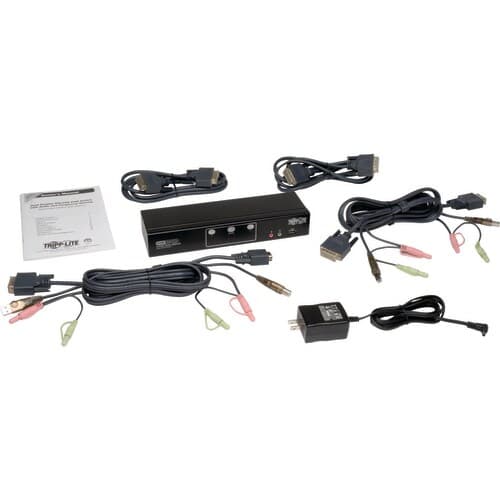

Package Contents	<ul><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>2-Port Dual Monitor DVI KVM Switch TAA, GSA with Audio and USB 2.0 Hub, Cables included</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>2 x 6-ft. (1.83 m) DVI-D Dual Link / USB KVM Cable Kits</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>2 x 6-ft. (1.83 m) DVI-D Dual Link Cables</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A Output: 5.3V, 2.4A)</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Owner's Manual</li></ul>
Country of Origin	Taiwan
Platform Supported	Sun
Input Voltage Range	100-240V
Number of DVI Ports	6
Number of USB Ports	6
Weight (Approximate)	1.23 lb
Connectivity Technology	Wired
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Manufacturer Part Number	B0042DUA2K
Maximum Video Resolution	2560 x 1600
Certifications & Standards	<ul><li>CE</li><li>FCC</li><li>TAA</li></ul>
Manufacturer Website Address	http://www.eaton.com
Maximum Operating Temperature	122°F (50°C)
Minimum Operating Temperature	32°F (0°C)
Number of Computers Supported	2
Number of Local Users Supported	1
Number of Network (RJ-45) Ports	1
