1PORT USB 2.0 OVER CAT5/CAT6 EXTENDER TRANSMITTER RECEIVER

SKU: YE3774VPN: B203-101-PNP

In Stock

$242.00$143.72

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Extends USB data transfer up to 164 ft. over Cat5/Cat6 cable

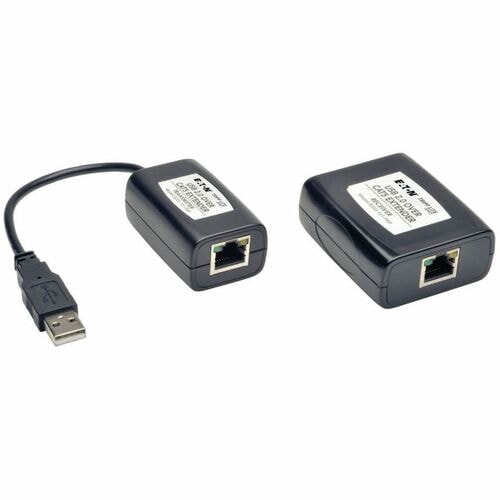

Includes a transmitter with USB cable and a 1-port receiver
Supports data transfer rates up to 480 Mbps
Plug-and-play functionality; no software or drivers required
Works with Windows®, Mac® and Chromebook™ computers

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Tripp Lite's B203-101-PNP 1-Port Plug-and-Play USB 2.0 over Cat5/Cat6 Extender Kit transmits data from your computer to a USB 2.0 peripheral up to 164 ft. (50 m) away. It has plug-and-play functionality, meaning you don't have to install drivers or software. For added convenience, the transmitter has a built-in USB A/B cable for connection to your computer. The USB signals travel between the transmitter and receiver units over user-supplied Cat5/Cat6 cable. It's a simple, cost-effective solution for connecting your computer to a printer or other USB peripheral that lacks network connectivity and is farther than 16 feet away from your computer, which is the distance limitation for USB cables. For example, you can use the B203-101-PNP to connect an impact printer to a server in another room. This extender kit is also convenient for making connections in areas without network availability.

Tech Specs

1PORT USB 2.0 OVER CAT5/CAT6 EXTENDER TRANSMITTER RECEIVER specifications
Brand Name	Tripp Lite series
Manufacturer	Eaton Corporation
Product Name	B203-101-PNP USB Extender
Product Type	USB Extender
Product Model	B203-101-PNP
TAA Compliant	Yes

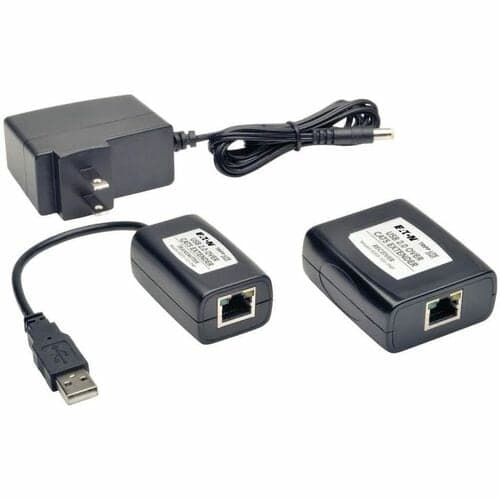

Package Contents	<ul> <li>B203-101-PNP local transmitter with built-in USB Cable</li> <li>B203-101-PNP 1-port remote receiver</li> <li>External power supply for receiver (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 2A)</li> <li>Owner's Manual</li> </ul>
Country of Origin	Taiwan
Additional Information	<ul><li>Connect a Hi-Speed USB 2.0 device up to 164 ft. ( 50m ) from your computer</li><li>Uses readily available Cat5/Cat6 cable</li><li>Supports Hi-Speed data transfer rates up to 480Mbps</li><li>Plug and Play...no Drivers or Software required</li><li>Compatible with Windows and Mac</li><li>Backwards compatible with USB 1.1</li><li>Before using with a touchscreen monitor, first confirm with the monitor manufacturer that USB 2.0 over Cat5 extenders are supported</li></ul>
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	B203-101-PNP
