15U WALL MOUNT RACK ENCLOSURE SERVER CABINET HINGED ACRYLIC DOOR
15U WALL MOUNT RACK ENCLOSURE SERVER CABINET HINGED ACRYLIC DOOR
Key Features
- Maximum load capacity of 200 lb.
- Swings away from wall bracket on a hinge for easy access
- Front door includes shatter-resistant clear acrylic window
- Locking steel cabinet vented at sides, top and bottom
- Secures 15U of 19 in. rack equipment up to 20.5 in. deep
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

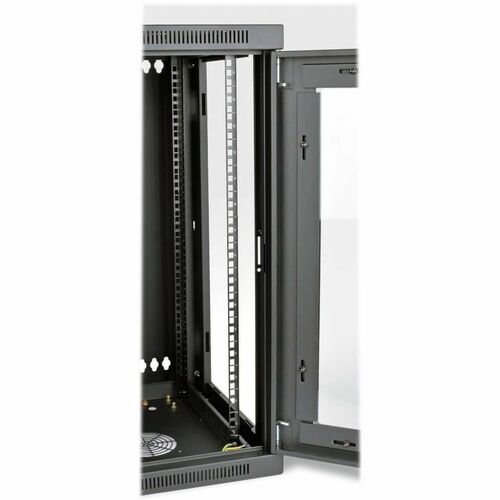

The SRW15USG SmartRack 15U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is ideal for storing EIA-standard 19-inch rack equipment in network closets and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.
The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.
The cabinet swings away from the wall on a sturdy hinge, allowing easy access to equipment and cabling during installation and maintenance. To ensure your valuable equipment stays secure, the doors and side panels lock. The top, bottom and removable side panels are vented, which allows air to flow freely through the rack to keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing through the cabinet.
The SRW15USG comes fully assembled and ready to mount to the wall. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to house equipment up to 20.5 inches deep, such as network switches and patch panels.
Tech Specs
| Depth | 21.6" |
|---|---|
| Width | 23.6" |
| Height | 30.3" |
| Brand Name | Tripp Lite series |
| Rack Depth | 10.42" |
| Rack Width | 19" |
| Form Factor | Wall Mountable |
| Rack Height | 15U |
| Color Family | Black |
| Manufacturer | Eaton Corporation |
| Product Line | SmartRack |
| Product Name | SRW15USG SmartRack 15U Low-Profile Switch-Depth WallMount Rack Enclosure Cabinet |
Show all 28 specsShow fewer
| Product Type | Rack Cabinet |
|---|---|
| Product Color | Black Powder Coat |
| Product Model | SRW15USG |
| Product Family | SmartRack |
| Package Contents | <ul> <li>SRW15USG SmartRack 15U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet</li> <li>20 x M6 Screws</li> <li>20 x M6 Cage Nuts</li> <li>20 x M6 Washers</li> <li>20 x 12-24 Screws</li> <li>2 x Keys</li> <li>Owner's Manual</li> </ul> |
| Product Material | Steel |
| Application/Usage | Patch Panel |
| Assembly Required | No |
| Country of Origin | China |
| Weight (Approximate) | 88.20 lb |
| Maximum Weight Capacity | 200 lb |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | SRW15USG |
| Manufacturer Website Address | http://www.eaton.com |
| Static/Stationary Weight Capacity | 200 lb |
