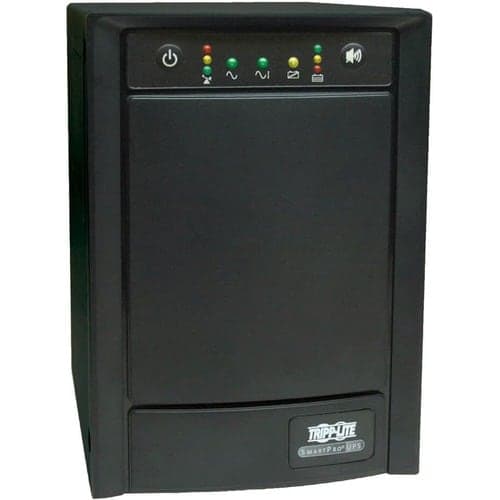

EATON TRIPP LITE SERIES MASTER-POWE

UPS SMART 750VA 500WAVR 120V 8OUT TOWER USB DB9 TEL/DSL SNMP

SKU: G43617VPN: SMART750SLT

UPS SMART 750VA 500WAVR 120V 8OUT TOWER USB DB9 TEL/DSL SNMP

Key Features

  • 750VA line interactive tower UPS; Sine wave output
  • 100/110/120V nominal output during brownouts and overvoltages
  • USB, RS232 and optional SNMP/Web card are available for simultaneous use
  • Detailed status LEDs; Single line TEL / DSL surge suppression
  • NEMA 5-15P input; 8 NEMA 5-15R outlets
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Tripp Lite's SMART750SLT intelligent, line-interactive sine wave UPS system protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 15 minutes half load runtime and 5 minutes fully loaded. 750VA/500 watt power handling capability and full-time sine wave output offers guaranteed compatibility with networking, telecom and other sensitive electronic applications. Includes 8 protected NEMA 5-15R output receptacles total, 4 of which offer surge suppression-only for less critical desktop accessories. Supports simultaneous remote monitoring of UPS and site power conditions via built-in network accessory card slot, USB and DB9 serial monitoring ports. Communications interfaces support messaging of UPS and line power status, plus output power control for delayed or immediate reboot of all connected devices at once. PowerAlert UPS monitoring software is available via free download. Built-in audible alarm and LEDs offer status notification for line power, battery power, battery charge level, load level, plus AVR boost and trim operational status information. Network grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges. Also includes single line TEL/DSL or Ethernet line surge suppression. Attractive, all-black tower housing.

Tech Specs

UPS SMART 750VA 500WAVR 120V 8OUT TOWER USB DB9 TEL/DSL SNMP specifications
USBYes
Depth13.2"
PhaseSingle Phase
Width6.8"
Height10.2"
Brand NameTripp Lite series
Form FactorTower
Serial PortYes
ManufacturerEaton Corporation
Product LineSmartPro
Product NameSmartPro SMART750SLT 750VA Tower UPS
Product TypeLine-interactive UPS
Show all 38 specs
Hot SwappableYes
Input Voltage120 V AC
Product ModelSMART750SLT
Transfer Time8 ms
Waveform TypeSine Wave
Output Voltage120 V AC
Product FamilySmartPro
Receptacle TypeNEMA 5-15R
Package Contents<ul><li>SMART750SLT LINE-INTERACTIVE UPS</li><li>SMART750SLT UPS System</li><li>PowerAlert Software CD-Rom</li><li>USB and serial cabling</li><li>User manual with warranty information</li></ul>
Application/UsageTelecommunication
Country of OriginChina
Receptacle Detail8 x NEMA 5-15R
Software IncludedPowerAlert Software
Load Capacity (VA)750 VA
Network ManagementSNMP Manageable
Dataline ProtectionRJ-45
Plug/Connector TypeNEMA 5-15P
Load Capacity (Watt)500 W
Weight (Approximate)34.10 lb
Additional Information<ul><li>Ideal for the protection of network fileservers, internetworking gear, switches, hubs, POS terminals, VOIP telephony and traditional PBX switching systems, back office computer systems, ATM machines, informational/internet/commerce kiosks, remote unattended servers, web servers, database servers, security systems, card readers, security cameras and other sensitive electronic devices requiring clean, continuously-regulated output power</li><li>Switches: Includes 2 front panel mounted switches; power on switch and power off switch</li><li>Low voltage transfer to battery power: Switches to battery power as line voltage decreases to 83 volts or less</li><li>High voltage transfer to battery power: Switches to battery power as line voltage increases to 145 volts or higher</li></ul>
Manufacturer Part NumberSMART750SLT
Certifications & StandardsUL1778 (USA), cUL (Canada), Class B (emissions), RoHS-Compliant, FCC Part 68 / Industry Canada (telecommunications)
Backup/Run Time (Full Load)6.50 Minute
Backup/Run Time (Half Load)20 Minute
Manufacturer Website Addresshttp://www.eaton.com
Typical Battery Recharge Time8 Hour
