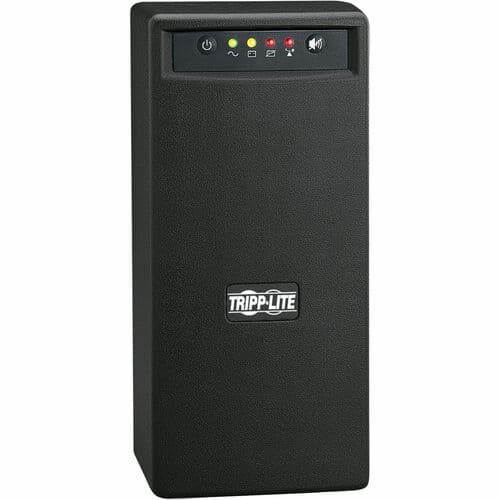

UPS SMART 750VA 450W USB 120V 6OUT TOWERAVR TEL/DSL/ENET 5-15R

SKU: C80754VPN: SMART750USB

In Stock

$348.00$206.66

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

750VA tower 120V line interactive UPS
Corrects brownouts as low as 89V without using battery power

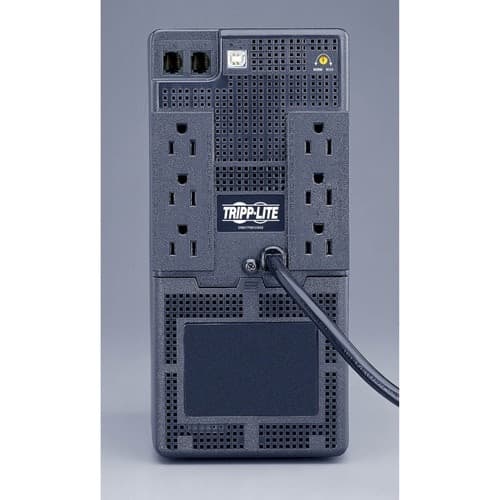

3 UPS battery supported outlets, 3 surge-only outlets
USB port, TEL/DSL/ethernet protection
NEMA 5-15P input plug and 6 NEMA 5-15R outlets

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Line Interactive UPS system with six outlets offers voltage regulation, surge suppression and long-lasting battery support for personal computers, networking equipment and other sensitive electronics. Internal UPS circuits support entry level PC systems for up to 45 minutes during power failures so that connected equipment can be shutdown without data loss. A USB port (cable included) provides power management and unattended shutdown when used with PowerAlert Software (website download). Automatic voltage regulation corrects brownouts as low as 83V. Includes six outlets (three UPS/three surge-only). Built-in dataline protection jacks offer protection of a single dialup phone/DSL line or network Ethernet connection. Offers 3-minute battery runtime with a full load of 750VA/450 watts and 11 minutes with a half load of 375VA/225 watts. Supports battery replacement via built-in access panel.

Tech Specs

UPS SMART 750VA 450W USB 120V 6OUT TOWERAVR TEL/DSL/ENET 5-15R specifications
USB	Yes
Alarm	On Battery
Depth	7.5"
Width	5.5"
Height	11"
Recycled	No
Brand Name	Tripp Lite series
Cord Length	6 ft
Form Factor	Tower
Battery Life	6 Year
Color Family	Black
Manufacturer	Eaton Corporation

Show all 46 specs

Product Line	SmartPro
Product Name	SmartPro 750VA SMART750USB UPS
Product Type	Line-interactive UPS
Input Voltage	120 V AC
Product Color	Black
Transfer Time	4 ms
Waveform Type	Pulse-width Modulated Sine Wave
Output Voltage	120 V AC
Product Family	SmartPro
Protection Type	Surge
Receptacle Type	NEMA 5-15R
Package Contents	<ul><li>SMART750USB Standby UPS System</li><li>USB and telephone interconnection cables</li><li>Instruction manual with warranty information</li></ul>
Assembly Required	No
Battery Chemistry	Lead Acid
Country of Origin	China
Packaged Quantity	1 Each
Receptacle Detail	6 x NEMA 5-15R
Software Included	PowerAlert Software
Status Indicators	4 LEDs indicate performance conditions: GREEN "online" / GREEN "voltage regulation enabled" / RED "on battery" / YELLOW "battery low/replace"
Load Capacity (VA)	750 VA
Dataline Protection	RJ-45
Plug/Connector Type	NEMA 5-15P
Surge Energy Rating	510 J
Load Capacity (Watt)	450 W
Weight (Approximate)	17.40 lb
Additional Information	<ul><li>SMART750USB line-interactive UPS system offers extended voltage regulation (AVR) and battery support as well as complete AC and dialup/DSL/ethernet line surge suppression</li><li>Supports entry level PC systems for up to 45 minutes during power failures to enable a safe system shutdown</li><li>Supports a max load of 750VA/450 watts for 5 minutes and a half load of 375VA/225 watts for 17 minutes</li><li>Automatic Voltage Regulation (AVR) circuits correct brownouts as low as 83 volts without using battery power</li><li>Attractive black tower configuration</li><li>Includes 3 battery-supported outlets, plus 3 additional surge-only outlets, 6 foot AC line cord (all NEMA 5-15)</li><li>USB port enables unattended shutdown without data loss during extended power failures; includes USB cable</li><li>Built-in USB port supports on battery, low battery, power restored, AC line voltage, DC battery voltage and battery capacity messaging; interface supports timed inverter shutoff after unattended shutdown, activate self-test and 10 second reboot of connected equipment</li><li>PowerAlert UPS monitoring and unattended shutdown software available via free download from www.tripplite.com</li><li>Supports Tripp Lite's WatchDog software application to restore unresponsive programs by automatically restarting them and rebooting completely locked computers by automatically switching UPS power off and back on again (part #WATCHDOGSW)</li><li>Built-in dataline suppression jacks protect a single dialup phone / DSL line or network Ethernet line connection</li><li>Built-in audible alarm and 4 front panel LEDs indicate UPS system and line power status</li><li>750VA / 450 watt power handling ability supports a variety of computer, internetworking, telecom and consumer electronics equipment</li><li>Supports battery replacement via built-in access panel</li><li>Compatible with 120V / 60Hz applications for USA, Canada, Mexico and more</li><li>2 year manufacturer's warranty</li><li>$200,000 Ultimate Lifetime Insurance (USA & Canada Only)</li></ul>
Manufacturer Part Number	SMART750USB
Certifications & Standards	UL1778 (USA), cUL (Canada), FCC Class B (emissions), NOM (Mexico), FCC Part 68 / Industry Canada (Telecommunications), Conforms to IEEE 587 / ANSI C62.41 specifications
Backup/Run Time (Full Load)	3 Minute
Backup/Run Time (Half Load)	11 Minute
Manufacturer Website Address	http://www.eaton.com
Maximum Operating Temperature	122°F (50°C)
Typical Battery Recharge Time	4 Hour
Additional Warranty Information	<p>2 year warranty. $200,000 connected equipment insurance (USA & Canada Only).</p>
