EATON TRIPP LITE SERIES MASTER-POWE

UPS SMART 5000VA 3750WAVR 3URM 208 120V 11OUT USB DB9 EXT RUN

SKU: F35001VPN: SMART5000XFMRXL

UPS SMART 5000VA 3750WAVR 3URM 208 120V 11OUT USB DB9 EXT RUN

Key Features

  • 5kVA / 5000VA line interactive 3U rack/tower UPS; Sine wave output
  • 208 & 120V output during brownouts to 167 and overvoltages to 260V
  • USB, Serial, EPO & optional SNMP/Web card monitoring options
  • 3U all-in-one chassis; 8 single-outlet switched load banks; 97% efficiency

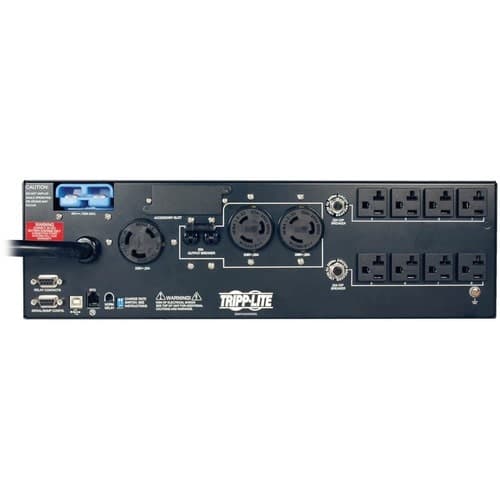

  • NEMA L6-30P input; 8 NEMA 5-15/20R, 2 L6-20R & 1 L6-30R outlets
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Tripp Lite 5kVA Smart RM UPS. 5000VA line-interactive UPS for server, network and telecommunications equipment. UPS with internal batteries requires 3 rack spaces installed. Accepts 208V nominal input voltage. Simultaneous 208 & 120V output. Corrects brownouts and overvoltages from 167V to 260V. Sine wave output. Maintains battery-derived AC output during blackouts and severe voltage fluctuations. Expandable runtime with optional external battery packs. 11 output receptacles. NEMA L6-30P input connection with support for user-supplied 50A or hardwire input. Network-grade AC surge and noise suppression. Network management interfaces include USB, DB9 serial and SNMPWEBCARD slot. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all network interfaces simultaneously. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. Integrated 8-bank switched PDU. 3-stage metered current monitoring and battery charge LEDs. Utility power and voltage regulation LEDs. Audible alarm. Self-test. 4-post rack mounting accessories included; 2-9USTAND and 2POSTRMKITWM accessories available. Field-replaceable, hot-swappable internal batteries and battery packs.

Tech Specs

UPS SMART 5000VA 3750WAVR 3URM 208 120V 11OUT USB DB9 EXT RUN specifications
USBYes
Depth25"
Width17.5"
Height5.3"
Brand NameTripp Lite series
Form FactorTower
Rack Height3U
Serial PortYes
ManufacturerEaton Corporation
Product LineSmartPro
Product NameSmartPro Series SMART5000XFMRXL 5000VA Tower/Rack Mountable UPS
Product TypeLine-interactive UPS
Show all 42 specs
Hot SwappableYes
Input Current27 A
Input Voltage208 V AC
Modem (RJ-11)Yes
Product ModelSMART5000XFMRXL
TAA CompliantYes
Transfer Time4 ms
Output Voltage208 V AC
Product FamilySmartPro
Receptacle TypeNEMA 5-15/20R

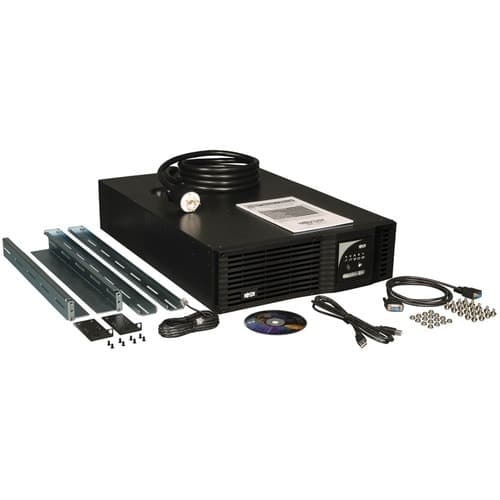

Package Contents<ul><li>SmartPro Series SMART5000XFMRXL 5000VA Tower/Rack Mountable UPS</li><li>SMART 5000XFMRXL UPS System</li><li>PowerAlert Software and Cabling</li><li>Mounting hardware for 4-post rackmount installation</li><li>Warranty information</li><li>Instruction manual</li></ul>
Battery ChemistryLead Acid
Country of OriginTaiwan
Receptacle Detail1 x NEMA L6-30R
Software IncludedPowerAlert UPS Monitoring Software
Load Capacity (VA)5000 VA
Network ManagementSNMP Manageable
Emergency Power OFFYes

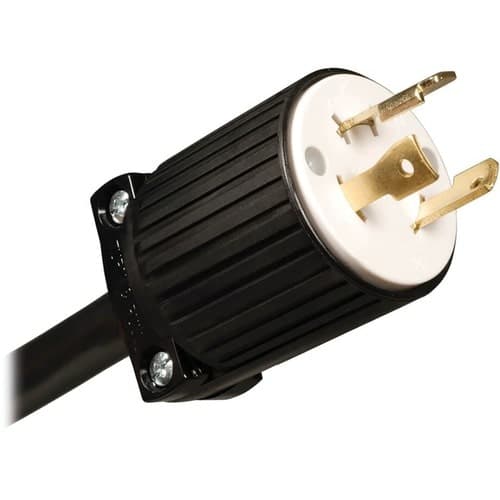

Plug/Connector TypeNEMA L6-30P
Load Capacity (Watt)3750 W
Weight (Approximate)143.30 lb
Additional Information<ul><li>Line Mode: Sine wave line voltage 208V & 120V (+/-10%)</li><li>Battery Mode: 208V & 120V (+/-5%)</li></ul>
Battery CharacteristicsMaintenance-free
Manufacturer Part NumberSMART5000XFMRXL
Certifications & Standards<ul><li>Tested to UL1778 (USA)</li><li>CSA C22.2 No. 107.3 (Canada)</li><li>NOM (Mexico)</li><li>Class A (emissions)</li></ul>
Backup/Run Time (Full Load)8.50 Minute
Backup/Run Time (Half Load)20 Minute
Manufacturer Website Addresshttp://www.eaton.com
Typical Battery Recharge Time4 Hour
Total Number of Expansion Slots1
