EATON TRIPP LITE SERIES MASTER-POWE

UPS SMART 3000VA 2400WAVR 8OUT TOWER 3 DB9 EXTENDED RUN

SKU: 100D81VPN: SMART3000NET

UPS SMART 3000VA 2400WAVR 8OUT TOWER 3 DB9 EXTENDED RUN

Key Features

  • 3kVA / 3000VA / 2400W line interactive, extended-run tower UPS
  • 120V output, Corrects brownouts and overvoltages from 87V to 140V
  • 3 DB9 ports (1 RS232 / 2 contact-closure)
  • Front panel status LEDs with load and battery capacity display
  • 2 independently switchable output load banks

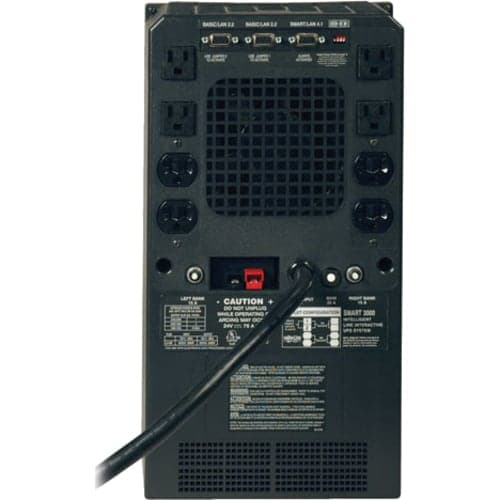

  • NEMA L5-30P input; 4 NEMA 5-15/20R & 4 NEMA 5-15R outlets
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

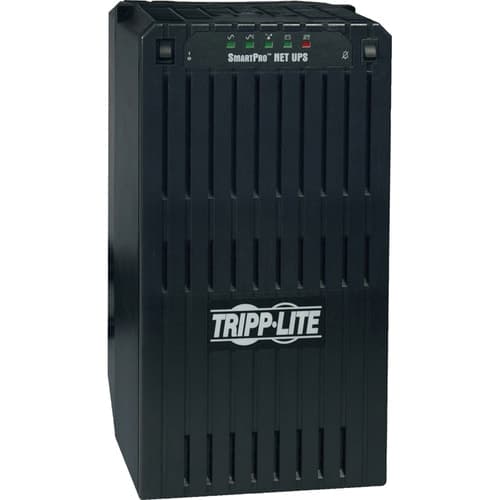

Tripp Lite's SMART3000NET intelligent, line interactive large tower UPS system protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 23 minutes half load runtime and 7 minutes fully loaded. Runtime is expandable with optional BP24V33 external battery packs. 3000VA / 2400 watt power handling capability supports a variety of networking, telecom and other sensitive electronic applications. Includes 8 protected outlets. Supports remote monitoring of UPS and site power conditions via built-in RS-232 enabled monitoring port, plus standard UPS monitoring via 2 built in contact closure ports. Includes PowerAlert UPS monitoring and unattended shutdown software with complete cabling. Supports SNMP with optional external SNMPWEBSOLO adapter. Built-in audible alarm and front panel LEDs indicate line power, battery power, battery charge level, load level, plus voltage regulation status. Network grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges. Attractive large gray tower housing. Two year warranty with $250,000 connected equipment insurance.

Tech Specs

UPS SMART 3000VA 2400WAVR 8OUT TOWER 3 DB9 EXTENDED RUN specifications
AlarmOn Battery
Depth13"
Width9"
Height17"
Brand NameTripp Lite series
Cord Length8 ft
Form FactorTower
Battery Life6 Year
ManufacturerEaton Corporation
Product LineSmartPro
Product NameSmartPro 3000NET UPS
Product TypeLine-interactive UPS
Show all 35 specs
Input Voltage120 V AC
Transfer Time4 ms
Output Voltage120 V AC
Product FamilySmartPro
Receptacle TypeNEMA 5-20R
Package Contents<ul><li>SmartPro 3000NET UPS</li><li>SMART 3000NET UPS System</li><li>PowerAlert Software and three 6 foot network cables</li><li>Warranty information</li><li>Instruction manual</li></ul>
Battery ChemistryLead Acid
Country of OriginChina
Receptacle Detail4 x NEMA 5-20R
Status IndicatorsIncludes 5 front panel LEDs to indicate BATTERY CHARGE LEVEL, AC LINE POWER STATUS, VOLTAGE REGULATION STATUS, UPS LOAD LEVEL and BATTERY LOW / REPLACE information
Load Capacity (VA)3000 VA
Network ManagementSNMP Manageable
Plug/Connector TypeNEMA L5-30P
Load Capacity (Watt)2400 W
Weight (Approximate)80 lb
Additional Information<ul><li>SMART3000NET line interactive UPS offers battery derived AC output during power outages, voltage regulation during brownouts and overvoltages, plus network-grade AC surge suppression</li><li>3000VA / 2400 watt power handling capability supports a variety of networking, telecom and other sensitive electronic devices</li><li>Large internal batteries offer runtimes of 23 minutes at half load (1500VA / 1200 watts) and 7 minutes at full load (3000VA / 2400 watts)</li><li>Runtime is further expandable with optional external BP24V33 battery packs</li><li>Automatic Voltage Regulation (AVR) circuits maintain 120V nominal output over an input voltage range of 87-140V</li><li>Includes 8 fully protected outlets (4 NEMA 5-15R & 4 NEMA 5-15/20R) with 2 single outlet load banks that can be individually powered off and back on again via software interface</li><li>PowerAlert UPS monitoring and unattended shutdown software enables configurable network broadcast messaging, pager & email notification, event logging and running user defined script commands</li><li>Offers simultaneous monitoring of up to 3 directly connected devices through included DB9 contact closure and RS-232 enabled interfaces, or the monitoring of any number of additional servers over IP with included PowerAlert monitoring software</li><li>In addition to the contact closure monitoring of on battery, low battery and power restored messaging, built-in RS-232 interface supports messaging of UPS and line power status, including AC line voltage, DC battery voltage and remaining battery capacity</li><li>Supports activate self-test and UPS output power control for scheduled or immediate reboot of connected equipment</li><li>Diagnostic LEDs (indicate 17 performance conditions)</li><li>UL (USA), cUL (Canada), NOM (Mexico), FCC Class B (Residential) Listed</li><li>$250,000 Ultimate Lifetime Insurance (USA & Canada Only)</li></ul>
Manufacturer Part NumberSMART3000NET
Certifications & StandardsUL1778 (USA), cUL (Canada), FCC Class A (emissions), NOM (Mexico), Conforms to IEEE 587 / ANSI C62.41 specifications
Backup/Run Time (Full Load)7 Minute
Backup/Run Time (Half Load)23 Minute
Manufacturer Website Addresshttp://www.eaton.com
Maximum Operating Temperature104°F (40°C)
Typical Battery Recharge Time4 Hour
