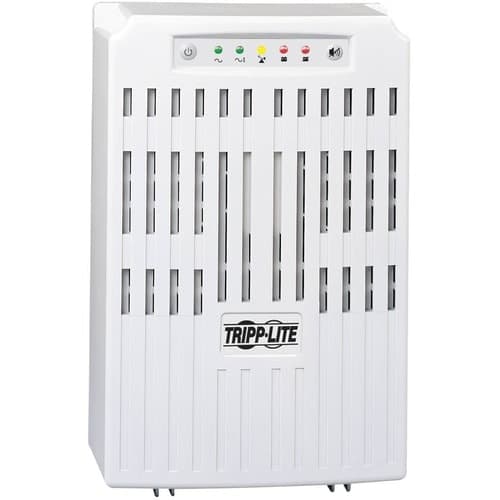

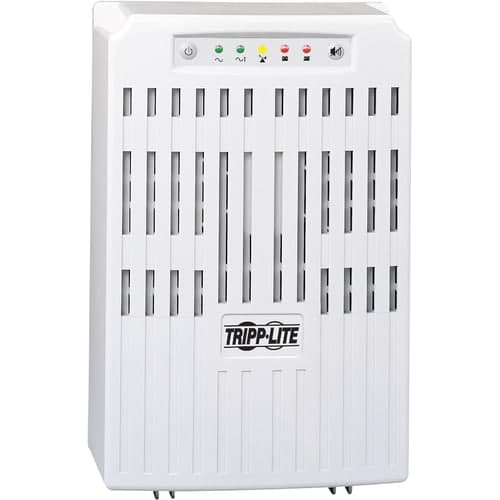

UPS SMART 2200VA 1600WAVR 120V 9OUT TOWER USB DB9 RS232 EPO

SKU: C44243VPN: SMART2200VS

In Stock

$1,967.00$1,131.26

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

2.2kVA / 2200VA line interactive tower UPS system
120V nominal output during brownouts to 79V and overvoltages to 147V
Front panel status LEDs with load and battery capacity level display
USB, RS232, EPO and optional SNMP/Web card are available for simultaneous use
NEMA 5-20P input; 2 NEMA 5-15/20R & 7 5-15R outlets

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Tripp Lite's SMART 2200VS intelligent, line interactive UPS protects server, networking and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Small footprint, tower UPS system occupies only 106 square inches of floor space with a height of only 14.25 inches. Large capacity 2200 VA/ 1600 watt rated UPS system offers 7 minutes runtime at full load and 19 minutes at half load during power failures. Line interactive voltage regulation corrects brownouts as low as 79V and overvoltages as high as 147V to fully regulated 120V nominal output for smooth continuous operation of connected equipment. Includes a total of 9 outlets, 3 pairs of which can be individually powered off and back on via software interface to selectively reboot remote equipment or shed less critical loads to extend battery runtime for more critical loads. Includes 2 DB9 and 2 USB enhanced monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. Ships in attractive gray color scheme. Compatible with Tripp Lite's PowerAlert and Watchdog service software.

Tech Specs

UPS SMART 2200VA 1600WAVR 120V 9OUT TOWER USB DB9 RS232 EPO specifications
USB	Yes
Alarm	Overload
Depth	12"
Width	9.3"
Height	14.3"
Brand Name	Tripp Lite series
Cord Length	8 ft
Form Factor	Tower
Battery Life	6 Year
Manufacturer	Eaton Corporation
Product Line	SmartPro
Product Name	SmartPro SMART2200VS UPS

Show all 39 specs

Product Type	Line-interactive UPS
Hot Swappable	Yes
Input Voltage	120 V AC
Transfer Time	4 ms
Output Voltage	120 V AC
Product Family	SmartPro
Receptacle Type	NEMA 5-15R
Package Contents	<ul><li>SmartPro SMART2200VS UPS</li><li>SMART 2200VS UPS System, PowerAlert Software and cabling, Warranty information, Instruction manual</li></ul>
Battery Chemistry	Lead Acid
Country of Origin	China
Receptacle Detail	2 x NEMA 5-20R
Status Indicators	Includes 5 front panel LEDs to indicate BATTERY CHARGE LEVEL, AC LINE POWER STATUS, VOLTAGE REGULATION STATUS, UPS LOAD LEVEL and BATTERY LOW / REPLACE information
Load Capacity (VA)	2200 VA
Network Management	SNMP Manageable
Emergency Power OFF	Yes
Plug/Connector Type	NEMA 5-20P
Load Capacity (Watt)	1600 W
Weight (Approximate)	52.40 lb
Additional Information	<ul><li>2200VA / 1600 watt output capacity accommodates a variety of server, networking and telecom devices</li><li>High power density 2.2kVA UPS system occupies only 106 square inches of floorspace with a height of only 14.25 inches</li><li>Compatible with North American 120V / 60 Hz power as found in the USA, Canada and Mexico</li><li>Offers 7 minutes runtime with a full load of 2200VA and 19 minutes with a half load of 1100VA</li><li>Line interactive voltage regulation corrects severe brownouts and overvoltages from 79 to 147v back to normal 120v levels without using battery power</li><li>9 total outlets (7 NEMA5-15R; 2 NEMA5-15/20R)</li><li>Includes NEMA 5-20 straight blade 20 amp input plug connection; package includes optional user installable NEMA 5-15 input plug connection</li><li>Notification of system status via 5 LEDs and multi-function audible alarms</li><li>Included PowerAlert Software provides e-mail or pager notification of power problems and the simultaneous automatic unattended shutdown of multiple servers</li><li>4 built-in communications ports (2-DB9, 2-USB) for remote monitoring and unattended shutdown</li><li>Slot for SNMP/web card (part#: SNMPWEBCARD) and environmental sensor (part#: ENVIROSENSE) for remote communications in large IP environments</li><li>Supports Tripp Lite's WatchDog software application to restore unresponsive programs by automatically restarting them and rebooting completely locked computers by automatically switching UPS power off and back on again</li><li>Communication ports support on battery, low battery, power restored, AC line voltage, DC battery voltage, load percentage, battery charge current, battery capacity, internal UPS temperature and line frequency status messaging. Interface supports timed inverter shutoff after unattended shutdown, activate self-test and 10 second reboot of connected equipment</li><li>3 pairs of customized load management receptacles can be individually powered off and back on again via software interface to reboot remote equipment or automatic "load shedding" of less critical loads to extend battery runtime for the most critical equipment</li><li>Built-in Emergency Power Off (EPO) interface supports emergency shutoff in large facilities</li><li>Hot-swappable / user replaceable batteries allow on-site battery replacement through the front panel without powering off connected equipment or removing the UPS from the rack</li><li>UPS battery set ships fully assembled and ready for use, no time consuming, connection of individual internal batteries by user is necessary</li><li>UL (USA), cUL (Canada), NOM (Mexico), FCC Class A</li><li>$250,000 Ultimate Lifetime Insurance. No warranty cards required for coverage!</li><li>2 year manufacturers product warranty</li></ul>
Manufacturer Part Number	SMART2200VS
Certifications & Standards	UL1778 (USA), cUL (Canada), FCC Class A (emissions), NOM (Mexico), Conforms to IEEE 587 / ANSI C62.41 specifications
Backup/Run Time (Full Load)	7 Minute
Backup/Run Time (Half Load)	19 Minute
Manufacturer Website Address	http://www.eaton.com
Maximum Operating Temperature	104°F (40°C)
Typical Battery Recharge Time	4 Hour
Total Number of Expansion Slots	1
