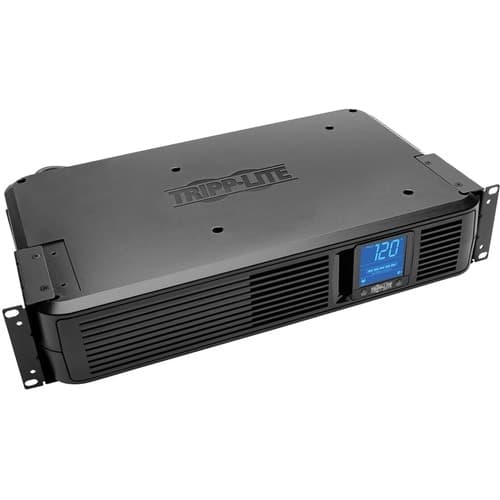

UPS SMART 1500VA 900W LCD 120V 8OUTLET RACK TOWER 2UAVR USB DB9
UPS SMART 1500VA 900W LCD 120V 8OUTLET RACK TOWER 2UAVR USB DB9
Key Features
- Provides reliable 1500VA/900W power protection with expandable runtime for your desktop computer, network workstation, audio/video components or media center. Protects against surges, line noise, blackouts and brownouts.
- Supports a half-load (450W) up to 12 min. during power outage
- Supports a full load (900W) up to 4 min. during power outage
- Features 8 protected NEMA 5-15R outlets
- Offers automatic voltage regulation (AVR)
- Extends runtime with optional BP24V15RT2U external battery pack
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
The SMART1500LCDXL SmartPro LCD 120V, 1500VA/900W Line-Interactive Uninterruptible Power Supply provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up your desktop computer or audio/visual components, this line-interactive UPS switches to battery backup mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss. Eight NEMA 5-15R outlets protect against surges, as well as provide up to 12 minutes of UPS battery support at half-load (450W) and 4.18 minutes of support at full load (900W). You can get even more runtime by connecting an optional BP24V15RT2U external battery pack. Automatic voltage regulation (AVR) corrects severe undervoltages as low as 75V and overvoltages as high as 147V without using any battery power. EMI/RFI noise filtering improves your equipment's performance and prevents damage. A 1038-joule surge suppression rating protects your equipment from harmful power surges. Space-saving NEMA 5-15P right-angle plug with 6-ft. (1.83 m) cord connects to any NEMA 5-15R socket. Large rotatable LCD screen shows real-time input voltage, load, AVR, remaining battery runtime and battery statuses at a glance. With Tripp Lite's PowerAlert software (available via free download), the SMART1500LCDXL enables safe unattended system shutdown and file saves in case of a prolonged power failure.
Reliable Battery Backup
- Provides 1500VA/900W high-performance power protection for desktop computers, audio/video components, media centers and other electronics
- Supports 50% load (450W) up to 12 minutes and full load (900W) up to 4.18 minutes
- 97% full-load efficiency rating saves money in energy costs
- Audible alarm indicates loss of utility power, low battery and overload conditions
- Optional BP24V15RT2U external battery pack easily connects for expanded runtime

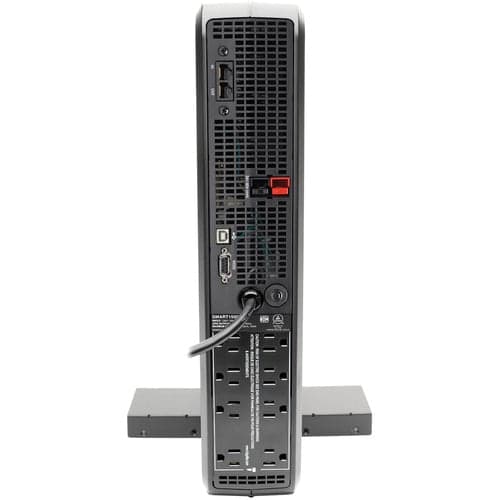

- 8 NEMA 5-15R outlets provide battery backup and protect against surges or spikes that can harm equipment or data
- Corrects undervoltages as low as 75V and overvoltages as high as 147V without drawing battery backup power
- Large LCD screen shows real-time input voltage, load, AVR and battery statuses
- Automatically displays remaining battery runtime in minutes during power outage

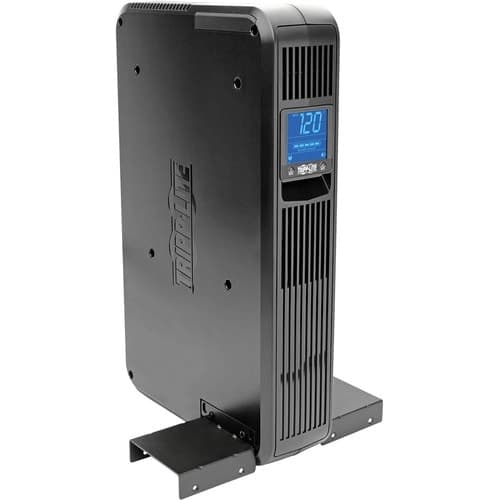

- Rotates for easy viewing in both horizontal and vertical installations
- Brightness control offers bright and dim selection options
- Surge suppression rating of 1038 joules protects connected equipment and data from harmful power surges
- Built-in RJ-45 jacks protect single-line tel/DSL or network Ethernet connection
- Removes electromagnetic and radio frequency interference that can disrupt or damage your equipment's performance
Tech Specs
| USB | Yes |
|---|---|
| Depth | 10.5" |
| Width | 17.3" |
| Height | 3.5" |
| Brand Name | Tripp Lite series |
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Serial Port | Yes |
| Manufacturer | Eaton Corporation |
| Product Name | Smart LCD SMART1500LCDXL 1500 VA Tower/Rack Mountable UPS |
| Product Type | Line-interactive UPS |
| Input Voltage | 110 V AC |
Show all 31 specsShow fewer
| Product Model | SMART1500LCDXL |
|---|---|
| Transfer Time | 4 ms |
| Output Voltage | 120 V AC |
| Receptacle Type | NEMA 5-15R |
| Package Contents | <ul><li>Smart LCD SMART1500LCDXL 1500 VA Tower/Rack Mountable UPS</li><li>USB Cable</li><li>Serial Cable</li><li>Phone Cable</li><li>Rack/Tower Mounting Kit</li><li>Owner's Manual</li></ul> |
| Country of Origin | Taiwan |
| Receptacle Detail | 8 x NEMA 5-15R |
| Load Capacity (VA) | 1500 VA |
| Plug/Connector Type | NEMA 5-15P |
| Load Capacity (Watt) | 900 W |
| Weight (Approximate) | 29.40 lb |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | SMART1500LCDXL |
| Certifications & Standards | <ul><li>UL1778</li><li>FCC Part 15 Category B (EMI)</li></ul> |
| Backup/Run Time (Full Load) | 4 Minute |
| Backup/Run Time (Half Load) | 12 Minute |
| Manufacturer Website Address | http://www.eaton.com |
| Typical Battery Recharge Time | 4.50 Hour |
