EATON TRIPP LITE SERIES MASTER-POWE

UPS SMART 1500VA 1000WAVR 120V 8OUT 2URM LCD USB DB9 RS232 EPO

SKU: ZL8429VPN: SMC15002URM

UPS SMART 1500VA 1000WAVR 120V 8OUT 2URM LCD USB DB9 RS232 EPO

Key Features

  • Corrects under- and overvoltages from 83V to 147V
  • 8 NEMA 5-15R outlets
  • Monitoring of power conditions via POWERALERT12

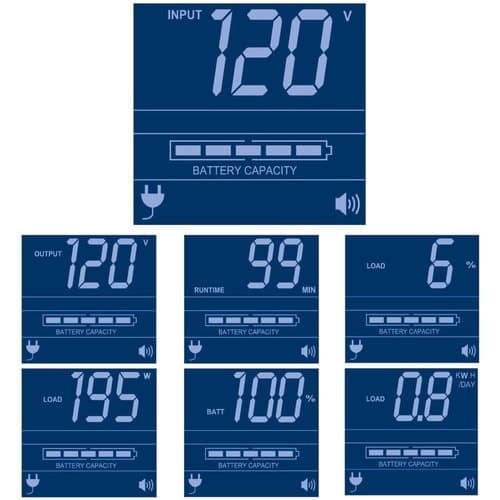

  • Interactive LCD monitoring screen
  • 17.7 min. runtime at half load; 6.5 min. at full load
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Line-interactive, uninterruptible power supply (UPS) with enhanced LCD interface offers network-grade power protection for your critical server, network and telecommunications equipment. UPS with built-in, auto-voltage regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of a power failure. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption. 94 percent line-mode efficiency offers reduced heat emissions and operating costs. USB and RS-232 ports work with PowerAlert software to communicate detailed UPS status and site power conditions. Communication ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions.

Tech Specs

UPS SMART 1500VA 1000WAVR 120V 8OUT 2URM LCD USB DB9 RS232 EPO specifications
USBYes
AlarmUPS StartUp
Depth13.4"
Width17.3"
Height3.5"
RecycledNo
Brand NameTripp Lite series
Cord Length9.84 ft
Form FactorRack/Tower
Rack Height2U
Serial PortYes
ManufacturerEaton Corporation
Show all 49 specs
Product LineSmartPro
Product NameLine-interactive UPS Power Supply
Product TypeLine-interactive UPS
Hot SwappableYes
Input Current12 A
Input Voltage120 V AC
Product ModelSMC15002URM
TAA CompliantYes
Waveform TypePure Sine Wave
Output Voltage120 V AC
Product FamilySmartPro
Circuit BreakerYes
Protection TypeBlack Out
Receptacle TypeNEMA 5-15R

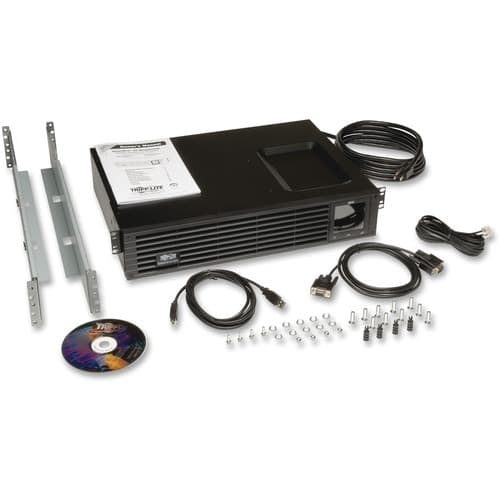

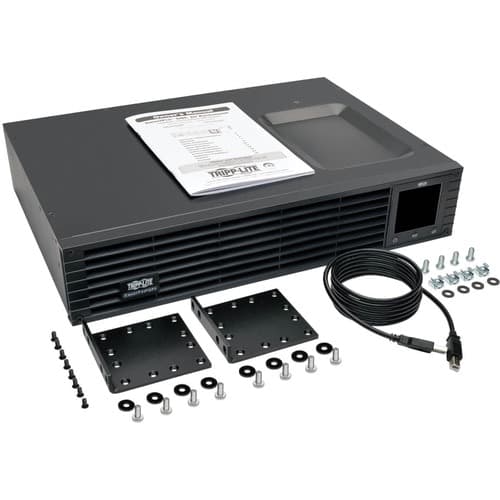

Package Contents<ul><li>SMC15002URM UPS System</li><li>USB Cable</li><li>2 & 4 Post Rackmount Installation Hardware</li><li>Instruction Manual</li></ul>
Assembly RequiredNo
Country of OriginChina
Packaged Quantity1 Each
Receptacle Detail8 x NEMA 5-15R
Status IndicatorsLEDs
Battery Managementuser-replaceable
Load Capacity (VA)1500 VA
Emergency Power OFFYes
Plug/Connector TypeNEMA 5-15P
Surge Energy Rating570 J
Thermal Dissipation65.35 W
Load Capacity (Watt)1000 W
Weight (Approximate)46.50 lb
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Manufacturer Part NumberSMC15002URM
Certifications & Standards<p>UL Listed Certification</p>
Backup/Run Time (Full Load)6.50 Minute
Backup/Run Time (Half Load)17.70 Minute
Sound Emission (A-Weighted)45 dB(A)
Manufacturer Website Addresshttp://www.eaton.com
Maximum Operating Temperature104°F (40°C)
Additional Warranty Information<p>2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty. $250,000 connected equipment insurance</p>
