EATON TRIPP LITE SERIES MASTER-POWE

UPS SMART 1000VA 800WAVR 120V 6OUT USB DB9 1URM LINE-INT TAA

SKU: XU0159VPN: SM1000RM1UTAA

UPS SMART 1000VA 800WAVR 120V 6OUT USB DB9 1URM LINE-INT TAA

Key Features

  • Corrects under- and overvoltages from 83V to 147V
  • 6 NEMA 5-15R outlets-2 switchable via network interface
  • Network power management and control capability
  • 99% efficiency rating saves energy and operating cost
  • 14 min. runtime at half load; 4 min. at full load
  • 2-year limited warranty, $250,000 Ultimate Lifetime Insurance
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Protects Mission-Critical Rack-Mounted Equipment
  • Provides fully regulated sine wave AC output for servers, network storage devices and telecom hardware
  • Audible alarm signals loss of utility power, overload and low battery
  • 6 NEMA 5-15R outlets
  • 10-ft. (3.05 m) power cord with 120V NEMA 5-15P input
  • 450-joule surge suppression rating
Reliable Battery Backup
  • Supports half load up to 14 min. and full load up to 4 min.
  • Internal batteries designed for hot-swap field replacement
Switchable Outlets
  • 2 load banks, each with one outlet controllable remotely to reboot equipment or shed nonessential loads
Automatic Voltage Regulation (AVR)
  • Maintains 120V nominal output over input range of 83V-147V without using battery power
EMI/RFI Line Noise Filtering
  • Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance
High Efficiency Operation
  • 99% line mode efficiency saves money and energy and protects the environment
Optional Network Management Cards
  • Compatible with Tripp Lite UPS management cards, such as WEBCARDLX
Communications Ports
  • USB and DB9 ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from www.tripplite.com/poweralert
  • EPO port supports emergency shutdown in large facilities
Versatile Installation Options
  • Hardware included for mounting in 1U of EIA-standard 19 in. 2- or 4-post rack
  • Optional 4POSTRAILKIT1U accessory available for extra support in 4-post installations
  • Compatible with vertical mount cabinets
TAA Compliant
  • Complies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Tech Specs

UPS SMART 1000VA 800WAVR 120V 6OUT USB DB9 1URM LINE-INT TAA specifications
USBYes
AlarmLow Battery
Depth16.8"
Width17.5"
Height1.7"
Brand NameTripp Lite series
Cord Length10 ft
Form FactorRack/Tower
Rack Height1U
Serial PortYes
ManufacturerEaton Corporation
Product LineSmartPro
Show all 44 specs
Product NameSmartPro SM1000RM1UTAA 1000VA Tower/Rack Mountable UPS
Product TypeLine-interactive UPS
Hot SwappableYes
Input Current9 A
Input Voltage120 V AC
Product ModelSM1000RM1UTAA
TAA CompliantYes
Waveform TypeSine Wave
Output Voltage120 V AC
Product FamilySmartPro
Protection TypeBrownout
Receptacle TypeNEMA 5-15R

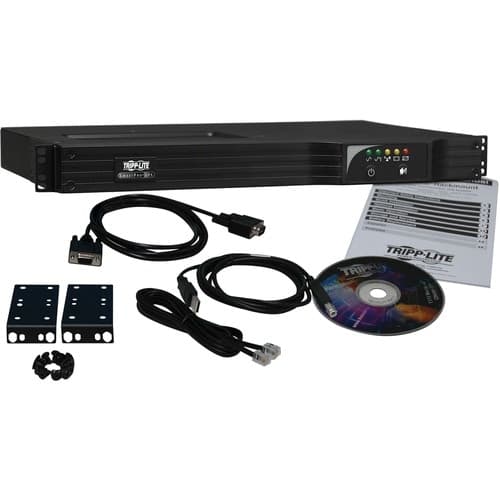

Package Contents<ul><li>SmartPro SM1000RM1UTAA 1000VA Tower/Rack Mountable UPS</li><li>Mounting hardware</li><li>Cabling for USB & DB9 Monitoring and EPO Switching</li><li>Instruction Manual</li></ul>
Country of OriginTaiwan
Receptacle Detail6 x NEMA 5-15R
Software IncludedPowerAlert Monitoring
Status Indicators<ul><li>Line power status</li><li>Battery power status</li><li>Overload status</li><li>Voltage regulation status</li><li>Battery low/replace status</li></ul>
Battery ManagementUser replaceable
Load Capacity (VA)1000 VA
Emergency Power OFFYes
Plug/Connector TypeNEMA 5-15P
Surge Energy Rating450 J
Load Capacity (Watt)800 W
Weight (Approximate)32 lb
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Environmentally FriendlyYes
Manufacturer Part NumberSM1000RM1UTAA
Certifications & Standards<ul><li>TAA Compliant</li><li>UL1778 (USA)</li><li>CSA (Canada)</li><li>NOM (Mexico)</li><li>Meets FCC Part 15 Category A (EMI)</li></ul>
Backup/Run Time (Full Load)4 Minute
Backup/Run Time (Half Load)14 Minute
Manufacturer Website Addresshttp://www.eaton.com
Maximum Operating Temperature104°F (40°C)
