UPS INT 1500VA 940W TOWER 230V AVR 8 C13 OUTLETS USB TEL/DSL/ENET

SKU: E81230VPN: OMNIVSINT1500XL

In Stock

$711.00$422.24

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

1500VA / 1.5kVA tower 230V line interactive extended-run UPS
Corrects brownouts and overvoltages from 151 to 282V
USB port, TEL/DSL/ethernet protection, External battery pack options

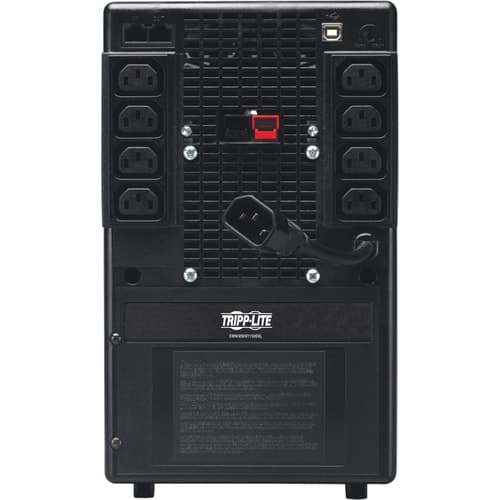

C14 input and 8 C13 outlets

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Tripp Lite's OMNIVSINT1500XL line interactive UPS system offers voltage regulation, surge suppression and expandable battery support for sensitive electronics. Internal UPS circuits support entry level PC systems for up to 75 minutes during power failures. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 151 and overvoltages up to 282 volts back to usable 230V levels without using battery power. Includes 8 IEC320-C13 outlets with battery support and AC surge suppression. USB port enables unattended system shutdown. PowerAlert software available via free download from www.tripplite.com. Built-in single line RJ jacks. Built-in audible alarm and 4 front panel LEDs indicate line power status, battery power status, battery low/replace status and voltage boost operation. 1500VA power handling ability. Offers 4.5 minutes battery runtime with a full load of 1500VA and 13 minutes with a half load of 750VA. Supports hot-swappable battery replacement via access panel.

Tech Specs

UPS INT 1500VA 940W TOWER 230V AVR 8 C13 OUTLETS USB TEL/DSL/ENET specifications
USB	Yes
Alarm	Power Failure
Depth	7.5"
Width	7.3"
Height	11.8"
Brand Name	Tripp Lite series
Cord Length	5.91 ft
Form Factor	Tower
Battery Life	6 Year
Color Family	Black
Manufacturer	Eaton Corporation
Product Line	Omni

Show all 40 specs

Product Name	Omni VS 1500VA Tower UPS
Product Type	Line-interactive UPS
Hot Swappable	Yes
Input Voltage	220 V AC
Product Color	Black
Waveform Type	Pulse-width Modulated Sine Wave
Output Voltage	230 V AC
Product Family	Omni VS
Product Series	VS
Receptacle Type	IEC 60320 C13
Package Contents	<ul><li>Omni VS 1500VA Tower UPS</li><li>OMNIVSINT1500XL line interactive UPS</li><li>2 C13 to C14 interconnection cables</li><li>USB and phone line cables</li><li>Owner's manual with warranty information</li></ul>
Country of Origin	China
Receptacle Detail	8 x IEC 60320 C13
Status Indicators	<p><b>4 Front Panel LEDs:</b></p><ul><li>Line power</li><li>Battery power</li><li>Low battery</li><li>Replace battery</li><li>Voltage regulation operation</li></ul>
Load Capacity (VA)	1500 VA
Dataline Protection	RJ-11
Plug/Connector Type	IEC 320-C14
Surge Energy Rating	1920 J
Load Capacity (Watt)	940 W
Weight (Approximate)	33 lb
Additional Information	<ul><li>Offers voltage regulation, surge suppression and long lasting battery support</li><li>Regulates brownouts as low as 151 and overvoltages to 282V back to usable 230V nominal levels without using battery power</li><li>1500VA power handling ability supports a variety of sensitive electronic equipment</li><li>Runtime is further expandable with the addition of BP24V14 external battery pack</li><li>Cold Start: UPS can be "cold started" to enable temporary AC output during a power failure</li></ul>
Manufacturer Part Number	OMNIVSINT1500XL
Certifications & Standards	<ul><li>UL1778</li><li>CE 62040</li><li>GOST</li><li>SASO</li><li>IRAM</li></ul>
Backup/Run Time (Full Load)	5 Minute
Backup/Run Time (Half Load)	14 Minute
Manufacturer Website Address	http://www.eaton.com
Maximum Operating Temperature	122°F (50°C)
Typical Battery Recharge Time	4 Hour
