EATON TRIPP LITE SERIES MASTER-POWE

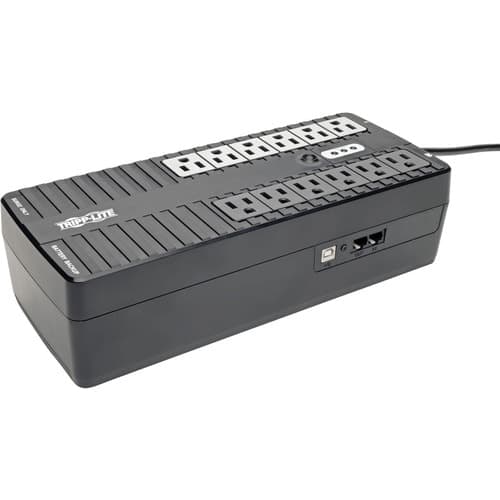

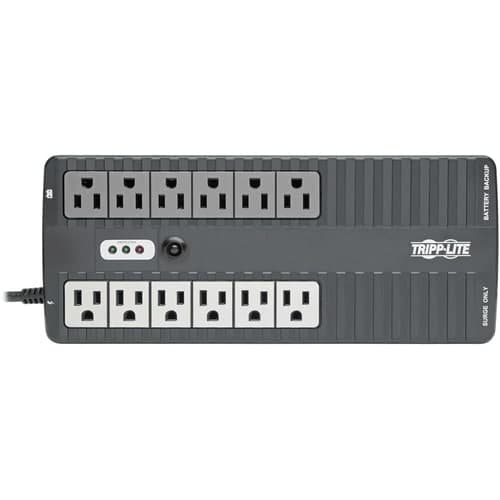

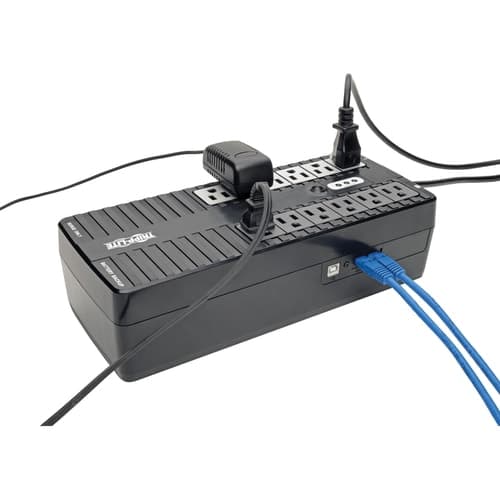

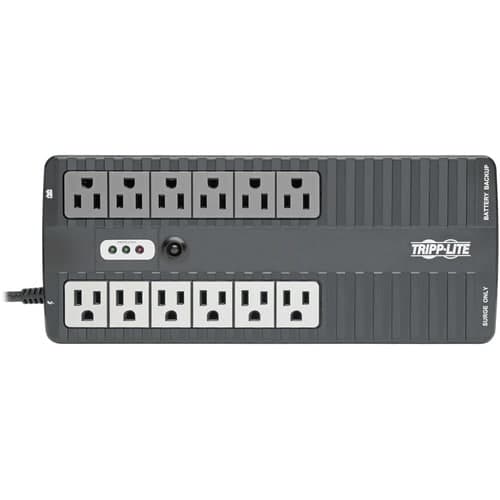

UPS 750VA 450W BACK UP STANDBY 120V 12 OUTLETS USB DSL DESKTOP

SKU: K16036VPN: INTERNET750U

UPS 750VA 450W BACK UP STANDBY 120V 12 OUTLETS USB DSL DESKTOP

Key Features

  • Compact desktop UPS with silent alarm provides battery backup support for your home/office network system or digital signage components.
  • Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
  • Keeps AC power running during blackouts to allow time for file saves and safe shutdown
  • 12 NEMA 5-15R outlets power and protect PC, home theater or digital signage equipment
  • Home-friendly alarm remains silent in backup mode, sounding only when imperative
  • High >98% efficiency with low BTU ratings saves electricity and lowers your energy costs
  • 3-year limited warranty
  • $100,000 Ultimate Lifetime Insurance
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

UPS offers standby protection for PCs and peripherals to prevent data loss and system downtime by providing battery-supported AC output during brownouts and blackouts. Ultra-compact, wall-mountable UPS includes 12 widely spaced, output receptacles to accommodate large transformer plugs. 6 outlets provide full battery support and surge suppression for computers, monitors and other vital system components. 6 additional, surge suppression-only outlets are ideal for printers and other accessories not requiring battery support. Single-line, telephone suppression jacks protect modem or other peripherals with a standard dialup or DSL phone line connection. HID-compliant USB interface enables integration with built-in power management and auto-shutdown features of Windows and Mac OS X. Audible alarm and front panel LEDs offer status information regarding line and battery power operation. 750VA/450 watt power handling ability supports entry-level PCs for up to 45 minutes during power failures.

Tech Specs

UPS 750VA 450W BACK UP STANDBY 120V 12 OUTLETS USB DSL DESKTOP specifications
USBYes
AlarmSelf-test Operation
Depth7"
Width12"
Height4"
RecycledNo
Brand NameTripp Lite series
Cord Length5 ft
Form FactorUltra-compact Desk-mount
Battery Life6 Year
Color FamilyBlack
ManufacturerEaton Corporation
Show all 51 specs
Product Name750VA 6UPS/Surge and 6 Surge UPS System
Product TypeStandby UPS
Hot SwappableYes
Input Voltage110 V AC
Modem (RJ-11)Yes
Product ColorBlack
Product ModelINTERNET750U
Transfer Time4 ms
Waveform TypePulse-width Modulated Sine Wave
Output Voltage120 V AC
Protection TypeSurge
Receptacle TypeNEMA 5-15R
Package Contents<ul><li>Internet Office 750VA UPS</li><li>USB cable and phone cord</li><li>Instruction manual with warranty information</li></ul>
Application/UsagePrinter
Assembly RequiredNo
Battery ChemistryLead Acid
Country of OriginChina
Packaged Quantity1 Each
Receptacle Detail12 x NEMA 5-15R
Software IncludedPowerAlert Software
Status Indicators2 LEDs indicate on/off and overload/check battery
Load Capacity (VA)750 VA
Dataline ProtectionRJ-11
Plug/Connector TypeNEMA 5-15P
Surge Energy Rating380 J
Load Capacity (Watt)450 W
Weight (Approximate)15.50 lb
Additional Information<ul><li>INTERNET750U standby UPS offers complete protection from blackouts, brownouts and surges on AC and tel/DSL dataline connections</li><li>12 widely spaced outlets accommodate large transformer plugs without blocking outlets</li><li>6 battery-supported outlets protect computers and vital system peripherals. 6 surge suppression-only outlets protect system accessories that do not require battery support</li><li>Provides battery-derived AC output during blackouts and brownouts</li><li>750VA/450W power handling ability supports a variety of PCs, workstations and other sensitive electronics</li><li>Supports entry-level PC systems up to 35 min. during blackouts</li><li>Single-line tel/DSL surge suppression with line splitter protects two directly connected modems, fax machines or cordless phones sharing a single phone line connection</li><li>USB port, FREE PowerAlert Software and cabling provide monitoring of site power conditions</li><li>HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows, Mac OS X and Linux</li><li>Supports Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application/OS or hard power off/on reboot of connected equipment; ideal for unattended kiosk applications</li><li>Hot-swap battery replacement supported via battery access door</li><li>Space-saving ultra-compact housing</li><li>Keyhole mounting flanges enable secure wallmount installation</li><li>$100,000 Ultimate Lifetime Insurance protects connected equipment from surge damage (USA & Canada only)</li></ul>
Manufacturer Part NumberINTERNET750U
Certifications & Standards<ul> <li>UL1778 (USA)</li> <li>cUL (Canada)</li> <li>FCC Class B (emissions)</li> <li>NOM (Mexico)</li> <li>FCC Part 68 / Industry Canada (telecommunications)</li> <li>Conforms to IEEE 587 / ANSI C62.41 specifications</li> </ul>
Backup/Run Time (Full Load)2.50 Minute
Backup/Run Time (Half Load)11 Minute
Manufacturer Website Addresshttp://www.eaton.com
Number of Surge-only Outlets6
Maximum Operating Temperature104°F (40°C)
Typical Battery Recharge Time4 Hour
Additional Warranty Information<p>2-year warranty; $100,000 connected equipment insurance (USA & Canada only).</p>
Energy Efficiency CertificationENERGY STAR 2.0
Number of Battery & Surge Outlets6
