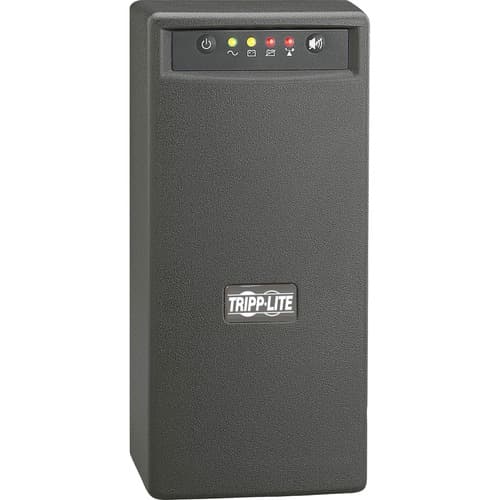

EATON TRIPP LITE SERIES MASTER-POWE

UPS 1000VA 500W TOWER AVR 120V 8 5-15R OUTLETS USB TEL/DSL/RJ45

SKU: C83703VPN: OMNIVS1000

UPS 1000VA 500W TOWER AVR 120V 8 5-15R OUTLETS USB TEL/DSL/RJ45

Key Features

  • 1000VA / 1kVA tower 120V line interactive UPS
  • Corrects brownouts as low as 89V without using battery power
  • 6 UPS battery supported outlets, 2 surge-only outlets
  • USB port, TEL/DSL/ethernet protection

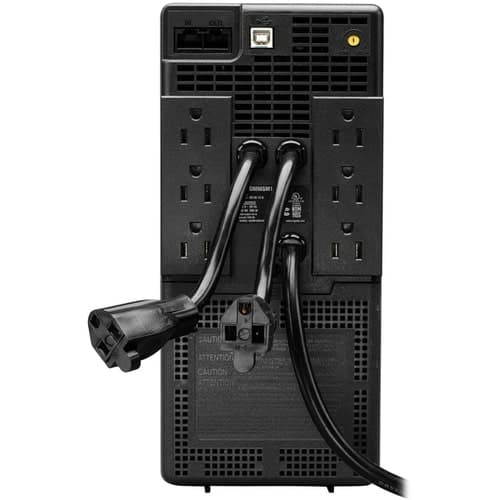

  • NEMA 5-15P input plug and 8 NEMA 5-15R outlets
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

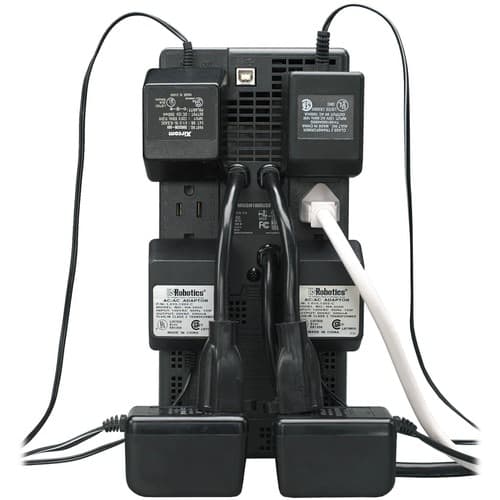

Line interactive UPS system with eight outlets offers voltage regulation, surge suppression and long-lasting battery support for personal computers, Internet-working equipment and other sensitive electronics. Internal UPS circuits support entry level PC systems for up to 60 minutes during power failures so that connected equipment can be shut down without data loss. Automatic Voltage Regulation circuits regulate brownouts as low as 83 volts back to usable levels without using battery power. Includes six battery-supported outlets for computer, monitor and one vital system peripheral, plus two additional surge suppression-only outlets for printers and other system accessories not requiring battery support. Built-in, single-line RJ phone suppression jacks protect modem, fax machine or cordless phone with a standard dial-up/DSL phone connection. Offers 7-minute battery runtime with a full load of 1000VA/500 watts and 18 minutes with a half load of 500VA/250 watts.

Tech Specs

UPS 1000VA 500W TOWER AVR 120V 8 5-15R OUTLETS USB TEL/DSL/RJ45 specifications
USBYes
AlarmOn Battery
Depth7.2"
Width5.3"
Height10.8"
RecycledNo
Brand NameTripp Lite series
Cord Length6 ft
Form FactorTower
Battery Life6 Year
Color FamilyBlack
ManufacturerEaton Corporation
Show all 46 specs
Product LineOmni
Product Name8-Outlet Line Interactive UPS System
Product TypeLine-interactive UPS
Input Voltage110 V AC
Product ColorBlack
Transfer Time4 ms
Waveform TypePulse-width Modulated Sine Wave
Output Voltage120 V AC
Product FamilyOmni VS
Product SeriesVS
Protection TypeSurge
Receptacle TypeNEMA 5-15R

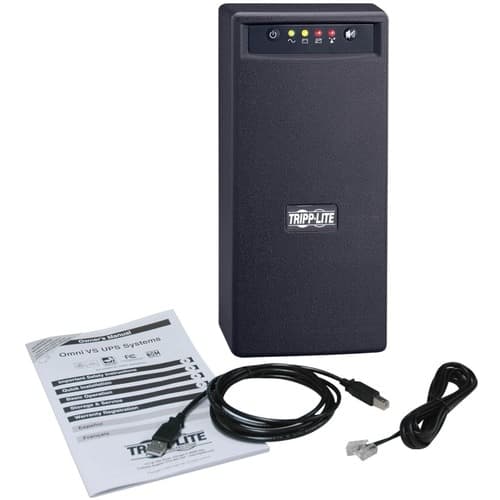

Package Contents<ul><li>OMNIVS1000 Line Interactive UPS</li><li>USB and telephone cable</li><li>User manual with warranty information</li></ul>
Assembly RequiredNo
Battery ChemistryLead Acid
Country of OriginTaiwan
Packaged Quantity1 Each
Receptacle Detail6 x NEMA 5-15R

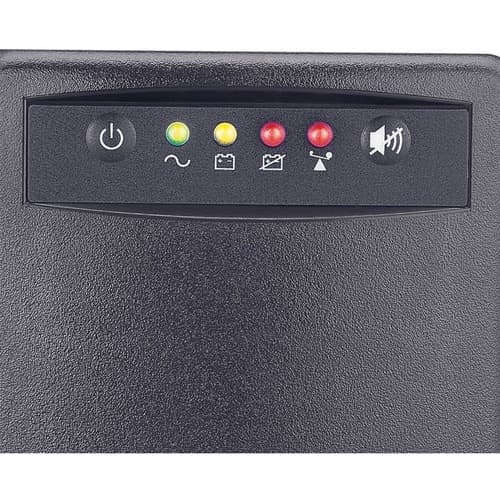

Status Indicators4 front panel LEDs indicate line power status, battery power status, battery low/replace status and voltage regulation operation
Load Capacity (VA)1000 VA
Dataline ProtectionRJ-45
Plug/Connector TypeNEMA 5-15P
Surge Energy Rating480 J
Load Capacity (Watt)500 W
Weight (Approximate)21 lb
Additional Information<ul><li>The full load runtime is 3.5 minutes. Half load runtime is 14 minutes.</li></ul>
Manufacturer Part NumberOMNIVS1000
Certifications & StandardsUL1778 (USA), cUL (Canada), FCC Class B (emissions), NOM (Mexico), FCC Part 68 / Industry Canada (telecommunications), Conforms to IEEE 587 / ANSI C62.41 specifications
Backup/Run Time (Full Load)3.50 Minute
Backup/Run Time (Half Load)14 Minute
Manufacturer Website Addresshttp://www.eaton.com
Maximum Operating Temperature122°F (50°C)
Typical Battery Recharge Time4 Hour
Additional Warranty Information<p>2 year warranty. $200,000 connected equipment insurance (USA & Canada Only).</p>
