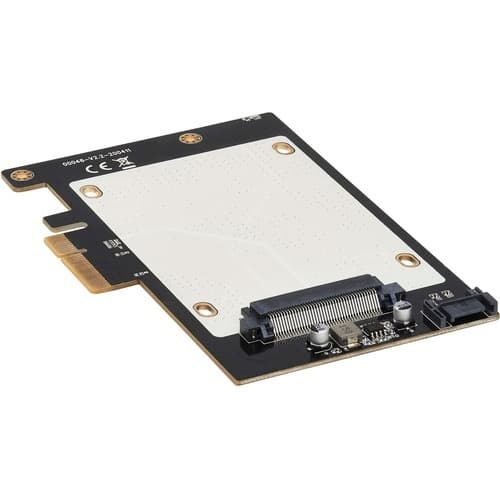

U.2 TO PCIE ADAPTER 2.5 NVME U.2 SSD SFF-8639 PCI EXPRESS CARD

SKU: 08VL61VPN: PCE-U2-PX4

In Stock

$37.00$14.65

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Supports U.2 SSDs and 2.5 in. SATA I/II/III SSDs and HDDs
PCIe U.2 SSD speed provides your computer with faster data access
Compatible with Tripp Lite P970-U2M2 for installing an M.2 module
Works with PCIe 3.0 motherboards; backward compatible with 2.0 and 1.0
Plug-and-play operation with no software required for easy, immediate installation
1-year limited warranty

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Improves Your Computer or Server's Performance and Storage Capabilities
This U.2 to PCI Express (PCIe) adapter connects a U.2 SSD or a 2.5-inch SATA SSD or HDD to your computer or server's PCIe expansion slot. By converting a PCIe (SFF-8639) host interface, you can add terabytes (TB) of internal storage space and enhance your PC's read/write speeds. The adapter is compatible with PCIe 3.0 motherboards. It is also backward compatible with earlier 2.0 and 1.0 versions.

Add an Optional M.2 Adapter for Expanded Functionality
The PCE-U2-PX4 is compatible with Tripp Lite's P970-U2M2 U.2 to M.2 NVMe adapter (sold separately) to convert the PCIe expansion slot into an M.2 SSD module.

Just Plug and Play with No External Power Needed
Use the included 7-pin SATA cable to connect the PCE-U2-PX4 to the motherboard. No additional software or power is needed. The adapter is compatible with Windows (7 and higher) and macOS (High Sierra and higher).

Tech Specs

U.2 TO PCIE ADAPTER 2.5 NVME U.2 SSD SFF-8639 PCI EXPRESS CARD specifications
Brand Name	Tripp Lite series
Color Family	Black
Manufacturer	Eaton Corporation
Product Name	U.2 to PCIe Adapter for 2.5" NVMe U.2 SSD, SFF-8639, PCI Express (x4) Card
Product Type	U.2 to PCI Express Adapter
Product Color	Black
Product Model	PCE-U2-PX4
Package Contents	<ul> <li>U.2 to PCIe Adapter for 2.5" NVMe U.2 SSD, SFF-8639, PCI Express (x4) Card</li> <li>2 x Bracket Screws</li> <li>4 x SSD Screws</li> <li>Screwdriver</li> <li>7-pin SATA Cable</li> <li>Quick Start Guide</li> </ul>
Country of Origin	China
Additional Information	Bus Powered: Yes<br />Operating Temperature Range: 50 to 158F (10 to 70C) <br />Storage Temperature Range: 32 to 149F (0 to 65C) <br />Relative Humidity: 10% to 80% RH<br />Number of Ports: 2 <br />Side A - Connector 1: SF-8639 (MALE) <br />Side B - Connector 1: 7-PIN SATA (FEMALE)
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmentally Friendly	Yes

Show all 15 specs

Manufacturer Part Number	PCE-U2-PX4
Certifications & Standards	<ul> <li>CE (Europe)</li> <li>FCC (USA)</li> <li>UKCA</li> <li>EN 55032</li> </ul>
Manufacturer Website Address	http://www.eaton.com
