LEGRAND AV - C2G

TRIPLE 4K DISPLAYLINK DOCK 135W PSU

SKU: 09VU47VPN: C2G30166

TRIPLE 4K DISPLAYLINK DOCK 135W PSU

Key Features

  • 28AWG conductors allow for greater flexibility
  • Snagless boot prevent cable snags
  • Variety of colors and lengths
  • 10Gbps data speeds up to 328ft
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

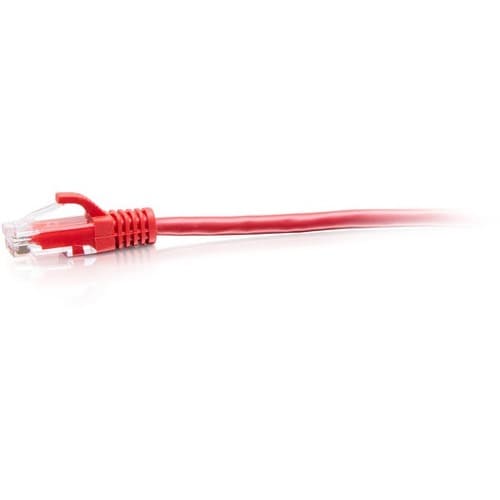

The Cat6a Snagless Unshielded (UTP) Slim Network Patch Cable is the perfect solution for high density cabling applications such as large conference rooms and datacenters. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colors to easily color-code your network installation.This network cable supports ethernet speeds up to 10Gbps at distances up to 328ft which is ideal for large conference rooms that may be leveraging HDBaseT technology. Cat6a technology doubles the minimum bandwidth of previous Cat6 cables and is five times more powerful than Cat5e. This increase in data speeds and bandwidth makes it the perfect Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) situations. The use of 28AWG conductors allows for greater flexibility in those tight space installations where space is always crucial. This reduced diameter provides a smaller cable surface area which allows for increased airflow when compared to standard Cat6 cables. And lastly, these cables are backed by a lifetime warranty to provide peace of mind.

Additional Technical Specifications

Physical Specifications

  • 28AWG construction
  • Connector: RJ45 Male, Gold-Plated Contacts
  • Connector Hood: PVC
  • Product is CE Marked and Conforms to 2011/65/EU ROHS 2
  • Meets the ANSI/TIA-568.2-D; ISO/IEC 11801-1 electrical performance requirements
  • Shield: AL Foil Wrap
  • Cable OD: 4.8mm (about 0.19 in) ± 0.15mm (about 0.01 in)

    • Electrical Specifications

  • Testing: 100% Test for Short/Open: 10M Ω
  • Insulation Resistance: 300V DC

    • Tech Specs

    TRIPLE 4K DISPLAYLINK DOCK 135W PSU specifications
    FeaturesFlexible
    Boot TypeSnagless
    ShieldingNo
    Brand NameC2G
    Cable TypeCategory 6
    Cable Length25 ft
    Color FamilyRed
    ManufacturerLegrand Group
    Product NameCat.6 UTP Patch Network Cable
    Product TypeNetwork Cable
    Product ColorRed
    Contact PlatingGold
    Show all 28 specs
    Jacket MaterialPolyvinyl Chloride (PVC)
    Material DetailsPVC - Connector Hood
    Product MaterialPVC
    Country of OriginVietnam
    Data Transfer Rate10 Gbit/s
    Shielding MaterialAluminum Foil
    American Wire Gauge28 AWG
    Cable CharacteristicPatch Cable
    Environmental ComplianceRestriction of Hazardous Substances (RoHS)
    Environmentally FriendlyYes
    Manufacturer Part NumberC2G30166
    Connector Type on First EndRJ-45 Network - Male
    Connector Type on Second EndRJ-45 Network - Male
    Manufacturer Website Addresshttp://www.legrand.us
    Connector on First End Details1 x RJ-45 Network - Male
    Connector on Second End Details1 x RJ-45 Network - Male

    Datasheets & Resources
