TOUGHARMOR MB833MK-B V2 M.2 NVME SSD PCIE 4.0 MOBILE RACK
SKU: HZ4898VPN: MB833MK-B V2
TOUGHARMOR MB833MK-B V2 M.2 NVME SSD PCIE 4.0 MOBILE RACK
Key Features

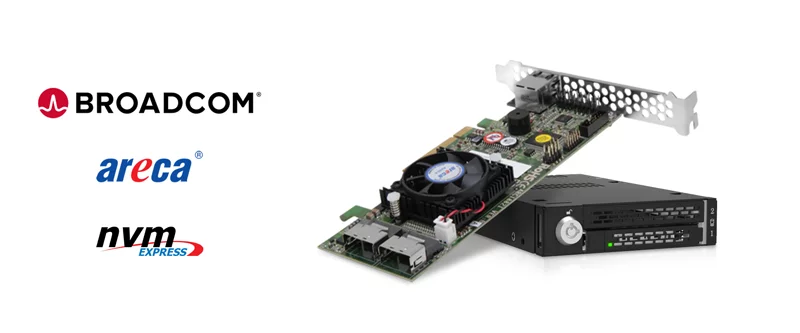

- Due to high demand and in response to recent circuit board updates by host card manufacturers, the ToughArmor MB833MK-B V2 now provides support for Tri-Mode controller cards
- The ToughArmor MB833M2K-B V2 brings M.2 NVMe drives into the front of a computer case and makes M.2 NVMe SSD installation and removal a more straightforward and efficient process

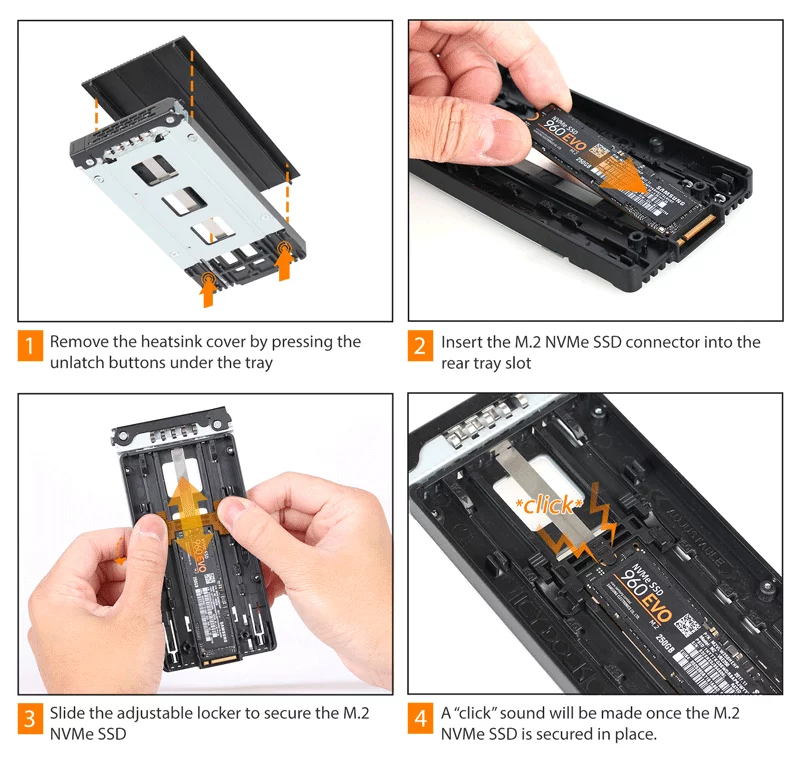

- When using MB833M2K-B V2, the user can simply place the M.2 SSD in the drive tray, adjust the drive locker to the correct length per M.2 drive type, and push down the drive to lock in place
- With our innovative drive tray, the adjustable M.2 locker grounds the drive once clipped into the SSDs screw hole, protecting your drive from static electricity damage during drive swaps
- The M.2 adjustable locker accommodates all standard M.2 PCIe NVMe SSD drives, including 2230 (30mm), 2242 (42mm), 2260 (60mm), 2280 (80mm), and 22110 (110mm)
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
The MB833MK-B V2 is a Removable M.2 NVMe SSD Enclosure that fits an external 3.5” drive bay and supporting PCIe 4.0 64Gb/s data transfer rates via SlimSAS 4i (SFF-8654)
Tech Specs
| Depth | 6.4" |
|---|---|
| Width | 4" |
| Height | 1" |
| Brand Name | Icy Dock |
| Form Factor | Internal |
| Color Family | Black |
| Manufacturer | Icy Dock |
| Product Line | ToughArmor |
| Product Name | M.2 NVMe SSD PCIe 4.0 Mobile Rack Enclosure for External 3.5" Drive Bay |
| Product Type | Drive Enclosure |
| Product Color | Black |
| Product Model | MB833MK-B V2 |
Show all 26 specsShow fewer
| Host Interface | SFF-8654 SlimSAS |
|---|---|
| Drive Interface | PCI Express NVMe 4.0 |
| Package Contents | <ul><li> M.2 NVMe SSD PCIe 4.0 Mobile Rack Enclosure for External 3.5" Drive Bay</li><li> User Manual</li><li> Thermal Pads</li><li> Screws</li><li> Keys</li></ul> |
| Product Material | Plastic |
| Weight (Approximate) | 1.04 lb |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | MB833MK-B V2 |
| Compatible Drive Bay Width | 3.5" |
| Maximum Data Transfer Rate | 64 Gbit/s |
| Manufacturer Website Address | http://www.icydock.com |
| Number of Total Expansion Bays | 1 |
| Number of Solid State Drive Installed | 0 |
| Number of Solid State Drive Supported | 1 |
Datasheets & Resources
