TOUGHARMOR MB607SP-B FULL METAL 4BAY 2.5 MOBILE RACK
SKU: 5PM941VPN: MB607SP-B
TOUGHARMOR MB607SP-B FULL METAL 4BAY 2.5 MOBILE RACK
Key Features

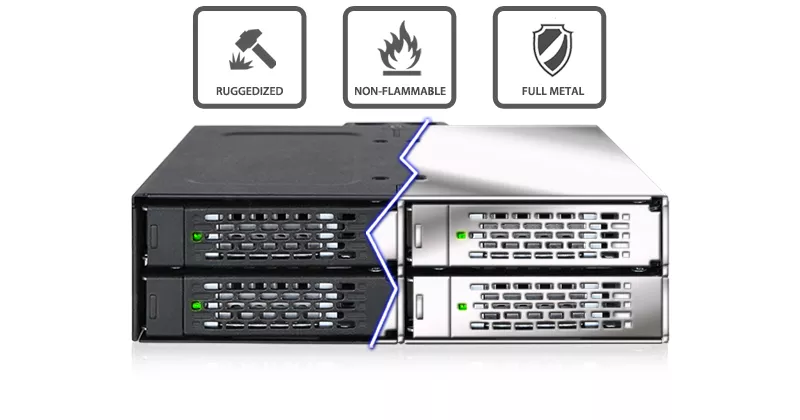

- The MB607SP-B is capable of withstanding the harshest environments due to its rugged heavy duty full metal construction from the outer shell to the inner trays

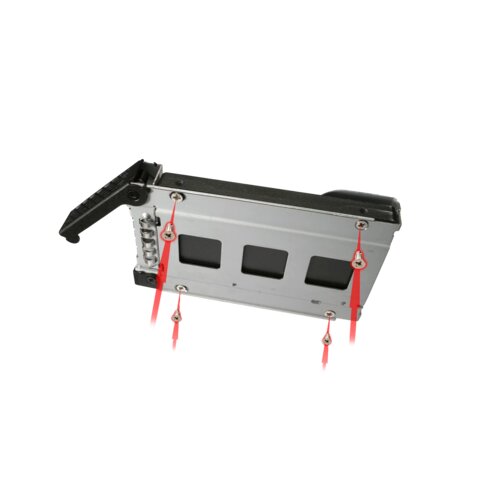

- The trays are designed to accommodate 5mm-15mm drives giving you the ultimate universal 2.5" SAS/SATA drive support with hot-swap function.
- An LED is installed into the front of the dock to provide drive status information. Active Power Technology (APT) allows device to power down when a drive is not inserted into the dock.
- An adjustable 40mm cooling fan, with High, Low, and Off modes, works with ventilation ports in the tray and chassis to remove heat from the system and run at optimal temperatures
- The ToughArmor MB607SP-B supports both 7-pin SATA data and 15-pin SATA power cables with locking latches, to prevent cables from unintentionally disconnecting from your enclosure
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
The MB607SP-B holds 4 x 2.5" SAS/SATA HDD/SSD from 5mm to 15mm height, and supports hot swap for quick and easy drive replacements, all in one 5.25" bay
Tech Specs
| Depth | 6.7" |
|---|---|
| Width | 5.8" |
| Height | 1.6" |
| Brand Name | Icy Dock |
| Cooling Fan | Yes |
| Form Factor | Internal |
| Manufacturer | Icy Dock |
| Product Line | ToughArmor |
| Product Name | ToughArmor MB607SP-B Drive Enclosure |
| Product Type | Drive Enclosure |
| Wireless LAN | No |
| Product Color | Black |
Show all 25 specsShow fewer
| Product Model | MB607SP-B |
|---|---|
| Host Interface | Serial ATA/600 |
| Product Material | Metal |
| Number of 2.5" Bays | 4 |
| Weight (Approximate) | 1.91 lb |
| Manufacturer Part Number | MB607SP-B |
| Compatible Drive Bay Width | 5.25" |
| Manufacturer Website Address | http://www.icydock.com |
| Number of Total Expansion Bays | 4 |
| Number of Hard Drives Installed | No |
| Number of Hard Drives Supported | 4 |
| Number of Solid State Drive Installed | No |
| Number of Solid State Drive Supported | 4 |
