TOUGHARMOR MB606SPO-B METAL 6X 2.5 + ULTRA SLIM ODD BAY
SKU: 6LG391VPN: MB606SPO-B
TOUGHARMOR MB606SPO-B METAL 6X 2.5 + ULTRA SLIM ODD BAY
Key Features
- The high-density design of ToughArmor MB606SPO-B packs six 5mm-7mm 2.5" SSD/HDD hot-swap bays and one Ultra-Slim ODD into a single 5.25" drive bay
- MB606SPO-B's newly designed optical drive bracket features an adaptable design to support Ultra-Slim 9.5mm CD/DVD/Blu-Ray ROM optical disk drive reader.

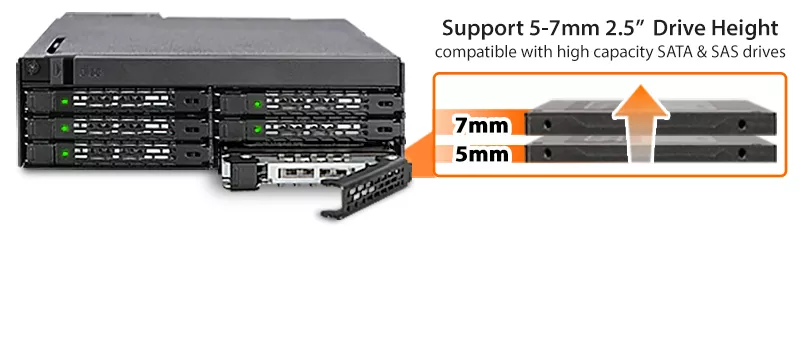

- MB606SPO-B's tray is designed to support HDD/SSDs up to 7mm in height, compatible with SAS & SATA drives
- Removal of the ODD is simple. When the bracket screw is loosened, the spring-loaded ejection arm is revealed. Simply pull the ejection arm to remove the optical disk drive from the enclosure
- An adjustable 40mm cooling fan, with High, Low, and Off modes, works with ventilation ports in the tray and chassis to remove heat from the system and run at optimal temperatures
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
The ToughArmor MB606SPO-B is built for hot-swapping 6x SATA/SAS SSDs and HDDs up to 7mm in height, and 1x Ultra-Slim 9.5mm ODD reader for the external 5.25" bay.
Tech Specs
| Depth | 6.1" |
|---|---|
| Width | 5.7" |
| Height | 1.6" |
| Brand Name | Icy Dock |
| Cooling Fan | Yes |
| Form Factor | Internal |
| Manufacturer | Icy Dock |
| Product Line | ToughArmor |
| Product Name | 6 x 2.5" SAS/SATA SSD/HDD & Ultra Slim ODD Backplane Cage for External 5.25" Bay |
| Product Type | Drive Enclosure |
| Wireless LAN | No |
| Product Color | Black |
Show all 29 specsShow fewer
| Product Model | MB606SPO-B |
|---|---|
| Host Interface | Serial ATA/600 |
| Package Contents | <ul> <li>6 x 2.5" SAS/SATA SSD/HDD & Ultra Slim ODD Backplane Cage for External 5.25" Bay</li> <li>User Manual</li> <li>Screws</li> </ul> |
| Product Material | Metal |
| Number of 2.5" Bays | 6 |
| Number of 5.25" Bays | 1 |
| Weight (Approximate) | 1.70 lb |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | MB606SPO-B |
| Compatible Drive Bay Width | 5.25" |
| Manufacturer Website Address | http://www.icydock.com |
| Number of Total Expansion Bays | 7 |
| Number of Hard Drives Installed | No |
| Number of Hard Drives Supported | 6 |
| Number of Solid State Drive Installed | No |
| Number of Solid State Drive Supported | 6 |
