ICY DOCK

TOUGHARMOR MB602SPO-B METAL 2X 2.5 + ULTRA SLIM ODD BAY

SKU: 6LG389VPN: MB602SPO-B

TOUGHARMOR MB602SPO-B METAL 2X 2.5 + ULTRA SLIM ODD BAY

Key Features

  • The high-density design of ToughArmor MB602SPO-B packs two full-height 2.5" SSD/HDD hot-swap bays and one Slim/Ultra-Slim CD/DVD/Blu-ray ROM optical disk drive into a single 5.25" drive bay

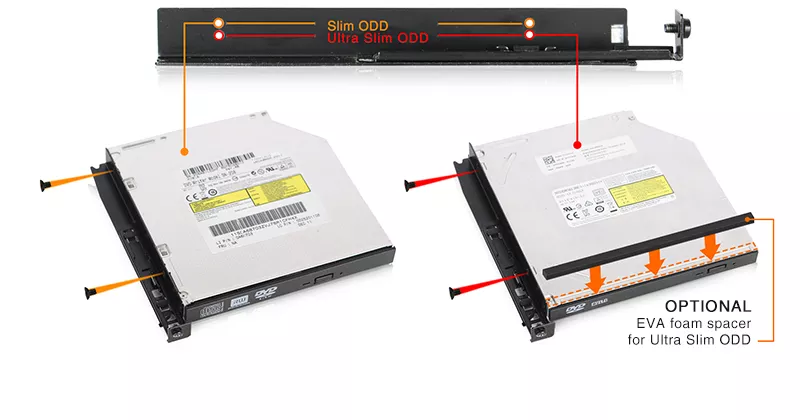

  • MB602SPO-B's newly designed optical drive bracket features an adaptable design to support any Slim 12.7mm or Ultra-Slim 9.5mm CD/DVD/Blu-Ray ROM optical disk drive reader.
  • MB602SPO-B's tray is designed to support HDD/SSDs from 5mm-15mm in height using SAS/SATA. You would also be able to install a Slim or Ultra Slim ODD device in the top of the enclosure.
  • Removal of the ODD is simple. When the bracket screw is loosened, the spring-loaded ejection arm is revealed. Simply pull the ejection arm to remove the optical disk drive from the enclosure
  • An adjustable 40mm cooling fan, with High, Low, and Off modes, works with ventilation ports in the tray and chassis to remove heat from the system and run at optimal temperatures
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

The MB602SPO-B mobile rack for hot-swapping 2x SATA/SAS SSDs and HDDs up to 15mm in height, and 1x Slim 12.7mm or Ultra-Slim 9.5mm optical disk drive reader for the external 5.25" bay.

Tech Specs

TOUGHARMOR MB602SPO-B METAL 2X 2.5 + ULTRA SLIM ODD BAY specifications
Depth6.1"
Width5.7"
Height1.6"
Brand NameIcy Dock
Cooling FanYes
Form FactorInternal
ManufacturerIcy Dock
Product LineToughArmor
Product NameToughArmor MB602SPO-B Drive Enclosure
Product TypeDrive Enclosure
Wireless LANNo
Product ColorBlack
Show all 29 specs
Product ModelMB602SPO-B
Host InterfaceSerial ATA/300
Package Contents<ul> <li>ToughArmor MB602SPO-B Drive Enclosure</li> <li>User Manual</li> <li>Screws</li> <li>EVA Foam Spacer</li> </ul>
Product MaterialMetal
Number of 2.5" Bays2
Number of 5.25" Bays1
Weight (Approximate)1.54 lb
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmentally FriendlyYes
Manufacturer Part NumberMB602SPO-B
Compatible Drive Bay Width5.25"
Manufacturer Website Addresshttp://www.icydock.com
Number of Total Expansion Bays3
Number of Hard Drives InstalledNo
Number of Hard Drives Supported2
Number of Solid State Drive InstalledNo
Number of Solid State Drive Supported2
