TOUGHARMOR MB601VK-B 2.5 NVME U.2 SSD MOBILE RACK

SKU: 5PM940VPN: MB601VK-B

TOUGHARMOR MB601VK-B 2.5 NVME U.2 SSD MOBILE RACK

Key Features

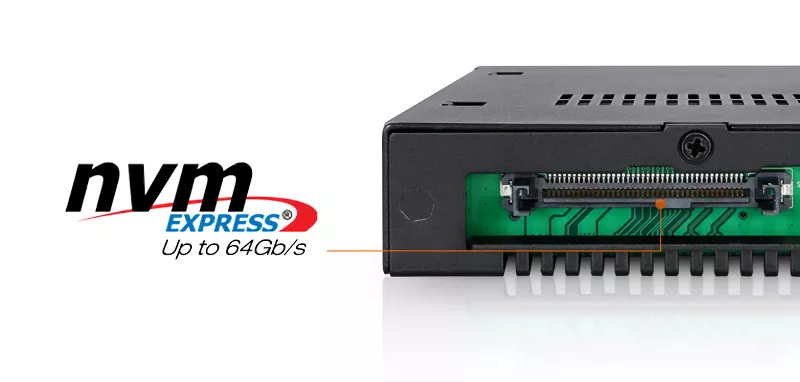

  • Built with the next generation U.2 (SFF-8639) interface, MB601VK-B offers up to 64Gb/s of bandwidth and supports 2.5” U.2 NVMe SSD, SAS and SATA interface 2.5” solid state drives or SSDs
  • The tray is designed to accommodate 5 to 15mm height 2.5" U.2 SSD, creating a removable drive bay for U.2 NVMe SSD or any standard SAS / SATA SSDs

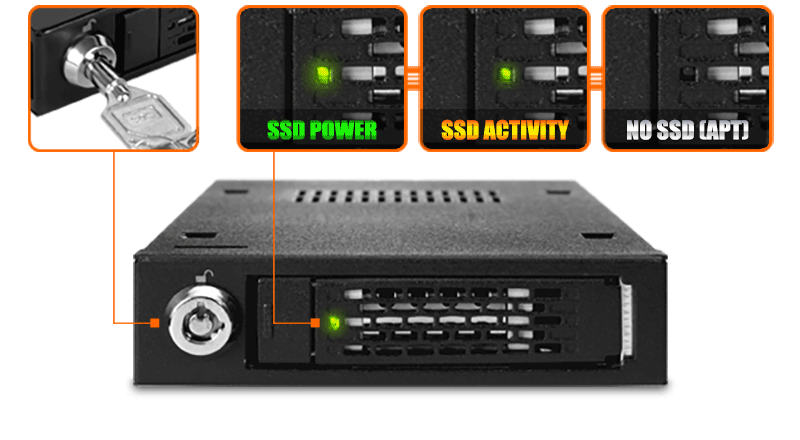

  • An LED is installed into the front of the dock to provide drive status information. Active Power Technology (APT) allows device to power down when a drive is not inserted into the dock.
  • The MB601VK-B is made of heavy duty metal which is capable of holding up to the harshest environments. The full metal is considered compliant with flammability requirements.
  • The MB601VK-1B is perfect when accommodating up to a 15mm NVMe U.2 drive into smaller cases. While the MB601VK-1B has an longer overall length to accommodate 110mm length NVMe M.2 SSDs.
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

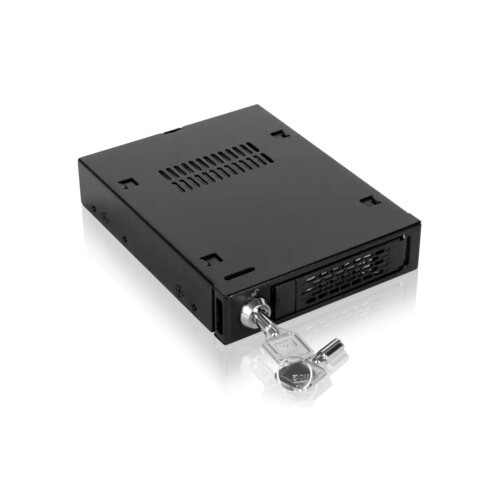

The MB601VK-B is ICY DOCK’s next generation PCI-E based mobile rack with ultra high speed 2.5” U.2 NVMe solid-state-disk in an external 3.5” floppy drive bay.

Tech Specs

TOUGHARMOR MB601VK-B 2.5 NVME U.2 SSD MOBILE RACK specifications
Depth6.3"
Width4"
Height1"
Brand NameIcy Dock
Form FactorInternal
ManufacturerIcy Dock
Product Name2.5" U.2 NVMe SSD Mobile Rack For External 3.5" Drive Bay
Product TypeDrive Bay Adapter
Wireless LANNo
Product ColorMatte Black
Product ModelMB601VK-B
Host InterfaceU.2 (SFF-8639)
Show all 20 specs
Package Contents<ul> <li>2.5" U.2 NVMe SSD Mobile Rack For External 3.5" Drive Bay</li> <li>User Manual</li> <li>4 x M3*4 Flat Head Screws for 2.5" HDD/SSD</li> <li>4 x M3*4 Screws for Device</li> <li>2 x Keys</li> </ul>
Product MaterialMetal
Number of 2.5" Bays1
Weight (Approximate)14 oz
Manufacturer Part NumberMB601VK-B
Compatible Drive Bay Width3.5"
Manufacturer Website Addresshttp://www.icydock.com
Number of Total Expansion Bays1
