TOUGHARMOR MB601M2K-1B M.2 PCIE NVME SSD MOBILE RACK FOR EXT 3.5IN
SKU: 7AL085VPN: MB601M2K-1B
TOUGHARMOR MB601M2K-1B M.2 PCIE NVME SSD MOBILE RACK FOR EXT 3.5IN
Key Features

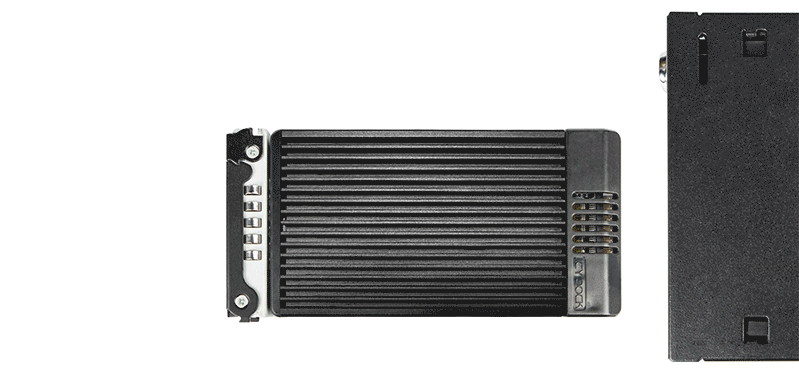

- The ToughArmor MB601M2K-B's removable M.2 SSD tray has a built-in M.2 to U.2 connector that can handle up to 10,000 insertion or removal cycles.
- The adjustable M.2 locker slides to accommodate all standard M.2 PCIe NVMe SSD drive lengths, including 2230 (30mm), 2242 (42mm), 2260 (60mm), 2280 (80mm) and 22110 (110mm).

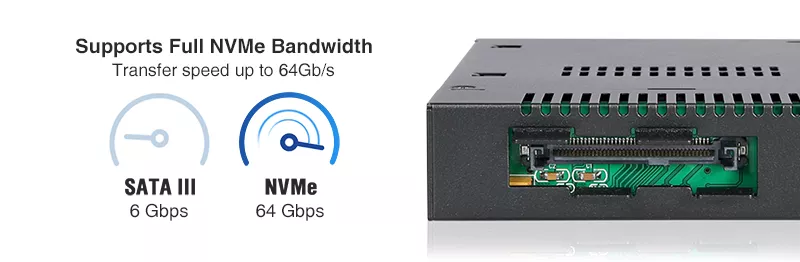

- Utilizes the U.2 (SFF-8639) NVMe connector to support the full NVMe bandwidth specification of 64Gbps, over 10 times faster than the previous SATA standard
- The uniquely designed tray has an integrated aluminum heat sink with included thermal pads for maximum passive heat dispersion.
- An LED status light built into the tray lets you know when your drive is powered up and in use. To save power, the LED is shut off when no drive is installed
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
The ToughArmor MB601M2K-1B is the world’s first rugged M.2 NVMe removable mobile rack, supporting ultra-high speed 64Gbps data transfer using M.2 PCIe NVMe SSDs of all lengths and brands
Tech Specs
| Depth | 6.6" |
|---|---|
| Width | 4" |
| Height | 1" |
| Brand Name | Icy Dock |
| Form Factor | Internal |
| Manufacturer | Icy Dock |
| Product Line | ToughArmor |
| Product Name | ToughArmor MB601M2K-1B M.2 PCIe NVMe SSD Mobile Rack for External 3.5" Drive Bay |
| Product Type | Drive Bay Adapter |
| Wireless LAN | No |
| Product Color | Black |
| Product Model | MB601M2K-1B |
Show all 30 specsShow fewer
| Host Interface | U.2 (SFF-8639) |
|---|---|
| Drive Interface | M.2 |
| Package Contents | <ul> <li>ToughArmor MB601M2K-1B M.2 PCIe NVMe SSD Mobile Rack for External 3.5" Drive Bay</li> <li>1 x User Manual</li> <li>10 x Screws</li> <li>2 x Keys</li> </ul> |
| Product Material | Metal |
| Country of Origin | China |
| Packaged Quantity | 1 |
| Hot Swappable Bays | Yes |
| Weight (Approximate) | 1.20 lb |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | MB601M2K-1B |
| Compatible Drive Bay Width | 3.5" |
| Manufacturer Website Address | http://www.icydock.com |
| Number of Total Expansion Bays | 1 |
| Number of Hard Drives Installed | 0 |
| Number of Hard Drives Supported | 1 |
| Number of Solid State Drive Installed | 0 |
| Number of Solid State Drive Supported | 1 |
