SUPERBOOSTER 1-PORT USB OVER CAT6A WALL PLATE TO WALL PLATE
SUPERBOOSTER 1-PORT USB OVER CAT6A WALL PLATE TO WALL PLATE
Key Features
- Tested and proven to support leading PTZ cameras at 1080p or 4K resolutions depending on the camera
- Extends USB 3.2 Gen 1 data signal up to 295ft (90m) over Cat6a F/FTP cable
- USB 3.2 connectivity with data transfer rate up to 5Gbps
- Backwards compatible to USB 2.0 and USB 1.1
- Perfect for extending cameras, white boards, storage drives, and other high bandwidth USB devices
- Plug and play - no drivers required
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
C2G Superbooster USB Extenders deliver reliable USB signal transmission for USB devices, allowing devices such as cameras, interactive whiteboards and printers to be placed at greater distances from the host computer.
Your USB extender shouldn't cost more than your camera. C2G's new USB 3.2 extenders use chipset technology that is more economical than other USB 3.2 extenders currently on the market.
What's more, this C2G Superbooster USB Extender has undergone rigorous compatibility testing with industry-leading video conferencing cameras, ensuring total reliability and deployment confidence, plus saving valuable time for AV integrators as well.
C2G's Superbooster® USB Extender provides reliable USB data extension from a computer to a USB device up to 295 feet (90m) over a Cat6a F/FTP network cable - making it an ideal solution for conference rooms, command centers, classrooms, auditoriums and medical facilities.

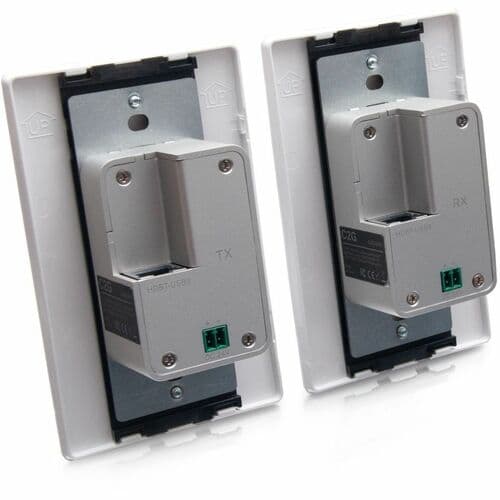

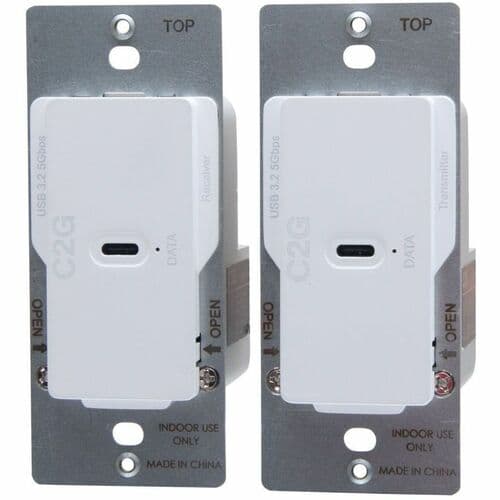

This plug-and-play solution consists of one USB 3.2 Gen1 Extender Wall Plate (transmitter), one USB 3.2 Gen1 Extender Wall Plate (receiver), 24V/1A multinational power supply with conversion plug and 2-pin Phoenix male head (3.5mm pitch), two 2-pin 3.5mm Phoenix connectors (male), and four machine screws.
Tech Specs
| USB | Yes |
|---|---|
| Length | 1.7" |
| HDBase-T | Yes |
| Brand Name | C2G |
| Form Factor | Wall Plate |
| Color Family | White |
| Manufacturer | Legrand Group |
| Product Line | Superbooster |
| Product Name | Superbooster 1Port USB over Cat6a Wall Plate to Wall Plate Extender Kit USB 3.2 Gen1 (5Gbps) |
| Product Type | Video Extender Transmitter/Receiver |
| Input Voltage | 24 V |
| Product Color | White |
Show all 33 specsShow fewer
| Graphics Modes | 4K |
|---|---|
| Product Family | Superbooster |
| Receiver Depth | 1.51" |
| Receiver Width | 1.72" |
| Network (RJ-45) | Yes |
| Receiver Height | 4.19" |
| Application/Usage | Conference Room |
| Country of Origin | China |
| Transmitter Depth | 1.51" |
| Transmitter Width | 1.72" |
| Transmitter Height | 4.19" |
| Number of USB Ports | 2 |
| Supported Video Modes | 1080p |
| Connectivity Technology | Wired |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Manufacturer Part Number | C2G54268 |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Operating Distance | 295.28 ft |
| Twisted Pair Cable Standard | Category 6a |
| Manufacturer Website Address | http://www.legrand.us |
| Number of Network (RJ-45) Ports | 2 |
