STARTECH.COM

REMOVABLE HARD DRIVE BAY 2.5IN SATA HDD SSD PC EXPANSION SLOT

SKU: CC8704VPN: S25SLOTR

REMOVABLE HARD DRIVE BAY 2.5IN SATA HDD SSD PC EXPANSION SLOT

Key Features

  • Fits a 2.5" SATA drive into a rear full profile expansion card slot
  • Trayless design: drive is not mounted into a tray or enclosure
  • Latching drive door
  • 50,000+ insertion rating
  • Vented aluminum and steel construction
  • Door mounted Power/Activity LED indicator
  • Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
  • Supports 2.5" form factor SATA hard drives (HDD) and solid state drives (SSD)
  • Plug-and-Play and Hot-Swap compatible
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

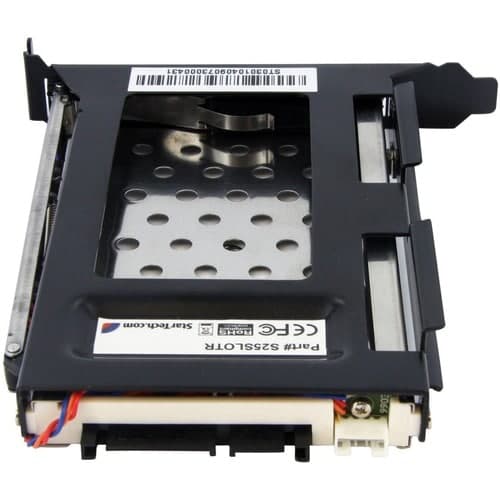

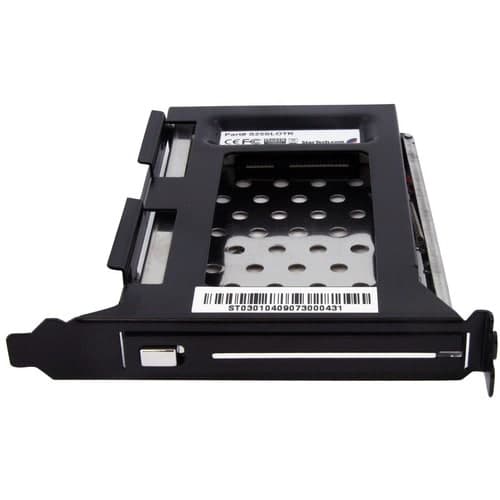

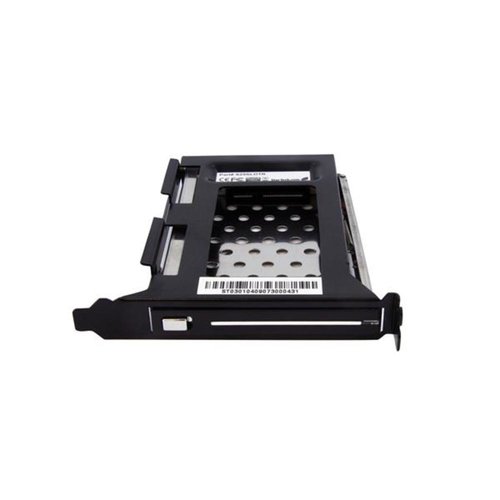

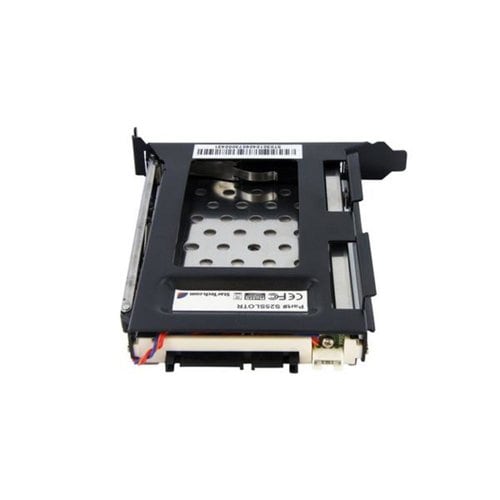

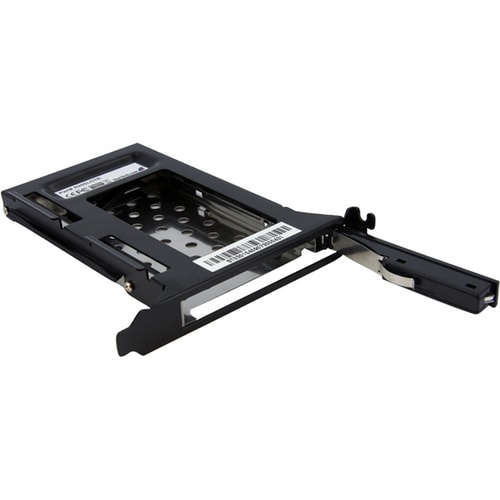

The S25SLOTR Trayless Hard Drive Rack can be installed into an available (full profile) PCI expansion card slot, providing easy access to a bare 2.5" SATA hard drive or solid state drive (SSD) from the rear panel of a computer case. Unlike conventional hard drive enclosures, the S25SLOTR hard drive rack doesn't require that a drive be installed in a drive tray, saving the time and hassle involved in having to mount or install the hard drive for access to drive contents. To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller. Once installed in a PCI slot (and accompanying rear panel bracket), installing a 2.5" SATA HDD is as simple as inserting it into the trayless rack. To remove the hard drive, simply hit the eject button to unlock the access door, allowing the drive to be pulled out of the computer without having to dismount the drive.

Tech Specs

REMOVABLE HARD DRIVE BAY 2.5IN SATA HDD SSD PC EXPANSION SLOT specifications
Depth5.7"
Width0.8"
Height4.7"
Brand NameStarTech.com
Form FactorInternal
Color FamilyBlack
ManufacturerStarTech.com
Product Name2.5in SATA Removable HDD Bay for PC Slot
Product TypeDrive Slot Adapter
Wireless LANNo
Product ColorBlack
Host InterfaceSerial ATA/600
Show all 31 specs
Controller TypeSerial ATA/600
Drive InterfaceSATA/600
Package Contents<ul> <li>2.5in SATA Removable HDD Bay for PC Slot</li> <li>1 x 20in SATA Cable</li> <li>1 x LP4 SATA Breakout Cable</li> <li>1 x Hard Drive Protective Film</li> <li>1 x Mounting Screws</li> <li>1 x Instruction Manual</li> </ul>
Product MaterialSteel
Country of OriginTaiwan
Packaged Quantity1 Each
Number of 2.5" Bays1
Weight (Approximate)5.90 oz
Additional Information<ul><li>Utilize a free expansion card slot to add a removable 2.5" SATA hard drive bay</li><li>Vented aluminum/steel design and a 50,000+ insertion rating ensures reliability of the drive and drive rack</li><li>Backed by a StarTech.com 2-year warranty and free lifetime technical support</li></ul>
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)
Environmentally FriendlyYes
Manufacturer Part NumberS25SLOTR
Certifications & Standards<ul><li>CE</li><li>FCC</li></ul>
Manufacturer Website Addresshttp://www.startech.com
Number of Total Expansion Bays1
Number of Hard Drives InstalledNo
Number of Hard Drives Supported1
Number of Solid State Drive InstalledNo
Number of Solid State Drive Supported1
