EATON TRIPP LITE SERIES MASTER-POWE

PURE SINE WAVE GAMING UPS 120V BATTERY BACKUP 1500VA 900W LCD

SKU: 08KM97VPN: SMART1500PSGLCD

PURE SINE WAVE GAMING UPS 120V BATTERY BACKUP 1500VA 900W LCD

Key Features

  • Not for sale in California until further notice.
  • Protects your gaming equipment against blackouts, brownouts and surges
  • Keeps power running during outages to allow time for game saves and safe shutdown
  • Maintains continuous 120V nominal output during low- and high-voltage conditions
  • USB charging ports keep your smartphone, tablet and other devices at capacity
  • Programmable RGB LED banks offer more than 16 million color combinations
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Not for sale in California until further notice.

Purpose-Built Gaming UPS Protects Your Equipment and Provides Pure Sine Wave Output

This 120V line-interactive UPS provides pure sine wave output in both AC and battery backup modes to keep your gaming PC or gaming console reliably powered. It also protects connected equipment against blackouts, brownouts, surges and line noise that can damage valuable electronics or destroy data. The SMART1500PSGLCD is ideal protection for high-end gaming systems powered by Active PFC power supplies, as well as routers, modems and other network equipment in your computer room, game room or home theater.

Reliable, Expandable Battery Backup Keeps You Playing Through Power Outages

The field-replaceable, hot-swappable internal battery keeps your gaming rig fully operational without interruption during power failures and other severe power conditions. With a typical 300W gaming system connected, the SMART1500PSGLCD provides 17 minutes of independent runtime. This allows you to play through short power failures, avoid streaming interruptions and safely save your game and shut down your system in case of a prolonged blackout. For additional play, the UPS supports an optional BP24V9T external battery pack (sold separately), which provides 41 minutes of expanded runtime.

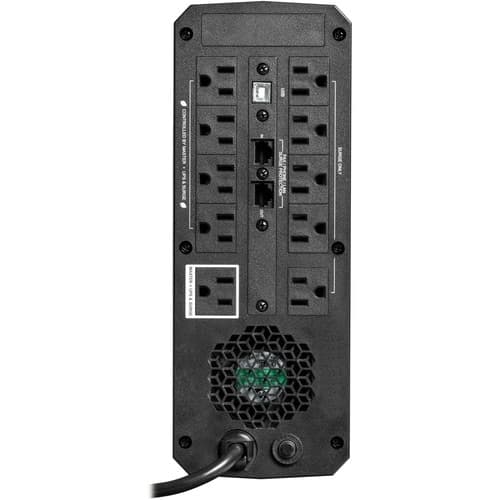

10 NEMA 5-15R Outlets Protect Your Connected Components and Monitor Load Conditions

Four 5-15R energy-saving outlets provide battery backup and network-grade surge protection for your gaming rig and connected desktop and network components. Five outlets are surge-only to connect peripherals not requiring battery backup, such as a printer or desk lamp. One battery- and surge-supported master outlet controls the energy-saving outlets and reports the wattage drawn by the PC or other connected device. If the device connected to the master outlet shuts down or enters standby, the three energy-saving outlets also turn off.

Dynamic Lighting Adds Excitement to Your Gaming Experience

The SMART1500PSGLCD is purpose-built for gaming, including RGB color LEDs you can program yourself. Controllable via the detachable front-panel LCD or free downloadable software utility (https://tripplite.eaton.com/products/management-utilities), two separate LED banks come with seven preset lighting modes and 16.7 million possible color combinations. You can program a variety of color and motion effects or configure the lights to respond to power consumption changes on the master outlet.

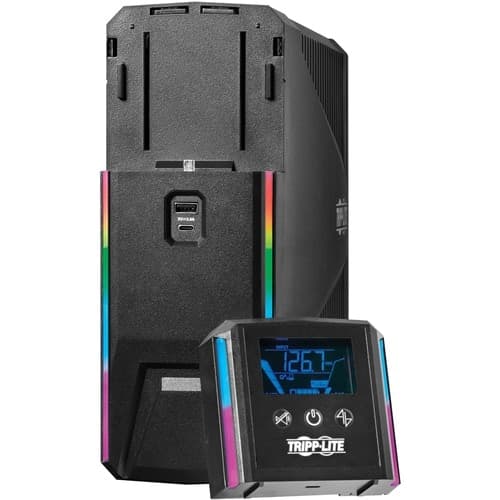

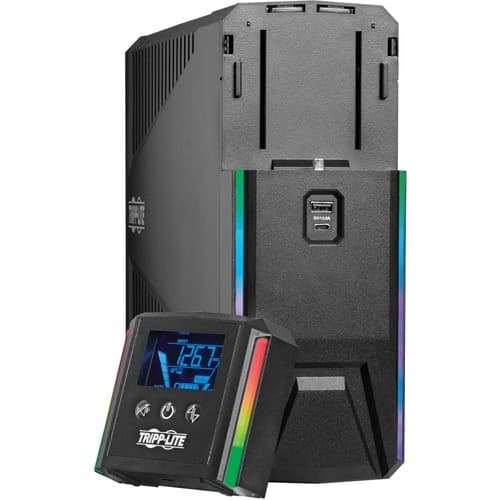

Detachable Wireless LCD Reports Real-Time Status

The front-panel LCD displays a wide range of UPS and power conditions, including operating mode, voltage, frequency, battery level and load level. It detaches from the UPS system and operates wirelessly up to 20 feet (6 meters) away for as many as 12 hours.

Automatic Voltage Regulation Corrects Low and High-Voltage Conditions

AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts.

Tech Specs

PURE SINE WAVE GAMING UPS 120V BATTERY BACKUP 1500VA 900W LCD specifications
AVRYes
USBYes
AlarmBattery Mode Low Charge
Depth16.9"
PhaseSingle Phase
Width4.1"
Height11"
DisplayLCD
Brand NameTripp Lite series
Energy StarYes
Form FactorTower
Color FamilyBlack
Show all 49 specs
ManufacturerEaton Corporation
Product NameSMART1500PSGLCD 1500VA Tower UPS
Product TypeLine-interactive UPS
Energy SavingGreater than 95% efficiency - GREEN UPS; Power saving auto-shutoff ECO outlets
Hot SwappableYes
Input Voltage120 V AC
Product ColorBlack
Product ModelSMART1500PSGLCD
Transfer Time6 ms
Waveform TypePure Sine Wave
Output Voltage120 V AC
Receptacle TypeNEMA 5-15R
Output Frequency60 Hz
Package Contents<ul> <li>SMART1500PSGLCD 1500VA Tower UPS</li> <li>USB Cable</li> <li>Owner's Manual</li> </ul>
Application/UsageHome Theater
Battery ChemistryLead Acid
Country of OriginVietnam
DC System Voltage24 V DC
Receptacle Detail10 x NEMA 5-15R
Status Indicators<p><b> STATUS INFORMATION:<br /></b></p> <ul> <li>Input Voltage</li> <li>Input Frequency</li> <li>Battery Voltage</li> <li>Battery Capacity</li> <li>Estimated Runtime</li> <li>Output Voltage</li> <li>Output Frequency</li> <li>Output Watts</li> <li>Output Load %</li> <li>Master Outlet Power Consumption (Watts)</li> <li>Detachable LCD Module Battery Voltage </li> <li>Firmware Revision</li> </ul> <p><b>CONFIGURATION OPTIONS:<br /></b></p> <ul> <li>Eco-mode Off</li> <li>Eco-mode On</li> <li>Alarm Disable </li> <li>LED Lighting Configurations</li> </ul> <p><b>ERROR MESSAGES:</b></p> <ul> <li>Replace Battery</li> <li>Overload</li> <li>Critical Fault</li> </ul> <ul></ul> <p><b></b></p>
Load Capacity (VA)1500 kVA
Plug/Connector TypeNEMA 5-15P
Surge Energy Rating316 J
Thermal Dissipation28.72 W
EMI/RFI Noise FilterYes
Load Capacity (Watt)900 W
Weight (Approximate)29.26 lb
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Environmentally FriendlyYes
Manufacturer Part NumberSMART1500PSGLCD
USB (HID Compliant) PortYes
Backup/Run Time (Full Load)3 Minute
Backup/Run Time (Half Load)10 Minute
Manufacturer Website Addresshttp://www.eaton.com
Number of Surge-only Outlets5
Maximum Operating Temperature104°F (40°C)
Typical Battery Recharge Time7 Hour
