POE EXTENDER GIGABIT ETHERNET INLINE POE LAN NETWORK EXTENDER

SKU: 1C4781VPN: POEEXT1GAT

In Stock

$135.50

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Deploy and access your Gigabit PoE-powered devices (PD) further away
Extend your PoE PDs over longer distances by daisy-chaining four extenders up to 500m (1640ft) total range (reduced power output at each connection)
Compact, wall-mountable, and rugged metal housing for convenience and reliability
2kV ESD and surge protection
Plug-and-play setup with no power adapter required
IEEE 802.3at 30W input to IEEE 802.3at/af 24W output
52V to 56V output voltage
Automatically detects your connected PD to prevent damage if incorrectly installed

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

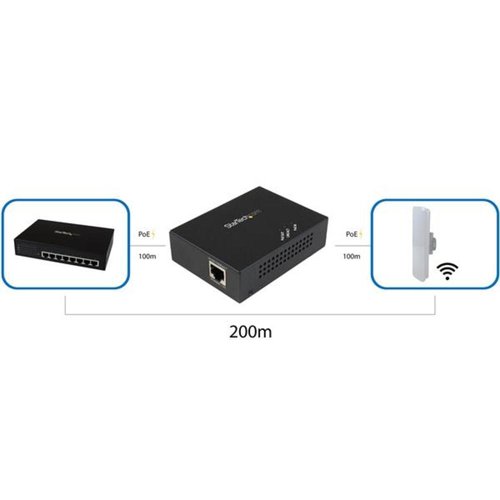

This Gigabit PoE+ extender spans your Power over Ethernet (PoE) device over longer distances, letting you double the 100m limitations of a traditional PoE infrastructure. Now you can connect your Gigabit PoE device up to a maximum of 200m away, so it's easy to install a remote IP camera or access point. Plus the extender can be daisy-chained for more scalability. Unrestricted PoE+ range and convenience Need more distance This convenient PoE+ repeater maximizes range and flexibility by extending your PoE connection by an extra 100m (330ft), while providing 24-watt power output to compatible devices. Simply connect the extender to your power sourcing equipment (PSE) and your PoE-powered device (PD) and you're all set. The extender is compliant with the 802.3at/af standard, so it will work with existing PSE, such as a StarTech.com PoE+ switch (IES81000POE). Daisy chain for longer distance and flexibility Still need more distance If an extra 100m isn't enough, this full-featured PoE extender offers daisy chain capability. You can easily connect four extenders together, letting you install your PoE+ PD up to 500m (1640ft) away. It's perfect for business, education, and retail environments (output wattage is dependent on the number of daisy-chained extenders used). Convenient installation options and durable construction Get up and running quickly. This Gigabit PoE+ extender can be positioned right where you need it, with a wall-mountable design that requires no external power adapter. You can enjoy reliable performance with little worry of downtime or failure, the extender features a rugged metal housing with built-in ESD and surge protection. The POEEXT1GAT is backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications Ideal for Wi-Fi® access points, IP phones, surveillance cameras, and kiosks where a power connection is not available Enable remote installation of PoE+ devices over longer distance than conventional PoE range capabilities Perfect for SOHO, SMB, system integrators, and IT administrators

Tech Specs

POE EXTENDER GIGABIT ETHERNET INLINE POE LAN NETWORK EXTENDER specifications
Width	2.7"
Height	1"
Length	3.7"
Brand Name	StarTech.com
Form Factor	Wall Mountable

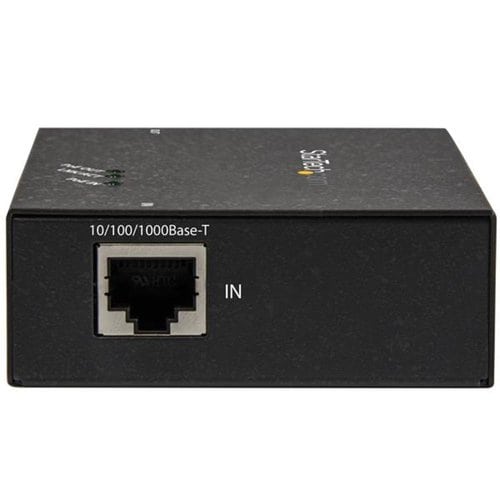

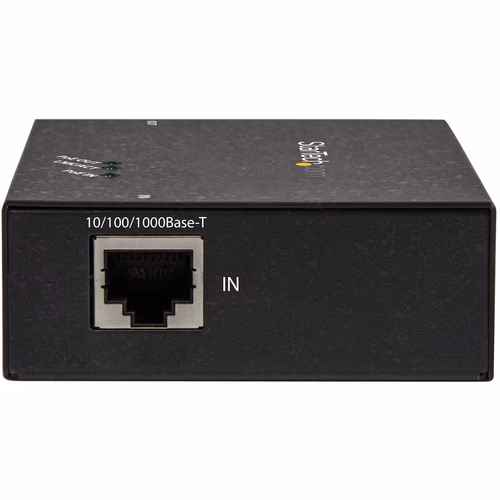

Input Ports	1 x Gigabit Ethernet
Color Family	Black
Manufacturer	StarTech.com

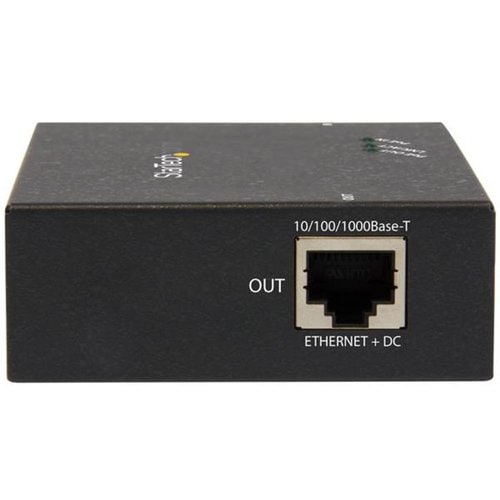

Output Ports	1 x Gigabit PoE+
Product Name	1-Port Gigabit PoE+ Extender - 802.3at and 802.3af - 100 m (330 ft)
Product Type	PoE Extender
Compatibility	<b>Compatible Products:</b> <ul> <li>Wi-Fi Access Points</li> <li>IP Phones</li> <li>Surveillance Cameras</li> <li>Kiosks</li> </ul>

Show all 34 specs

Product Color	Black
TAA Compliant	Yes
WEEE Statement	https://media.startech.com/cms/pdfs/poeext1gat_weee.pdf
Protection Type	ESD Protection
Package Contents	<ul> <li>1-Port Gigabit PoE+ Extender - 802.3at and 802.3af - 100 m (330 ft)</li> <li>1 x Instruction Manual</li> </ul>
Country of Origin	Taiwan
Packaged Quantity	1 Each
REACH free of SVHC	Yes
Maximum Output Power	24 W
Weight (Approximate)	6.81 oz
REACH Declaration URL	https://media.startech.com/cms/pdfs/poeext1gat_rohs.pdf
Additional Information	<ul> <li>Color: Black</li> <li>Enclosure Type: Steel</li> <li>Input Voltage: 52 ~ 56 DC</li> <li>Power Consumption: 3.2 W Max</li> <li>Connector Type(s): 2 - RJ-45 Female</li> <li>MTBF: 50,000 Hours</li> <li>Compatible Networks: 10/100/1000 Mbps</li> <li>Flow Control: Half-duplex back-pressure, IEEE 802.3x pause frame for full-duplex</li> <li>Maximum Cable Length: 328 ft [100 m]</li> </ul>
Maximum Output Voltage	56 V DC
Minimum Output Voltage	52 V DC
EU RoHS Declaration URL	https://media.startech.com/cms/pdfs/poeext1gat_rohs.pdf
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmentally Friendly	Yes
Manufacturer Part Number	POEEXT1GAT
Certifications & Standards	<ul> <li>IEEE 802.3af</li> <li>IEEE 802.3at</li> <li>IEEE 802.3</li> <li>IEEE 802.3u</li> <li>IEEE 802.3ab</li> </ul>
Environmental Certification	EU RoHS
Manufacturer Website Address	http://www.startech.com
End of Life Manual Availability	Yes
