5PORT ETHERNET SWITCH UNMANAGED GIGABIT INDUSTRIAL NETWORK SWITCH

SKU: YB4236VPN: IES51000

In Stock

$209.09$192.45

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

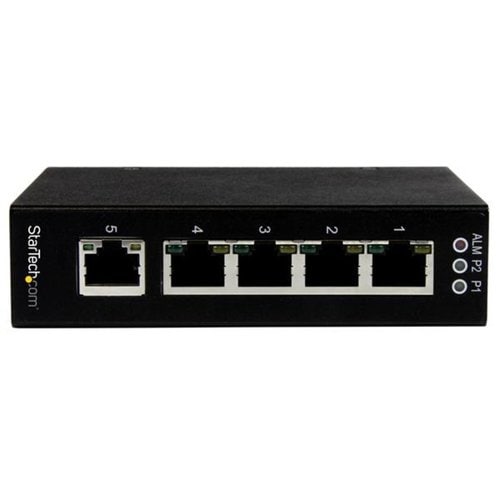

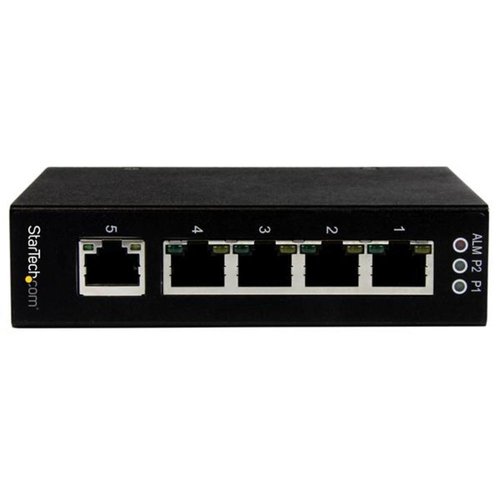

5 10/100/1000 Mbps unmanaged RJ45 Ethernet ports
IP30-rated DIN rail and wall-mountable metal enclosure

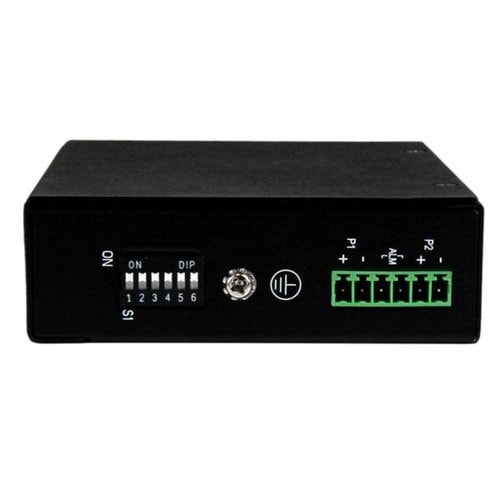

Wide-range redundant power via two 12-58V DC terminal block inputs, with alarm relay
Overcurrent and reverse polarity protection
Extended operating temperature range (-40�C to 75�C)
Speed / duplex auto-negotiation and auto-MDIX detection on each port
Up to 9K jumbo frame support
IEEE 802.3az Energy-Efficient Ethernet
Supports IEEE 802.3x flow control and back-pressure

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

The IES51000 5-Port Industrial Ethernet Switch offers 5 Gigabit Ethernet ports in a compact, IP30-rated metal enclosure, making it the ideal network solution for harsh industrial environments such as factory floors, warehouses or large junction boxes.Quickly connect your network devices with little to no configuration. This unmanaged industrial network switch supports 10/100/1000 Mbps transfer speeds, full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX, which helps to eliminate the hassle of troubleshooting mis-matched speed and duplex settings.Providing seamless operation in the event of power dips or failures, the switch features redundant 12-58V DC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs.For easy installation and dependable performance in harsh environments, the switch can be DIN Rail or wall mounted and features a compact, IP30-rated enclosure with an extended operating temperature range (-40°C to 75°C).Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Tech Specs

5PORT ETHERNET SWITCH UNMANAGED GIGABIT INDUSTRIAL NETWORK SWITCH specifications
USB	No
Depth	4.4"
Width	3.5"
Bypass	No
Height	1.1"
Modular	No
LRE Port	No
Brand Name	StarTech.com
Manageable	No
Stack Port	No
Form Factor	Rail-mountable
Uplink Port	No

Show all 46 specs

Manufacturer	StarTech.com
Power Source	Power Adapter
Product Name	5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable
Product Type	Ethernet Switch
TAA Compliant	Yes
WEEE Statement	https://media.startech.com/cms/pdfs/ies51000_weee.pdf
Layer Supported	2
Management Port	No
Network (RJ-45)	Yes
Token Ring Port	No
Package Contents	<ul><li>5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable</li><li>2 x Wall-Mount Brackets</li><li>1 x DIN-Rail Clip</li><li>4 x Screws</li><li>1 x Terminal Block</li><li>1 x Instruction Manual</li></ul>
PoE (RJ-45) Port	No
Product Material	Steel
Country of Origin	Taiwan
Packaged Quantity	1 Each
Power Consumption	62 W
Network Technology	10/100/1000Base-T
REACH free of SVHC	Yes
Ethernet Technology	Gigabit Ethernet
Media Type Supported	Twisted Pair
Networking Standards	IEEE 802.3
Weight (Approximate)	11.60 oz
REACH Declaration URL	https://media.startech.com/cms/pdfs/ies51000_rohs.pdf
EU RoHS Declaration URL	https://media.startech.com/cms/pdfs/ies51000_rohs.pdf
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmentally Friendly	Yes
Manufacturer Part Number	IES51000
Certifications & Standards	<ul><li>CE</li><li>FCC</li></ul><b>IEEE Standards:</b><br><ul><li>802.3</li><li>802.3u</li><li>802.3ab</li><li>802.1p</li><li>802.3az</li><li>802.3ad</li></ul>
Environmental Certification	EU RoHS
Port/Expansion Slot Details	5 x Gigabit Ethernet Network
Manufacturer Website Address	http://www.startech.com
Total Number of Network Ports	5
End of Life Manual Availability	Yes
Number of Network (RJ-45) Ports	5
