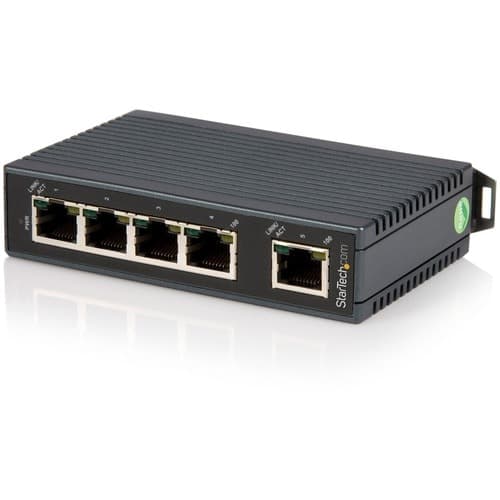

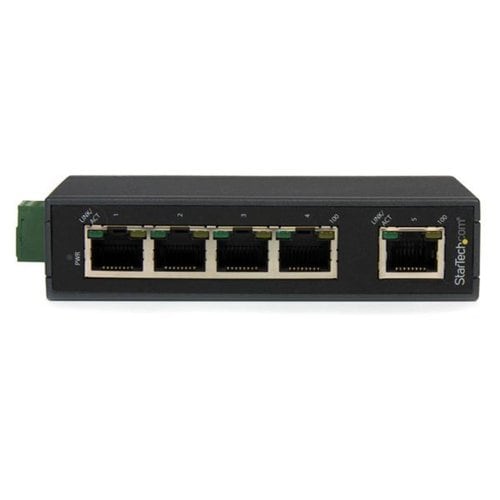

5 PORT ETHERNET SWITCH DIN RAIL MOUNTABLE UNMANAGED NETWORK SWITCH

SKU: ZA1556VPN: IES5102

In Stock

$88.72

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Effectively reduces downtime with improved network performance
Quickly and easily set up a wired network with 5 networking ports
With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
Rail mounting is ideal for factory areas, in vehicles and marine applications
The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Comes in black color for better adaption to the space

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

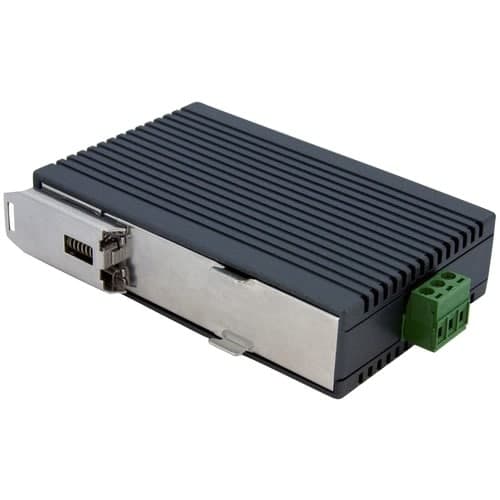

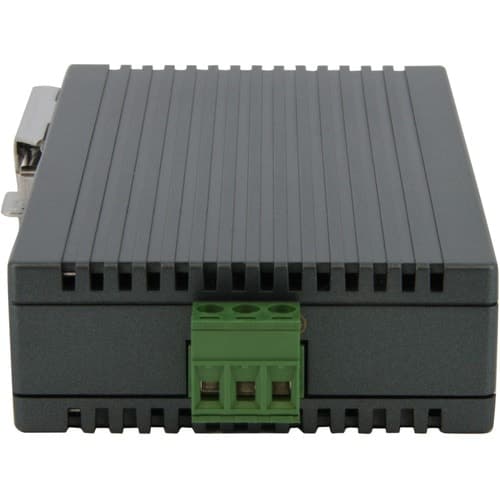

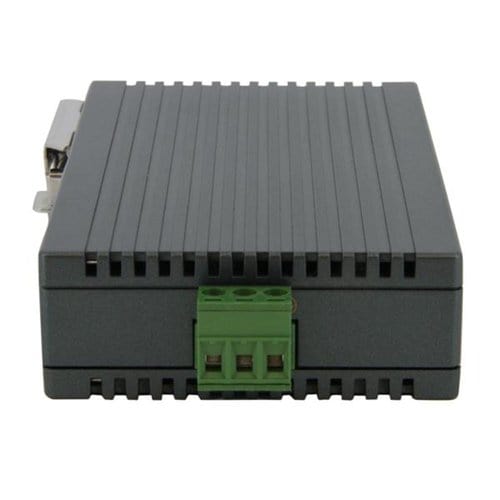

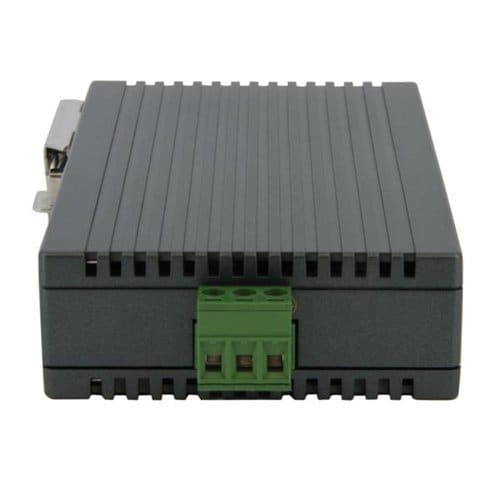

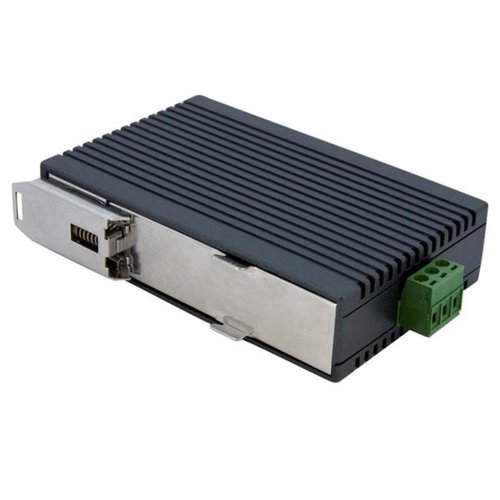

This compact 5-port industrial Ethernet switch is engineered to deliver fast, reliable network connectivity and durability in the most demanding industrial environments. It provides top performance in a wider range of operating temperatures than conventional network switches, making it ideal for factories and warehouses. Conquer the tough demands of industrial environments Designed with a rugged IP30-rated housing, the network switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives you the flexibility to power the switch as required, based on your own power input source, while its wide operating temperature range keeps your network running smoothly. Get up and running in no time This industrial Ethernet switch is easy to install, with an attached metal bracket for DIN rail mounting on equipment racks and cabinets. Now you can eliminate the hassle of troubleshooting mismatched speed and duplex settings. This switch gives you full/half-duplex auto-negotiation and auto MDI/MDIX operation, enabling you to connect your network devices quickly and easily with little to no configuration required. Reduce your energy costs with Energy-Efficient Ethernet With lower overall power consumption, the Ethernet switch enhances your energy efficiency, in turn helping you reduce monthly costs. The IES5102 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Tech Specs

5 PORT ETHERNET SWITCH DIN RAIL MOUNTABLE UNMANAGED NETWORK SWITCH specifications
USB	No
MTBF	1179133 Hour
Width	1"
Bypass	No
Height	4.3"
Length	2.8"
Modular	No
LRE Port	No
Brand Name	StarTech.com
Manageable	No
Stack Port	No
Form Factor	Rail-mountable

Show all 39 specs

Color Family	Black
Manufacturer	StarTech.com
Product Name	5-Port Industrial Ethernet Switch - DIN Rail Mountable
Product Type	Ethernet Switch
Product Color	Black
TAA Compliant	Yes
Layer Supported	2
Management Port	No
Network (RJ-45)	Yes
Token Ring Port	No
Package Contents	<ul> <li>5-Port Industrial Ethernet Switch - DIN Rail Mountable</li> <li>1 x Terminal Block </li> <li>1 x Instruction Manual CD</li> </ul>
PoE (RJ-45) Port	No
Product Material	Plastic
Country of Origin	Taiwan
Packaged Quantity	1 Each
Power Consumption	2.12 W
Network Technology	10/100Base-TX
Ethernet Technology	Fast Ethernet
Media Type Supported	Twisted Pair
Weight (Approximate)	5.30 oz
Environmentally Friendly	Yes
Manufacturer Part Number	IES5102
Certifications & Standards	<ul><li>CE</li><li>FCC</li></ul><p><b>Industry Sandards:</b></p><ul><li>IEEE 802.3</li><li>IEEE 802.3u</li><li>IEEE 802.3az</li><li>IEEE 802.1P</li></ul><b>Regulatory Approvals:</b><br><ul><li>EN61000-6-2</li><li>EN61000-6-4</li><li>EN61000-4-3 (Radiated RFI Standards)</li><li>EN61000-4-4 (Burst Standards)</li><li>EN61000-4-6 (Induced RFI Standards)</li><li>EN61000-4-8 (Magnetic Field Standards)</li><li>IEC60068-2-6 Fc (Vibration)</li><li>IEC60068-2-27 Ea (Shock)</li></ul>
Port/Expansion Slot Details	5 x Fast Ethernet Network
Manufacturer Website Address	http://www.startech.com
Total Number of Network Ports	5
Number of Network (RJ-45) Ports	5
