PLUGABLE USB3-SWITCH2 USB 3.0 SHARING SWITCH

SKU: 3V3723VPN: USB3-SWITCH2

In Stock

$22.48

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

SIMPLE DEVICE SHARING - Compact design provides easy one-touch switching of a USB 3.0 device or hub between two computers
ONE BUTTON TOGGLE - Attach a USB docking station or powered USB hub that is connected to keyboard, mouse, and USB graphics adapter for an all-USB KVM solution
PLUG AND PLAY - Switch works with any USB-enabled computer without drivers, but note that any attached devices still require drivers. LED indicator lights show which connected computer has control of the attached devices
COMPATIBILITY - Not compatible with USB-C or Thunderbolt 3/4 docks that support USB Power Delivery or USB Alt Mode video. We recommend using the provided 1.5m cables to connect the USB switch to your computer and keep connections less than 1.8m to your peripheral
2 YEAR WARRANTY - We love our Plugable products, and hope you will too. All of our products are backed with a 2-year limited parts and labor warranty as well as Seattle-based email support

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Share Your Device(s) With Simplicity

The Plugable USB 3.0 Sharing Switch (USB3-SWITCH2) is the ideal solution for one-touch switching of access between two computers to a:

Powered USB 3.0 hub
USB keyboard/mouse
USB 3.0 graphics adapter
USB 3.0 docking station
Virtually any other USB 3.0/2.0/1.0 device

Features

One-Touch Switching

A single button press is all that's required to toggle between connected computers. Blue LED indicator lights show which connected computer has control.

Potential To Do More

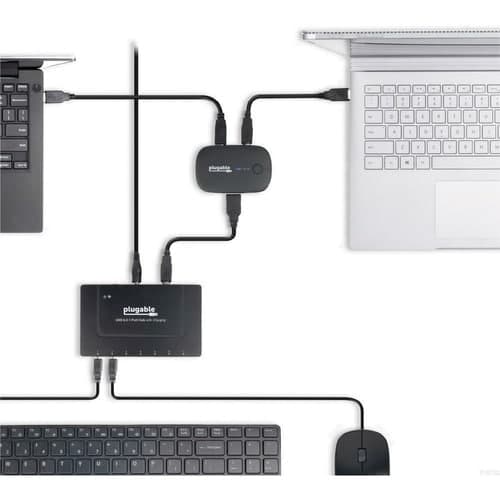

Looking to provide two-computer access to a single keyboard, mouse, and display? Just attach the switch to a powered USB hub, then connect all your desired peripherals for an all-USB KVM solution.

Just Plug In And Switch Away

Switch works with any USB-enabled computer without drivers. Attached external devices will still require drivers as usual.

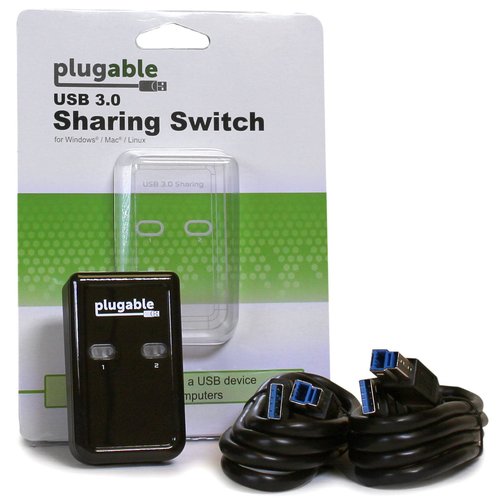

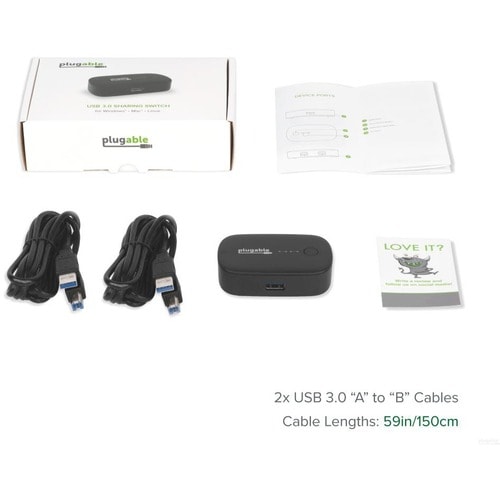

In The Box

1x Plugable USB 3.0 Sharing Switch
2x USB-A to USB-B Cables (1.5m/4.9ft)

System Compatibility

Windows 10, 8.x, 7, Vista, and XP
macOS
Linux

Important Notes

Not recommended for switching mass storage devices such as hard drives, flash drives, card readers, etc, as these devices should be unmounted or safely ejected via the host operating system prior to switching.
Drivers are still required for the connected USB devices.

Additional Features

The switch is backward compatible with USB 2.0/1.0 devices
Simple passive USB switch means no power adapter is needed (bus-powered).

Incompatible Setups and Features

Autosensing of hosts is not supported; manual press of the button is required.
USB-C devices with video output are not supported.
The use of USB-A to USB-B cables greater than 6ft/1.8m is not supported.

Tech Specs

PLUGABLE USB3-SWITCH2 USB 3.0 SHARING SWITCH specifications
Depth	0.9"
Width	1.7"
Height	2.7"
Brand Name	Plugable
Form Factor	External
Manufacturer	Plugable Technologies
Product Name	USB 3.0 SHARING SWITCH
Product Type	USB Switch
Product Model	USB3-SWITCH2
Host Interface	USB 3.0 Type A
Package Contents	<ul> <li>1 x USB 3.0 SHARING SWITCH</li> <li>2 x USB 3.0 Type-A to Type-B cables</li> <li>1 x Quick Start Guide</li> </ul>
Country of Origin	China

Show all 20 specs

Packaged Quantity	1
Platform Supported	PC
Weight (Approximate)	1.48 oz
Number of USB 3.0 Ports	1
Manufacturer Part Number	USB3-SWITCH2
Total Number of USB Ports	1
Operating System Supported	Windows
Manufacturer Website Address	http://www.plugable.com
