PDU SWITCHED20 C13 4 C19 TAA 5/5.8KW LX PLATFORM 0URM 208/240V

SKU: 2DA022VPN: PDUMV30HVNETLX

In Stock

$1,667.00$958.72

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

5/5.8kW 208/240V 30A switched PDU

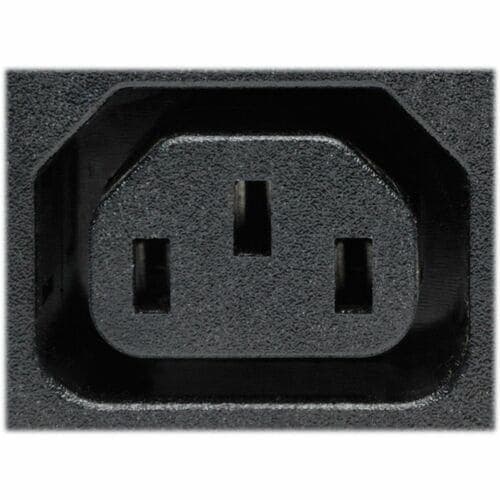

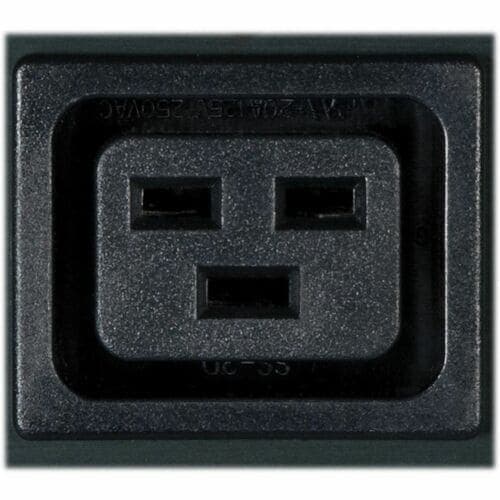

24 individually controllable outlets-20 C13, 4 C19
Built-in LX Platform interface for remote access

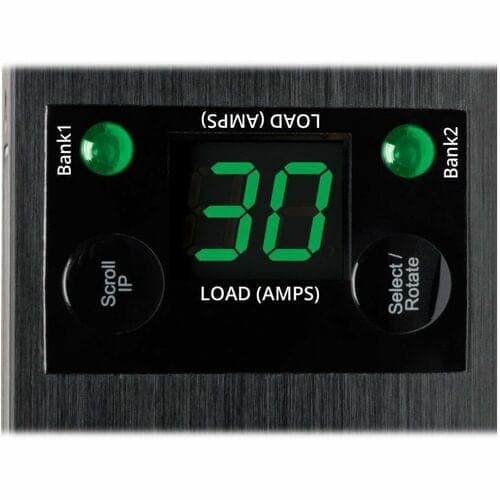

Digital ammeter for on-site load monitoring in real time

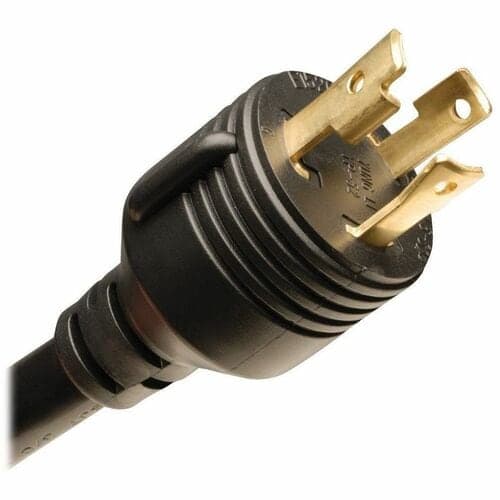

NEMA L6-30P input with 10 ft. AC power cord

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

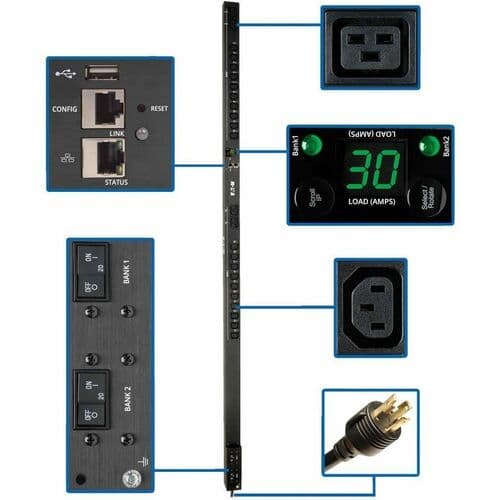

The PDUMV30HVNETLX 5/5.8kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for any IT or industrial application, it features 24 switched outlets (20 C13 and 4 C19). LEDs indicate each outlet's on/off power status. A 10-foot cord with NEMA L6-30P plug connects the PDU to a compatible AC power source, generator or protected UPS.

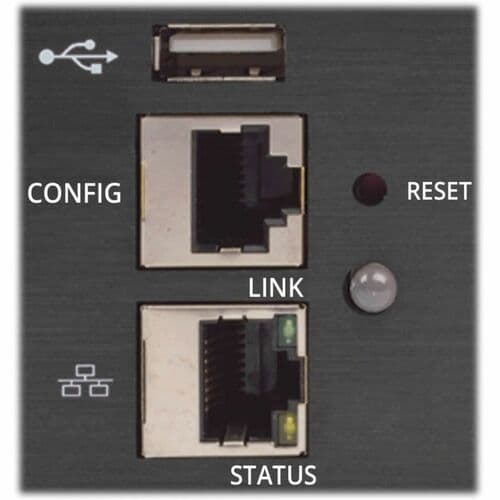

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

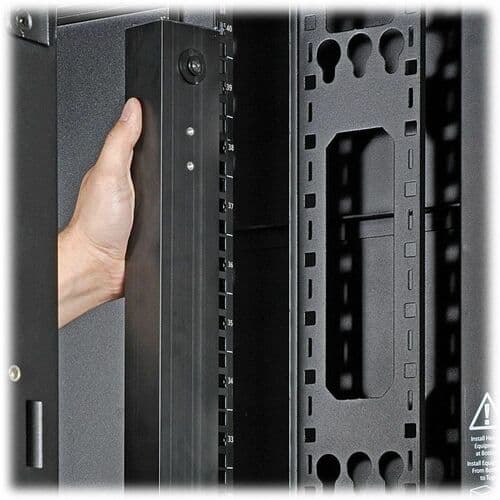

A digital ammeter allows you to monitor each bank's load in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.

Tech Specs

PDU SWITCHED20 C13 4 C19 TAA 5/5.8KW LX PLATFORM 0URM 208/240V specifications
Depth	2.6"
Phase	Single Phase
Width	2.2"
Height	70"
PDU Type	Switched
Brand Name	Eaton
Management	<b>Protocols:</b><br /> <ul> <li>HTTP</li> <li>HTTPS</li> <li>SMTP</li> <li>SNMPv1</li> <li>SNMPv2</li> <li>SNMPv3</li> <li>telnet</li> <li>SSH</li> <li>FTP</li> <li>DHCP</li> <li>NTP</li> </ul>
Mount Type	Rack-mountable
Rack Height	0U
Manufacturer	Eaton Corporation
Product Name	PDUMV30HVNETLX 24-Outlet PDU
Product Type	PDU

Show all 30 specs

Input Current	30 A
Input Voltage	230 V AC
Product Model	PDUMV30HVNETLX
TAA Compliant	Yes
Output Voltage	230 V AC
Protection Type	Overload Protection
Receptacle Type	IEC 60320 C13

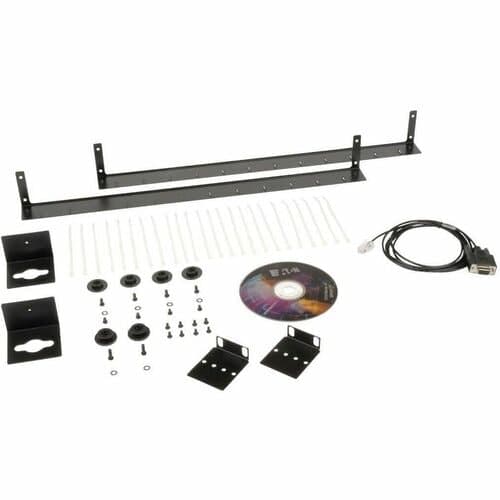

Package Contents	<ul> <li>PDUMV30HVNETLX 24-Outlet PDU</li> <li>Configuration Cable</li> <li>24 x Cable Ties</li> <li>2 x Cord Retention Brackets</li> <li>Rack-mounting Hardware</li> <li>Mounting Bracket Accessory</li> <li>Owner's Manual</li> </ul>
Country of Origin	Taiwan
Receptacle Detail	20 x IEC 60320 C13
Plug/Connector Type	NEMA L6-30P
Power Rating (Watt)	5800 W
Mounting Orientation	Vertical
Weight (Approximate)	11.50 lb
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	PDUMV30HVNETLX
Manufacturer Website Address	http://www.eaton.com
