EATON TRIPP LITE SERIES MASTER-POWE

PDU SWITCHED 2.9KW 120V 30A 2U 16 5-15/20R L5-30P 10FT CORD RM

SKU: Q45588VPN: PDUMH30NET

PDU SWITCHED 2.9KW 120V 30A 2U 16 5-15/20R L5-30P 10FT CORD RM

Key Features

  • Switched 30A 120V PDU, 2U horizontal rackmount format
  • Reports voltage, frequency & load level via ethernet interface
  • Visual current meter, Reversible housing
  • NEMA L5-30P input plug with attached 10 ft. / 3m line cord
  • 16 NEMA 5-15/20R switched outlets with cord retention brackets
  • Temperature, humidity and contact closure monitoring options
  • TAA Compliant
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

The PDUMH30NET 2.9kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.
The switched PDU features 16 individually controllable NEMA 5-15/20R outlets with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot power cord with NEMA L5-30P plug connects the PDU to a compatible AC source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP, BOOTP and NTP.
A digital ammeter allows you to monitor each load bank's current and the total connected PDU load in real time to ensure they remain well below maximum capacity with no danger of overload. The switched PDU mounts in 2U of space in EIA-standard 19-inch racks using the included hardware or beneath a counter with user-supplied screws.

Tech Specs

PDU SWITCHED 2.9KW 120V 30A 2U 16 5-15/20R L5-30P 10FT CORD RM specifications
Depth12.5"
Width17.5"
Height3.5"
PDU TypeSwitched
Brand NameEaton
Management<p><b>Supported Protocols:</b></p><ul><li>HTTP</li><li>HTTPS</li><li>PowerAlert Network Management System</li><li>SMTP</li><li>SNMPv1</li><li>SNMPv2</li><li>Telnet</li><li>FTP</li><li>DHCP</li><li>BOOTP</li><li>NTP</li></ul>
Mount TypeRack-mountable
Rack Height2U
ManufacturerEaton Corporation
Product NamePDUMH30NET PDU Switched 120V 30A 16 Outlet
Product TypePDU
Input Voltage120 V AC
Show all 26 specs
Product ModelPDUMH30NET
TAA CompliantYes
Output Voltage120 V AC
Protection TypeOverload Protection
Receptacle TypeNEMA 5-20R

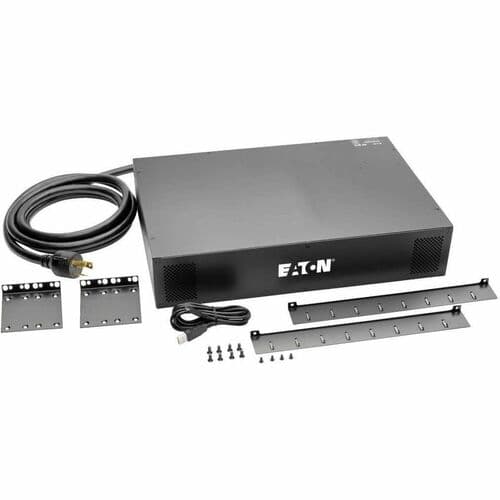

Package Contents<ul><li>PDUMH30NET PDU Switched 120V 30A 16 Outlet</li><li>Rackmount PDU</li><li>4 post compatible mounting brackets</li></ul>
Country of OriginTaiwan
Receptacle Detail16 x NEMA 5-20R
Plug/Connector TypeNEMA L5-30P
Weight (Approximate)13.80 lb
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Environmentally FriendlyYes
Manufacturer Part NumberPDUMH30NET
Manufacturer Website Addresshttp://www.eaton.com
