PDU SWITCHED 120V LX PLATFORM 2.9KW 24 5-15/20R L5-30P 0U TAA

SKU: 2DD777VPN: PDUMVR30NETLX

Out of Stock

$2,185.00$1,256.64

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

2.9kW 120V single-phase switched 70-inch 0U PDU

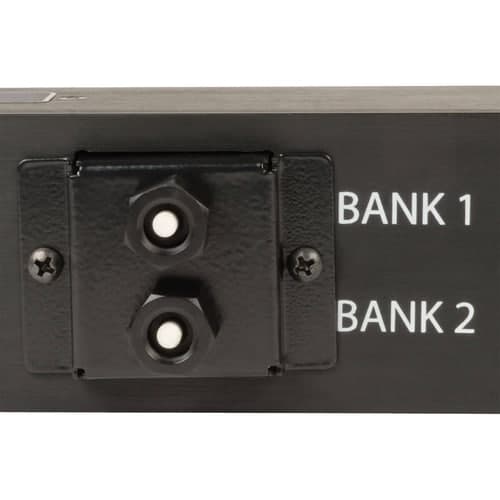

24 controllable NEMA 5-15/20R outlets in 2 load banks
Built-in Java-free LX Platform interface for 24/7 remote access
Digital ammeter for on-site load monitoring in real time
NEMA L5-30P input with 10 ft. AC power cord

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

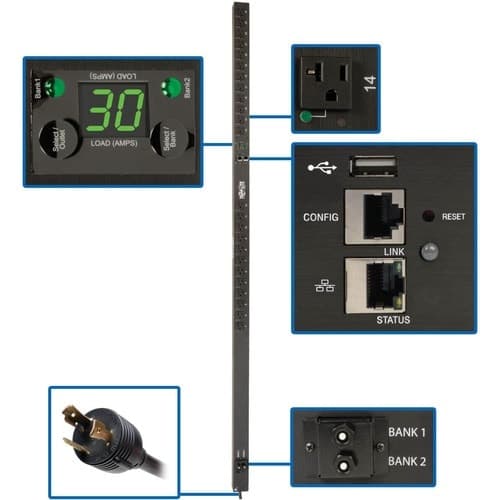

The PDUMVR30NETLX 2.9kW Single-Phase Switched PDU with individual outlet metering provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.

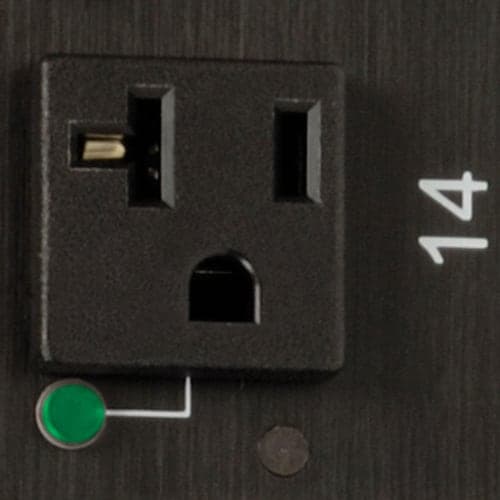

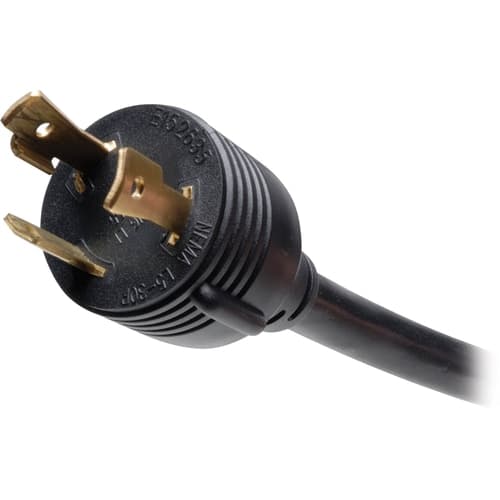

The switched PDU features 24 individually controllable NEMA 5-15/20R outlets with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot power cord with NEMA L5-30P plug connects the PDU to an AC source, generator or protected UPS.

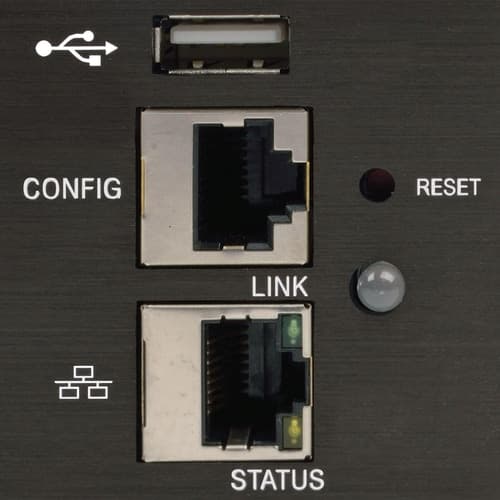

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

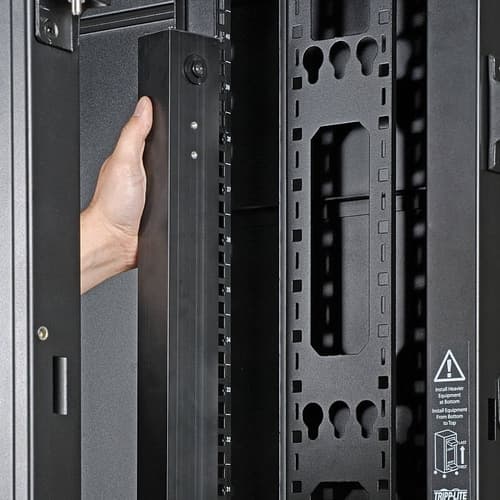

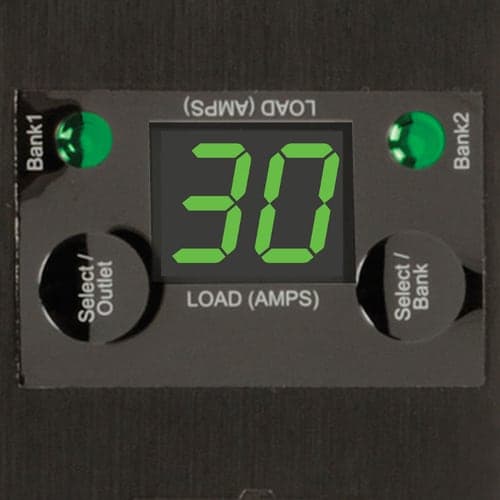

A digital ammeter allows you to monitor each load bank's current, each outlet's current and the total connected PDU load in real time to ensure they remain well below maximum capacity with no danger of overload. The switched PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets.

Tech Specs

PDU SWITCHED 120V LX PLATFORM 2.9KW 24 5-15/20R L5-30P 0U TAA specifications
Depth	2"
Phase	Single Phase
Width	2.2"
Height	70"
PDU Type	Switched
Brand Name	Eaton
Management	<b>Protocols:</b><br /> <ul> <li>IPv4</li> <li>IPv6</li> <li>HTTP</li> <li>HTTPS</li> <li>SMTP</li> <li>SNMPv1</li> <li>SNMPv2</li> <li>SNMPv3</li> <li>telnet</li> <li>SSH</li> <li>FTP</li> <li>DHCP </li> <li>NTP</li> </ul>
Mount Type	Rack-mountable
Rack Height	0U
Manufacturer	Eaton Corporation
Product Name	PDUMVR30NETLX 24-Outlet PDU
Product Type	PDU

Show all 30 specs

Input Current	30 A
Input Voltage	120 V AC
Product Model	PDUMVR30NETLX
TAA Compliant	Yes
Protection Type	Overload Protection
Receptacle Type	NEMA 5-15/20R
Package Contents	<ul> <li>PDUMVR30NETLX 24-Outlet PDU</li> <li>Built-in LX Platform Interface</li> <li>Configuration Cable</li> <li>Cord Retention Brackets</li> <li>24 x Cable Ties</li> <li>Rack-mounting Hardware</li> <li>Mounting Bracket Accessory</li> <li>Owner's Manual</li> </ul>
Country of Origin	Taiwan
Receptacle Detail	24 x NEMA 5-15/20R
Plug/Connector Type	NEMA L5-30P
Power Rating (Watt)	3050 W
Mounting Orientation	Vertical
Output Voltage Range	100 V AC - 127 V AC
Weight (Approximate)	9.94 lb
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	PDUMVR30NETLX
Manufacturer Website Address	http://www.eaton.com
