PDU SWITCHED 120V 20A 0URM 24 5-15/20R L5-20P LX INTERFACE TAA

SKU: 2KL114VPN: PDUMVR20NETLX

In Stock

$1,981.00$1,139.31

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

1.9kW 120V single-phase switched 70-inch 0U PDU
24 controllable NEMA 5-15/20R outlets in 2 load banks
Built-in Java-free LX Platform interface for 24/7 remote access
Digital ammeter for on-site load monitoring in real time
10 ft. power cord with NEMA L5-20P plug and 5-20P adapter

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

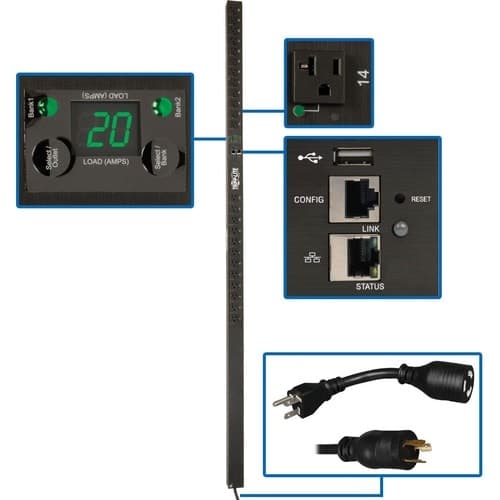

The PDUMVR20NETLX 1.9kW Single-Phase Switched PDU with individual outlet metering provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.

The switched PDU features 24 individually controllable NEMA 5-15/20R outlets with cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot power cord with NEMA L5-20P plug and optional 5-20P adapter connects the PDU to an AC source, generator or protected UPS.

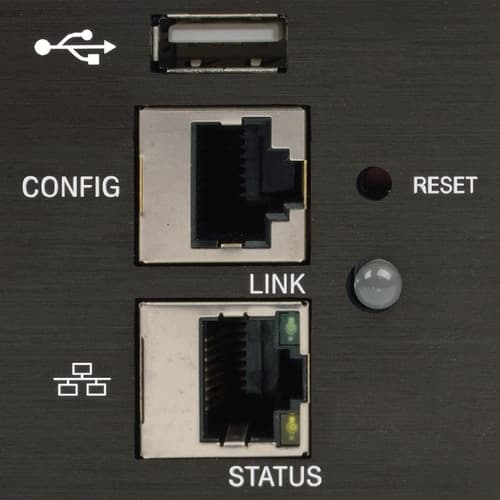

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

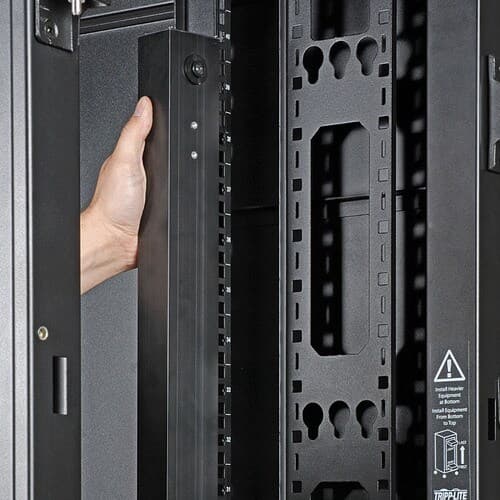

A digital ammeter allows you to monitor each load bank's current, each outlet's current and the total connected PDU load in real time to ensure they remain well below maximum capacity with no danger of overload. The switched PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets.

Tech Specs

PDU SWITCHED 120V 20A 0URM 24 5-15/20R L5-20P LX INTERFACE TAA specifications
Depth	2"
Phase	Single Phase
Width	2.2"
Height	70"
PDU Type	Switched
Brand Name	Eaton
Management	<b>Protocols:</b><br /> <ul> <li>IPv4</li> <li>IPv6</li> <li>HTTP</li> <li>HTTPS</li> <li>SMTP</li> <li>SNMPv1</li> <li>SNMPv2</li> <li>SNMPv3</li> <li>telnet</li> <li>SSH</li> <li>FTP</li> <li>DHCP</li> <li>NTP</li> </ul>
Mount Type	Rack-mountable
Rack Height	0U
Manufacturer	Eaton Corporation
Product Name	PDUMVR20NETLX 24-Outlet PDU
Product Type	PDU

Show all 29 specs

Input Current	20 A
Input Voltage	120 V AC
Product Model	PDUMVR20NETLX
TAA Compliant	Yes
Output Voltage	127 V AC
Receptacle Type	NEMA 5-15/20R
Package Contents	<ul> <li>PDUMVR20NETLX 24-Outlet PDU</li> <li>Built-in LX Platform Interface</li> <li>NEMA 5-20P Plug Adapter</li> <li>Configuration Cable</li> <li>Cord Retention Brackets</li> <li>24 x Cable Ties</li> <li>Rack-mounting Hardware</li> <li>Mounting Bracket Accessory</li> <li>Owner's Manual</li> </ul>
Country of Origin	Taiwan
Receptacle Detail	24 x NEMA 5-15/20R
Plug/Connector Type	NEMA 5-20P
Power Rating (Watt)	2030 W
Mounting Orientation	Vertical
Weight (Approximate)	9.60 lb
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	PDUMVR20NETLX
Manufacturer Website Address	http://www.eaton.com
