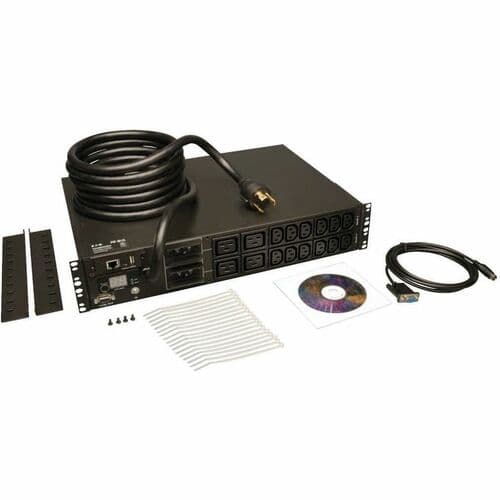

PDU MONITORED 5/5.8KW 208-240V 12 C13 4 C19 L6-30P 12FT CORD 2URM

SKU: LH7341VPN: PDUMNH30HV

Out of Stock

$1,275.00$733.28

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Monitored 30A 208/240V PDU, 2U horizontal rackmount
Reports voltage, frequency & load level via ethernet interface
Visual current meter, Reversible housing

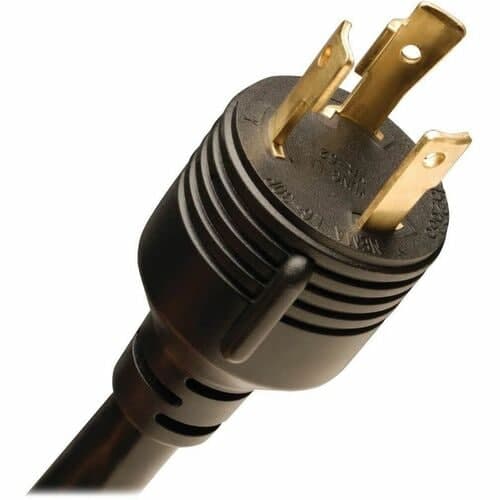

L6-30P input with 12ft / 3.6m line cord
16 outlets (12 C13, 4 C19) with included cord retention brackets
Temperature, humidity and contact-closure monitoring options

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Offers real-time remote monitoring of voltage, frequency and load levels via built-in network connection. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

PDU lighted digital display enables visual monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

Tech Specs

PDU MONITORED 5/5.8KW 208-240V 12 C13 4 C19 L6-30P 12FT CORD 2URM specifications
Depth	12.5"
Width	17.5"
Height	3.5"
PDU Type	Monitored
Brand Name	Eaton
Management	<p><b>Protocols:</b></p><ul><li>HTTP</li><li>HTTPS</li><li>SMTP</li><li>SNMPv1</li><li>SNMPv2</li><li>Telnet</li><li>FTP</li><li>DHCP</li><li>BOOTP</li><li>NTP</li></ul>
Mount Type	Rack-mountable
Rack Height	2U
Manufacturer	Eaton Corporation
Product Name	Monitored PDUMNH30HV 16-Outlets PDU
Product Type	PDU
Input Voltage	230 V AC

Show all 30 specs

Product Model	PDUMNH30HV
TAA Compliant	Yes
Output Voltage	204 V AC
Product Family	Monitored
Product Series	Monitored
Protection Type	Overload Protection
Receptacle Type	IEC 60320 C13
Package Contents	<ul> <li>Monitored PDUMNH30HV 16-Outlets PDU</li> <li>Built-in LX Platform interface</li> <li>L5-20R to 5-20P adapter</li> <li>Plug retention plates</li> <li>Rack-mounting brackets</li> <li>Owner's manual</li> </ul>
Country of Origin	Taiwan
Receptacle Detail	4 x IEC 60320 C19
Input Voltage Range	208 V AC - 240 V AC
Plug/Connector Type	NEMA L6-30P
Mounting Orientation	Horizontal
Weight (Approximate)	13.70 lb
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	PDUMNH30HV
Manufacturer Website Address	http://www.eaton.com
