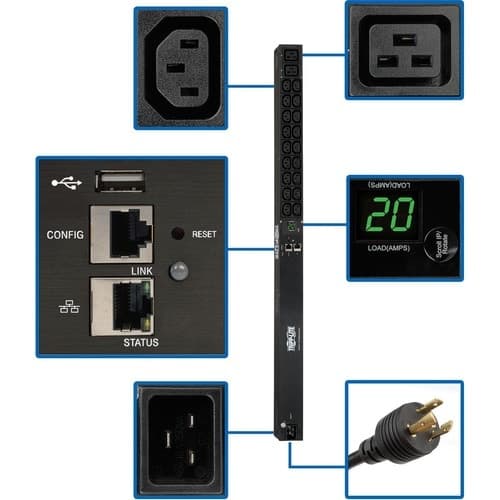

PDU MONITORED 208/230V 20A 18 C13 2 C19 C20/L620P LX INTERFACE

SKU: 2KL111VPN: PDUMNV20HV2LX

In Stock

$767.00$455.50

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

3.3/3.7kW 208/230V single-phase monitored 90cm 0U PDU

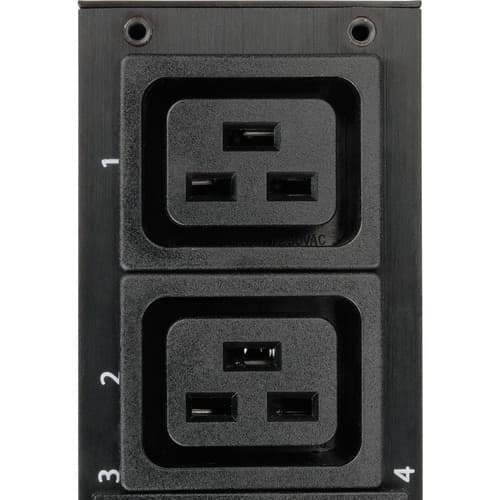

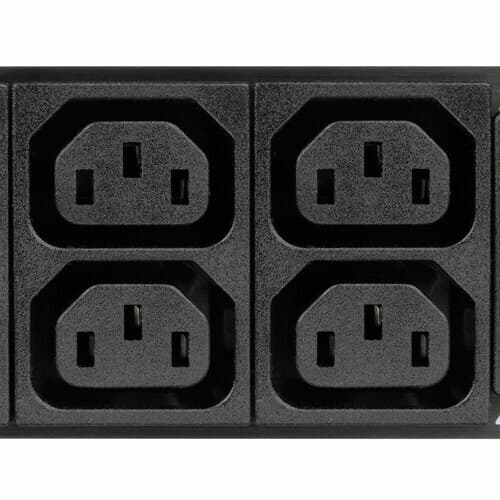

20 outlets-18 C13, 2 C19-with plug-lock insert sleeves
Built-in Java-free LX Platform interface for remote access 24/7

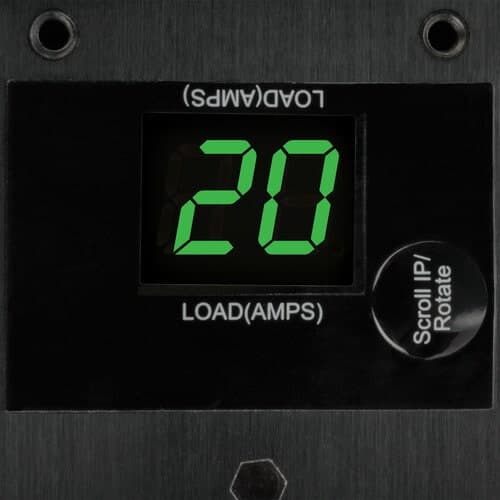

Digital ammeter for on-site load monitoring in real time

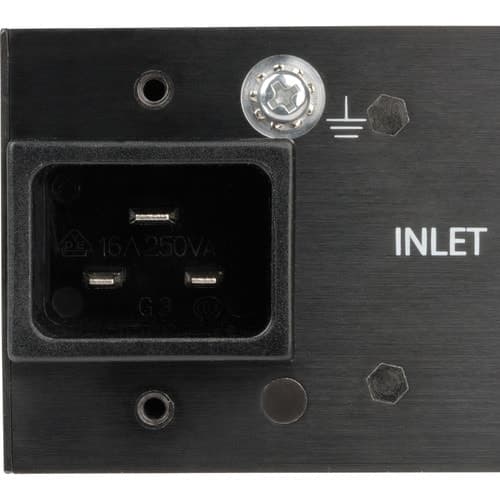

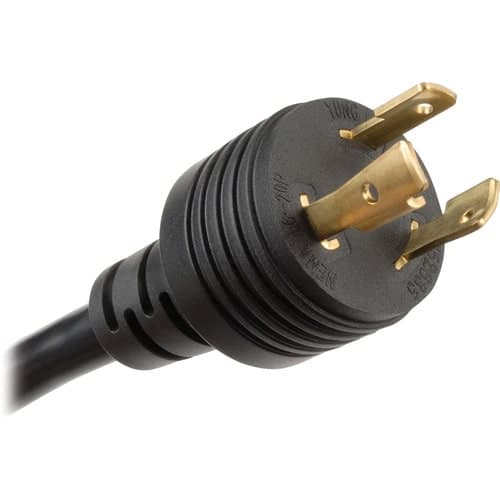

C20 inlet input with detachable 10 ft. NEMA L6-20P power cord

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

The PDUMNV20HV2LX 3.3/3.7kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.

Recommended for your IT or industrial application, the 0U PDU features 20 outlets (18 C13 and 2 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. The C20 inlet is compatible with a wide variety of user-supplied power cords for connecting to an AC source, generator or protected UPS. A detachable 10-foot cord with NEMA L6-20P plug is included.

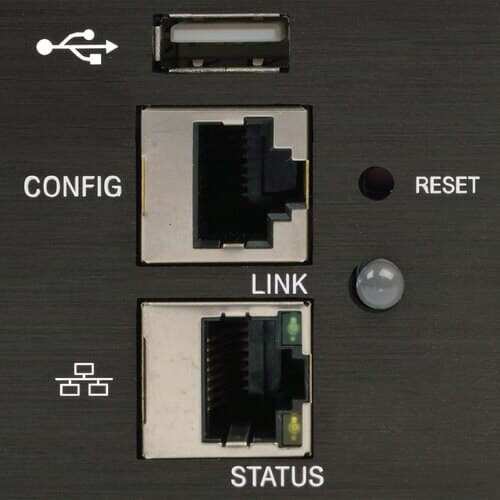

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

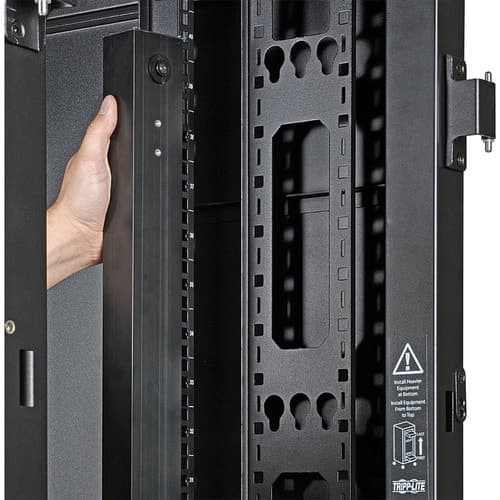

A digital ammeter allows you to monitor the total connected load in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets.

Tech Specs

PDU MONITORED 208/230V 20A 18 C13 2 C19 C20/L620P LX INTERFACE specifications
Depth	1.9"
Phase	Single Phase
Width	2.2"
Height	35.5"
PDU Type	Monitored
Brand Name	Eaton
Management	<b>Protocols:</b><br /> <ul> <li>IPv4</li> <li>IPv6</li> <li>HTTP</li> <li>HTTPS</li> <li>SMTP</li> <li>SNMPv1</li> <li>SNMPv2</li> <li>SNMPv3</li> <li>telnet</li> <li>SSH</li> <li>FTP</li> <li>DHCP</li> <li>NTP</li> </ul>
Mount Type	Rack-mountable
Rack Height	0U
Manufacturer	Eaton Corporation
Product Name	PDUMNV20HV2LX 20-Outlet PDU
Product Type	PDU

Show all 29 specs

Input Current	20 A
Input Voltage	230 V AC
Product Model	PDUMNV20HV2LX
TAA Compliant	Yes
Output Voltage	230 V AC
Receptacle Type	IEC 60320 C13
Package Contents	<ul> <li>PDUMNV20HV2LX 20-Outlet PDU</li> <li>Built-in LX Platform Interface</li> <li>Detachable NEMA L6-20P to C19 Power Cord, 10 ft.</li> <li>Configuration Cable</li> <li>20 x Plug-lock Inserts</li> <li>Rack-mounting hardware</li> <li>Mounting Bracket Accessory</li> <li>Owner's Manual</li> </ul>
Country of Origin	Taiwan
Receptacle Detail	18 x IEC 60320 C13
Plug/Connector Type	IEC 60320 C20
Power Rating (Watt)	3700 W
Mounting Orientation	Vertical
Weight (Approximate)	6.50 lb
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	PDUMNV20HV2LX
Manufacturer Website Address	http://www.eaton.com
