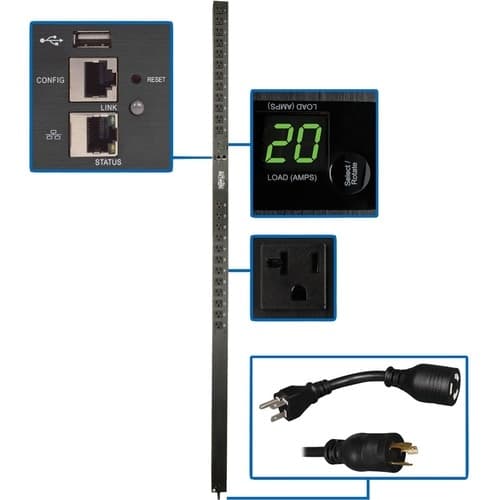

PDU MONITORED 1.9KW 120V 24 5-15/20R LX PLATFORM 70IN 0URM TAA

SKU: 2CZ955VPN: PDUMNV20LX

In Stock

$822.00$472.74

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

1.9kW 120V 20A monitored PDU
24 NEMA 5-15/20R outlets with cord retention brackets
NEMA L5-20P input with 5-20P adapter and 10 ft. AC power cord
Digital ammeter for on-site load monitoring in real time
Built-in LX Platform interface for remote access

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

The PDUMNV20LX 1.9kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Recommended for any IT or industrial application, it features 24 NEMA 5-15/20R outlets with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L5-20P plug and 5-20P adapter connects the PDU to a compatible AC power source, generator or protected UPS.

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

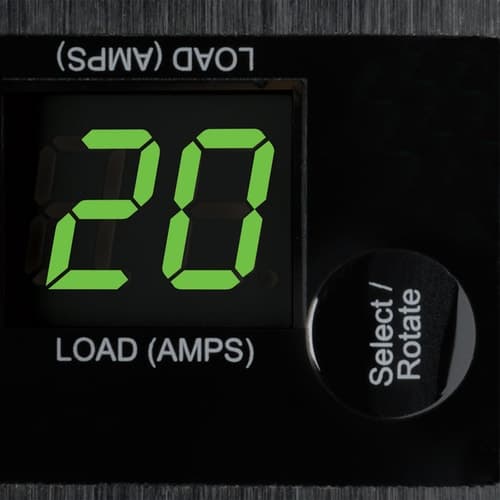

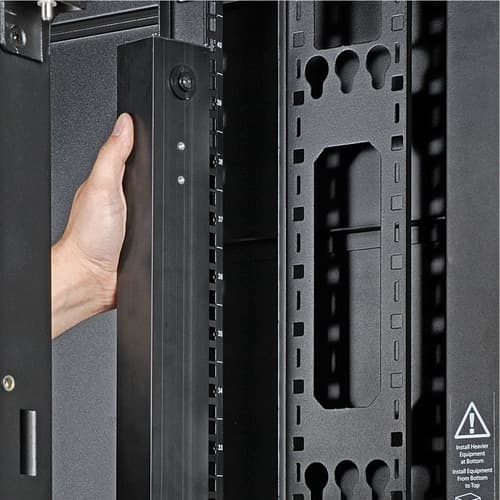

A digital ammeter allows you to monitor the PDU's current level in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.

Tech Specs

PDU MONITORED 1.9KW 120V 24 5-15/20R LX PLATFORM 70IN 0URM TAA specifications
Depth	1.8"
Phase	Single Phase
Width	2.2"
Height	70"
PDU Type	Monitored
Brand Name	Eaton
Management	<ul> <li>HTTP</li> <li>HTTPS</li> <li>SNMPv1</li> <li>SNMPv2</li> <li>SNMPv3</li> <li>telnet</li> <li>SSH</li> <li>FTP</li> <li>DHCP</li> <li>NTP</li> </ul>
Mount Type	Rack-mountable
Rack Height	0U
Manufacturer	Eaton Corporation
Product Name	PDUMNV20LX 1.9kW Single-Phase Monitored PDU
Product Type	PDU

Show all 29 specs

Input Current	20 A
Input Voltage	120 V AC
TAA Compliant	Yes
Output Voltage	127 V AC

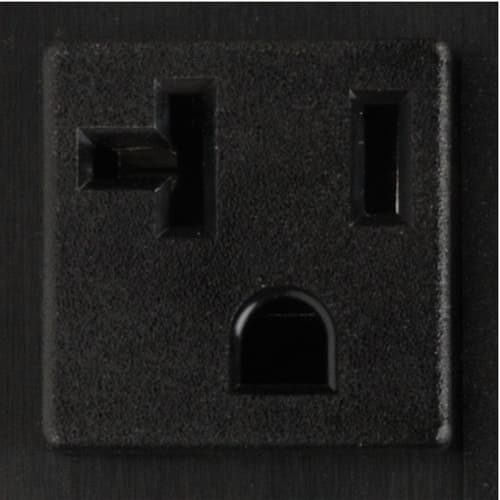

Receptacle Type	NEMA 5-15/20R

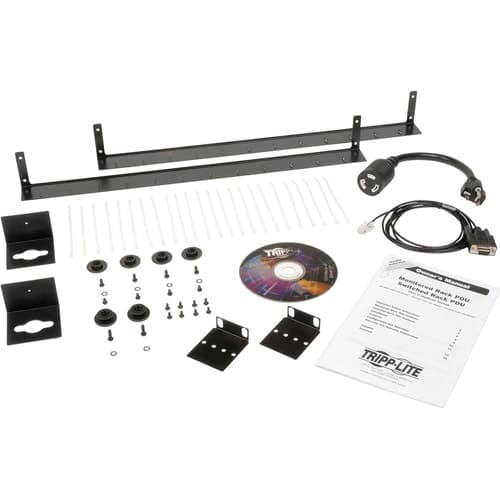

Package Contents	<ul> <li>PDUMNV20LX 1.9kW Single-Phase Monitored PDU</li> <li>Configuration cable</li> <li>24 x Cable ties</li> <li>2 x Cord retention brackets</li> <li>NEMA 5-20P adapter</li> <li>Rack-mounting hardware</li> <li>Nounting Bracket Accessory</li> <li>Owner's manual</li> </ul>
Country of Origin	Taiwan
Receptacle Detail	24 x NEMA 5-15/20R
Input Voltage Range	100 V AC - 127 V AC
Plug/Connector Type	NEMA L5-20P
Power Rating (Watt)	1900 W
Mounting Orientation	Vertical
Weight (Approximate)	12.20 lb
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	PDUMNV20LX
Manufacturer Website Address	http://www.eaton.com
