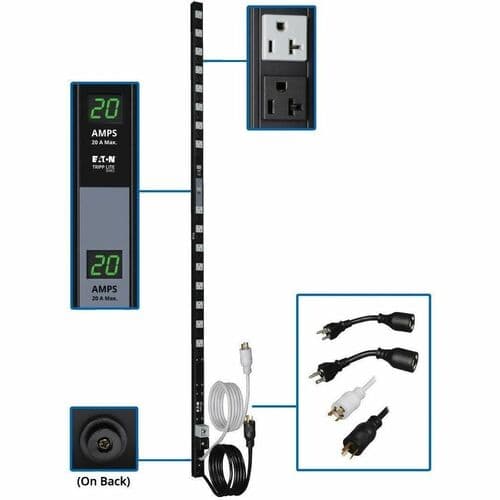

PDU METERED 3.8KW 120V 20A 0U 32 5-15/20R L5-20P/5-20P 10FT CORD

SKU: L81876VPN: PDUMV40

In Stock

$644.96$383.03

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Dual Circuit 71 inch PDU
Dual Independent Current Monitoring Displays
32 NEMA 5-15/20R 120V outlets color coded for each circuit
Two 20A independent circuits of 16 outlets each
Color-coded input power cords for each circuit
Supports connection to NEMA L5-20R or 5-20R 120V 20A wall receptacle

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

The PDUMV40 provides an efficient and manageable power distribution solution for multiple servers with dual redundant power supplies, or any other application that requires numerous outlets, high capacity, and a compact form factor. Dual input current monitoring display shows AC power consumption for each independent circuit. Switchless design eliminates accidental shutoff of connected equipment. Unfiltered electrical pass-through without a power switch makes the PDUMV40 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets, and more. Each of two independent circuits' supports 16 outlets and equipment loads up to 2,400 watts32 outlets and 4,800 watts total capacity without consuming additional rack space.

Tech Specs

PDU METERED 3.8KW 120V 20A 0U 32 5-15/20R L5-20P/5-20P 10FT CORD specifications
Depth	1.5"
Width	71.3"
Height	3"
Brand Name	Tripp Lite series
Mount Type	Rack-mountable
Manufacturer	Eaton Corporation
Product Name	PDUMV40 PDU Metered DUAL 120V 40A 32 Outlet
Product Type	PDU
Input Voltage	120 V AC
Product Model	PDUMV40
Output Voltage	120 V AC
Protection Type	Overload Protection

Show all 26 specs

Receptacle Type	NEMA 5-15/20R
Package Contents	<ul><li>PDUMV40 PDU Metered DUAL 120V 40A 32 Outlet</li><li>PDUMV40 Dual Vertical Circuit/Metered PDU</li><li>Mounting Hardware</li><li>Two NEMA L5-20P to 5-20P plug adapters</li><li>Owner's Manual with warranty information</li></ul>
Country of Origin	China
Receptacle Detail	32 x NEMA 5-15/20R
Plug/Connector Type	NEMA L5-20P
Power Rating (Watt)	4800 W
Mounting Orientation	Vertical
Number of Cord/Cable	2
Weight (Approximate)	8.20 lb
Plug/Connector Detail	2 x NEMA L5-20P
Environmentally Friendly	Yes
Manufacturer Part Number	PDUMV40
Certifications & Standards	<ul><li>UL60950-1</li><li>CAN/CSA C22.2 No. 60950-1-03</li><li>RoHS Complaint</li></ul>
Manufacturer Website Address	http://www.eaton.com
