PDU METERED 1.4KW 120V 15A 0U 16 5-15R 5-15P 15FT CORD 51.5IN

SKU: L81874VPN: PDUMV15

In Stock

$282.51$167.77

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Metered single phase 15A 120V 0U 48in / 122cm vertical rackmount PDU

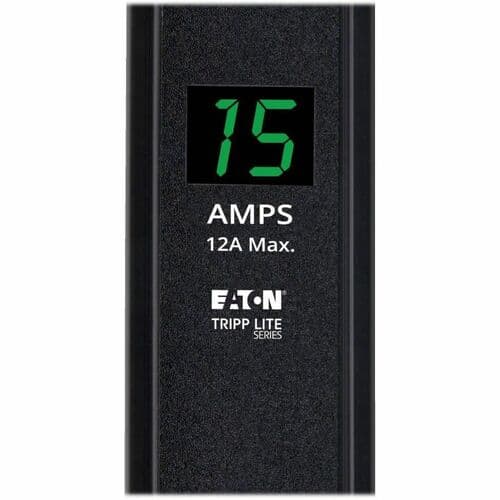

Two-digit current meter reports output current in amps
Attached 15ft / 4.5m cord with NEMA 5-15P input plug

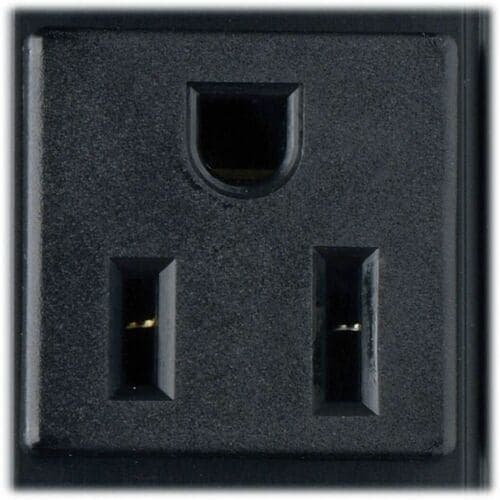

16 NEMA 5-15R outlets

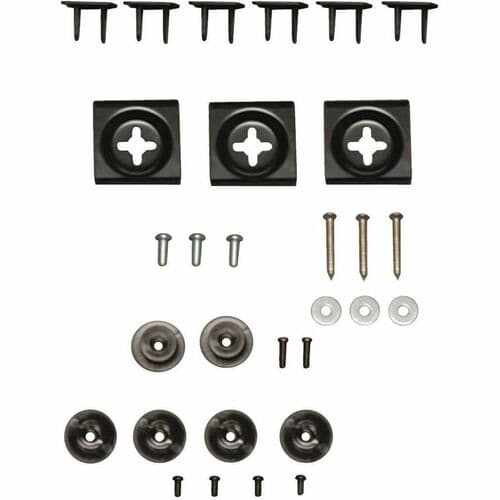

Toolless button mount and bolt-down bracket installation hardware included

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Tripp Lite's PDUMV15 metered power distribution unit offers 15 amp, 120V multi-outlet AC power distribution in a convenient 48-inch mountable housing. Digital current meter displays the power consumption of connected equipment. Offers vertical power distribution in rackmount, raceway, and workbench applications. Includes 16 NEMA 5-15R output receptacles, 15 ft. AC line cord, and lighted power switch with locking transparent cover to prevent accidental shutoff. Sturdy all-metal extruded aluminum housing stands up to demanding network, laboratory, or factory enviroments. Unfiltered electrical pass-through makes the PDUMV15 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Included 16 NEMA5-15R outlets, 15-ft. AC power cord with 5-15P plug, 15 amp circuit breaker in rugged metal case design.PLUG/OUTLETS-Input: NEMA 5-15P/Output: 16 NEMA 5-15RELECTRICAL - 120V AC, 50/60Hz, 15AFORMAT - 48 inch mountable strip format

Tech Specs

PDU METERED 1.4KW 120V 15A 0U 16 5-15R 5-15P 15FT CORD 51.5IN specifications
Depth	1.5"
Width	48"
Height	3"
Brand Name	Tripp Lite series
Mount Type	Rack-mountable
Manufacturer	Eaton Corporation
Product Name	PDUMV15 PDU Metered 120V 15A 16 Outlet
Product Type	PDU
Input Voltage	120 V AC
Product Model	PDUMV15
Output Voltage	120 V AC
Circuit Breaker	Yes

Show all 25 specs

Protection Type	Overload Protection
Receptacle Type	NEMA 5-15R
Package Contents	<ul><li>PDUMV15 PDU Metered 120V 15A 16 Outlet</li><li>PDUMV15 Metered Vertical PDU</li><li>Mounting hardware</li><li>6 outlet safety covers</li><li>Owner's manual with warranty information</li></ul>
Country of Origin	China
Power Rating (VA)	1800 VA
Receptacle Detail	16 x NEMA 5-15R
Plug/Connector Type	NEMA 5-15P
Mounting Orientation	Vertical
Weight (Approximate)	3.80 lb
Environmentally Friendly	Yes
Manufacturer Part Number	PDUMV15
Certifications & Standards	<ul><li>UL60950-1</li><li>CAN/CSA C22.2 No. 60950-1-03</li><li>RoHS Compliant</li></ul>
Manufacturer Website Address	http://www.eaton.com
