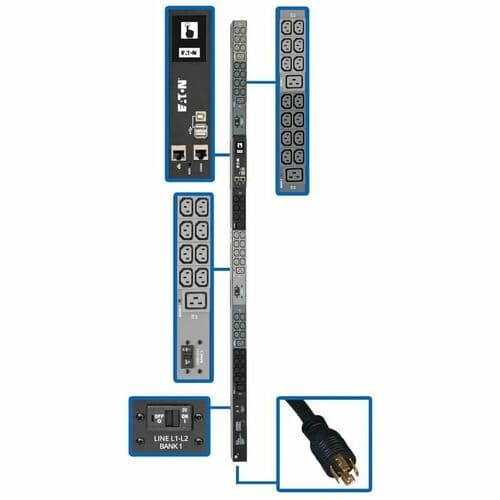

PDU 3PHASE MONITORED 10KW 200/208/240V 42 C13 6 C19 L21-30P

SKU: 2KL100VPN: PDU3EVN10L2130B

Limited Stock

$2,014.00$1,158.29

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

10kW 200/208/240V 3-phase 0U monitored PDU
48 outlets-42 C13, 6 C19-with plug-lock inserts
Built-in LX Platform interface for remote access 24/7

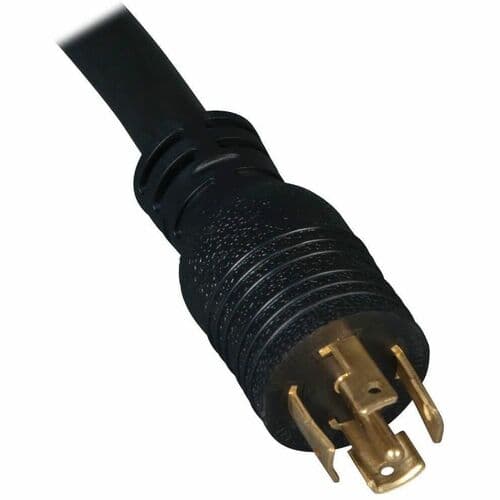

NEMA L21-30P input with 10 ft. AC power cord
Touchscreen LCD with mobile access option via QR code

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

The PDU3EVN10L2130B 10kW 3-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.

Recommended for your IT or industrial application, the monitored PDU features 48 outlets-42 C13, 6 C19-with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L21-30P input plug connects the 3-phase PDU to a compatible AC power source, generator or protected UPS.

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

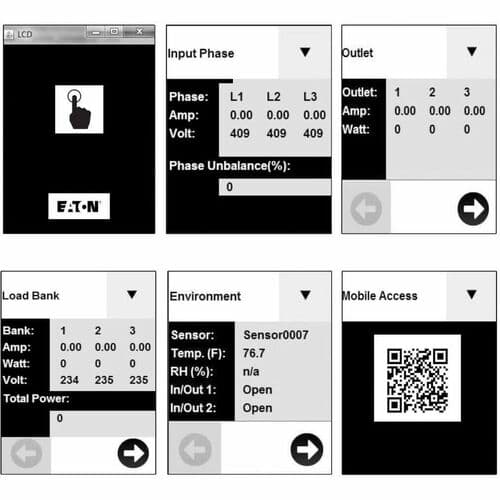

A color touchscreen LCD lets you toggle between menus to monitor input current level per phase and output current per load bank with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the PDU through a mobile device.

Tech Specs

PDU 3PHASE MONITORED 10KW 200/208/240V 42 C13 6 C19 L21-30P specifications
Depth	2.9"
Phase	Three Phase
Width	2.2"
Height	70"
PDU Type	Monitored
Brand Name	Eaton
Management	<b>Protocols:</b><br /> <ul> <li>IPv4</li> <li>IPv6</li> <li>HTTP</li> <li>HTTPS</li> <li>SMTP</li> <li>SNMPv1</li> <li>SNMPv2</li> <li>SNMPv3</li> <li>telnet</li> <li>SSH</li> <li>FTP</li> <li>DHCP</li> <li>NTP</li> </ul>
Mount Type	Rack-mountable
Rack Height	0U
Manufacturer	Eaton Corporation
Product Name	PDU3EVN10L2130B 48-Outlet PDU
Product Type	PDU

Show all 31 specs

Input Current	24 A
Input Voltage	230 V AC
Product Model	PDU3EVN10L2130B
TAA Compliant	Yes
Output Voltage	208 V AC
Network (RJ-45)	Yes
Protection Type	Overload Protection
Receptacle Type	IEC 60320 C19
Package Contents	<ul> <li>PDU3EVN10L2130B 48-Outlet PDU</li> <li>Built-in LX Platform Interface</li> <li>Configuration Cable</li> <li>48 x Plug-lock Insert Sleeves</li> <li>Rack-mounting Hardware</li> <li>Mounting Bracket Accessory</li> <li>Owner's Manual</li> </ul>
Country of Origin	Taiwan
Receptacle Detail	6 x IEC 60320 C19
Plug/Connector Type	NEMA L21-30P
Power Rating (Watt)	10 kW
Mounting Orientation	Vertical
Weight (Approximate)	15.69 lb
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	PDU3EVN10L2130B
Manufacturer Website Address	http://www.eaton.com
