STARTECH.COM

MULTIMODE FIBER MEDIA CONVERTER COPPER TO GIGABIT ETHERNET FIBER SC

SKU: 2NZ533VPN: MCMGBSCMM055

MULTIMODE FIBER MEDIA CONVERTER COPPER TO GIGABIT ETHERNET FIBER SC

Key Features

  • Converts and extends a Gigabit Ethernet fiber (1000Mbps) network over multimode fiber on 1000BASE-SX networks
  • Provides a cost-effective Ethernet to fiber/copper to fiber link
  • Supports a maximum distance of 550 m over multimode fiber-optic cable (SC connection)

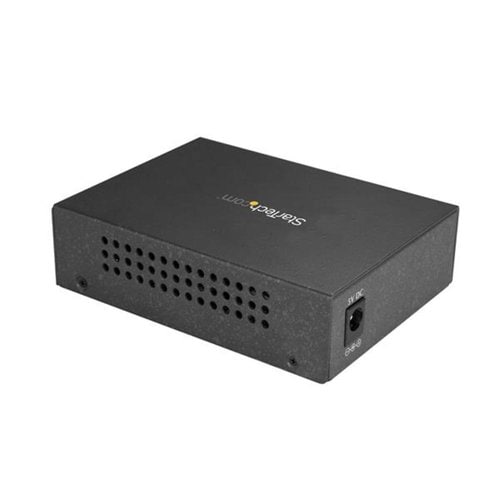

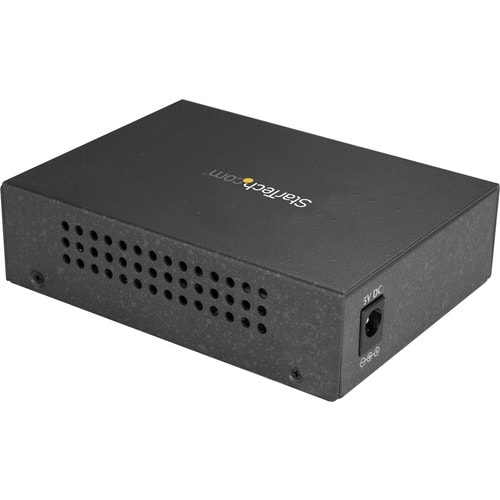

  • Compact design and wall mountable
  • Non-blocking full wire-speed forwarding rate
  • Provides DIP switch supporting Link Fault Pass-through function

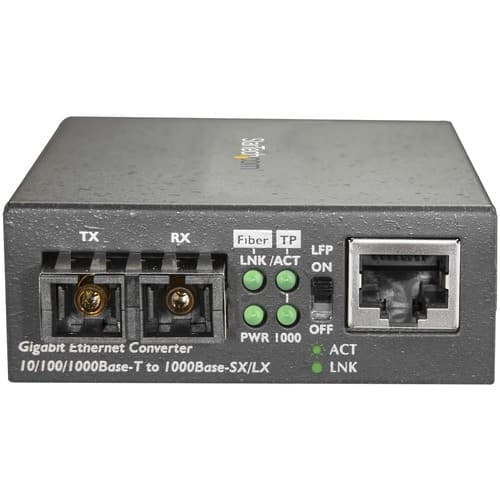

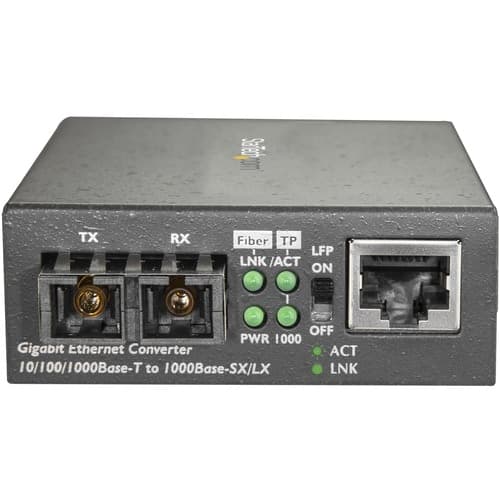

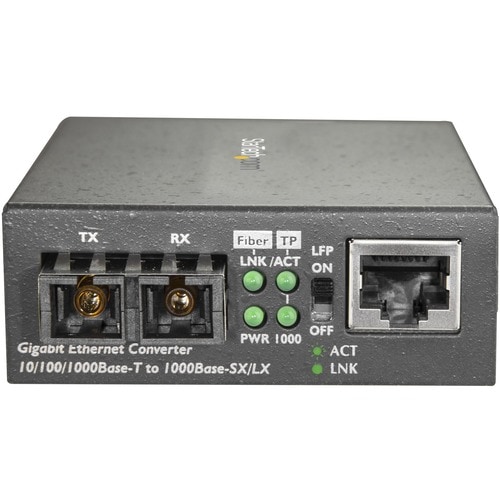

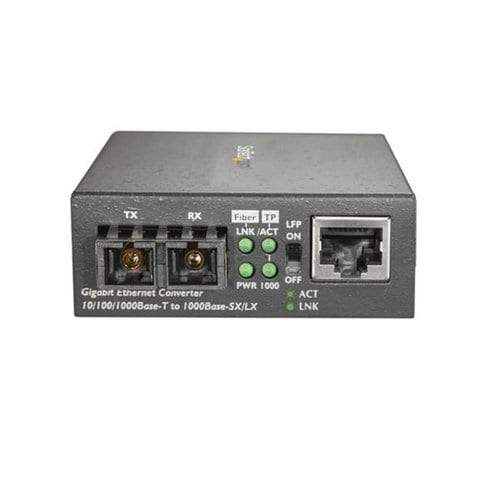

  • LED Indicators for simple Ethernet/fiber network link monitoring
  • 850 nm wavelength
  • Supports IEEE 802.1q Tag VLAN pass-through
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

This fiber media converter extends a Gigabit Ethernet (1000Mbps) network up to 550 mover multimode fiber, on 1000BASE-SXnetworks. Extend your GbE network cost-effectively The fiber media converter offers a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernetnetwork infrastructures.The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation. Reliable and scalable network connectivity Supporting a maximum multimode fiber-optic cable distance of 550 meters (0.34 miles), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations over multimode fiber, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also offers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network. The MCMGBSCMM055 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Tech Specs

MULTIMODE FIBER MEDIA CONVERTER COPPER TO GIGABIT ETHERNET FIBER SC specifications
Depth2.8"
Width3.8"
Height1"
Brand NameStarTech.com
Form FactorWall Mountable
ManufacturerStarTech.com

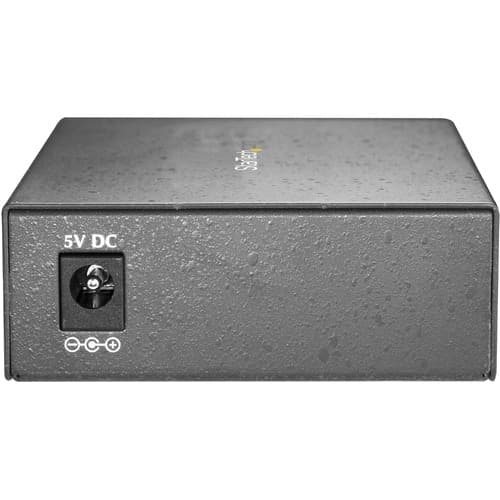

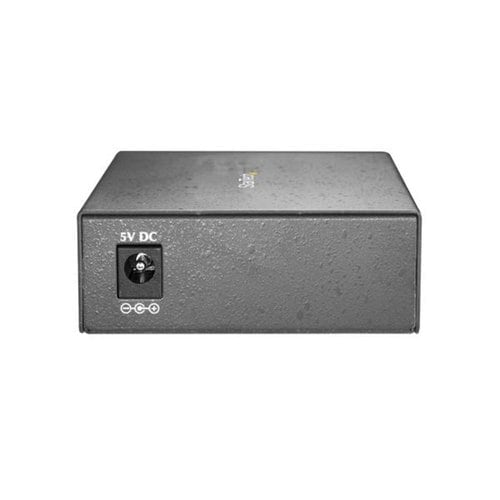

Power SourceAC Adapter
Product NameGigabit Ethernet to SC Fiber Media Converter - 1000Base-SX - Multimode 550 m
Product TypeTransceiver/Media Converter
SC Port TypeDuplex
TAA CompliantYes
Network (RJ-45)Yes
Show all 32 specs

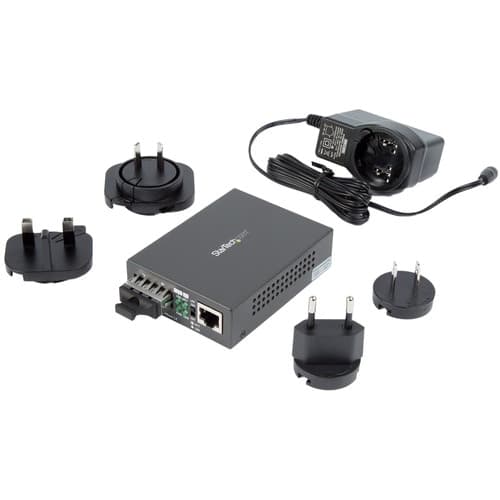

Package Contents<ul> <li>Gigabit Ethernet to SC Fiber Media Converter - 1000Base-SX - Multimode 550 m</li> <li>1 x Universal power adapter (NA/JP, UK, EU, ANZ) </li> <li>1 x Quick-start guide</li> </ul>
Country of OriginTaiwan
Packaged Quantity1 Each
Power Consumption10 W
Network Technology1000Base-T
Number of SC Ports1
Ethernet TechnologyGigabit Ethernet
Plug/Connector TypeType N
Fiber Mode SupportedMulti-mode
Media Type SupportedTwisted Pair
Weight (Approximate)7.10 oz
Total Number of Ports2
Environmental ComplianceRestriction of Hazardous Substances (RoHS) 2
Environmentally FriendlyYes
Manufacturer Part NumberMCMGBSCMM055
Maximum Distance Supported0.55 km
Environmental CertificationEU RoHS
Fiber Optic Cable Wavelength850 nm
Manufacturer Website Addresshttp://www.startech.com
Number of Network (RJ-45) Ports1
