10/100 FIBER MEDIA CONVERTER ST FAST FIBER TO ETHERNET CONVERTER MM
SKU: BH3946VPN: MCM110ST2
10/100 FIBER MEDIA CONVERTER ST FAST FIBER TO ETHERNET CONVERTER MM
Key Features
- Supports a maximum multi mode fiber optic cable distance of 2 km
- Supports full or half-duplex operation
- Compatible with 3com, Cisco, Lucent and Nortel networks
- Supports Link Fault Pass through (LFP)
- Supports IEEE 802.3 10Base-T, 802.3u 100Base-TX and 100Base-FX industry standards
- Supports IEEE 802.1q Tag VLAN pass thru
- Supports Q in Q double tagged frame transparent
- LED Indicators for simple Ethernet/Fiber network link monitoring
- Support flow control (Pause)
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

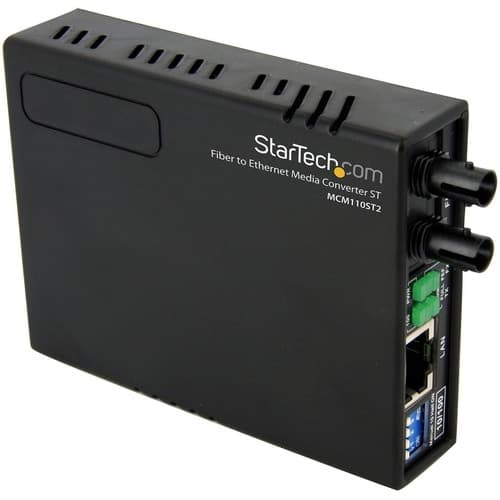

The MCM110ST2 10/100 Multi Mode ST Fiber Ethernet Media Converter (2 km) creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone. The ST media converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability. Easy to setup and install, this compact, value-conscious fast Ethernet media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Tech Specs
| Depth | 3.7" |
|---|---|
| Width | 3" |
| Height | 0.8" |
| Brand Name | StarTech.com |
| Form Factor | External |
| Manufacturer | StarTech.com |
| Power Source | AC Adapter |
| Product Name | 10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km |
| Product Type | Transceiver/Media Converter |
| ST Port Type | Duplex |
| TAA Compliant | Yes |
| Network (RJ-45) | Yes |
Show all 33 specsShow fewer
| Package Contents | <ul> <li>10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km</li> <li>1 x Power Adapter </li> <li>1 x Instruction Manual</li> </ul> |
|---|---|
| Country of Origin | Taiwan |
| Packaged Quantity | 1 Each |
| Power Consumption | 2.40 W |
| Network Technology | 10Base-T |
| Number of ST Ports | 1 |
| Ethernet Technology | Fast Ethernet |
| Plug/Connector Type | Type M |
| Fiber Mode Supported | Multi-mode |
| Media Type Supported | Twisted Pair |
| Weight (Approximate) | 2.90 oz |
| Total Number of Ports | 2 |
| Additional Information | <ul><li>Plug Type: M</li><li>Fiber Operating Mode: Half/Full-Duplex</li></ul> |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | MCM110ST2 |
| Maximum Distance Supported | 2 km |
| Environmental Certification | EU RoHS |
| Fiber Optic Cable Wavelength | 1310 nm |
| Manufacturer Website Address | http://www.startech.com |
| Number of Network (RJ-45) Ports | 1 |
