BLACK BOX CORPORATION

MEDCON 10/100/1000 ETH SM 1310NM 20KM SC

SKU: RF6348VPN: LGC212A-R2

MEDCON 10/100/1000 ETH SM 1310NM 20KM SC

Key Features

  • Compliant to EN60950, UL62368, and EN62368
  • Converts 10/100/1000BASE-TX to 1000BASE-LX at fiber port speed
  • Use as a standalone unit or with available chassis (LHGC-RACK)
  • Supports frame size of 9000 bytes
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Convert 10/100/1000BASE-TX to 1000BASE-LX. 10/100/1000BASE-TX to 1000BASE-LX Meet the connectivity needs of your deployment. This media converter converts 10/100/1000BASE-TX to 1000BASE-LX. Includes broadcast storm control flow control and CRC error checking. Auto-negotiation Completely compatible with IEEE802.3/802.3u auto-negotiation function. Complies with Standards The media converter meets EN60950 UL62368 and EN62368 standards.

Tech Specs

MEDCON 10/100/1000 ETH SM 1310NM 20KM SC specifications
Depth2.7"
Width3.7"
Height1"
Frequency60 Hz
Brand NameBlack Box
Form FactorRack-mountable
ManufacturerBlack Box Corporation
Power SourcePower Adapter
Product LinePure Networking
Product NamePure Networking Transceiver/Media Converter
Product TypeTransceiver/Media Converter
Product FamilyPure Networking
Show all 34 specs
Network (RJ-45)Yes

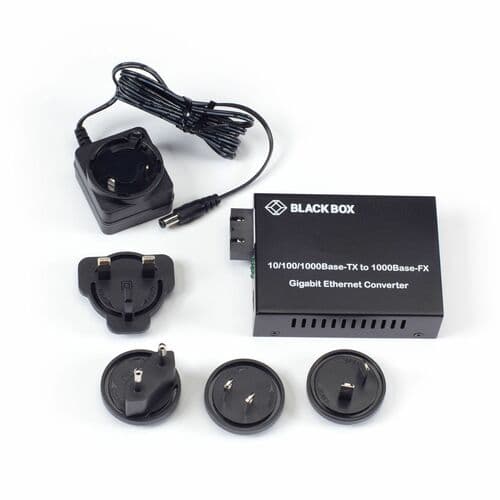

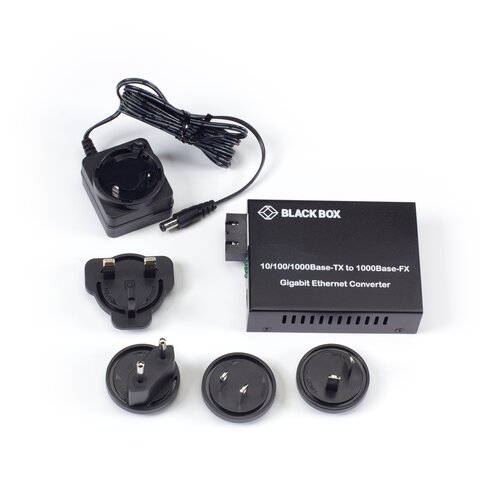

Package Contents<ul><li> Pure Networking Transceiver/Media Converter</li><li> 1 x 5-VDC Power Adapter with (US, EU, UK and AU Power Clips)</li></ul>
Application/UsageNetwork
Packaged Quantity1
Network Technology1000Base-LX
Number of SC Ports1
Ethernet TechnologyGigabit Ethernet
Plug/Connector TypeBarrel
Fiber Mode SupportedSingle-mode
Media Type SupportedTwisted Pair
Weight (Approximate)11.20 oz
Total Number of Ports2
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Environmentally FriendlyYes
Manufacturer Part NumberLGC212A-R2
Certifications & Standards<ul><li> FCC Class B</li><li> CE</li><li> IEEE 802.3</li><li> IEEE 802.3U</li><li> IEEE 802.3x</li><li> 802.3ab</li><li> EN60950</li><li> UL62368</li><li> EN62368</li></ul>
Maximum Distance Supported10 km
Fiber Optic Cable Wavelength1310 nm
Manufacturer Website Addresshttp://www.blackbox.com
Additional Warranty Information<p>Double Diamond Warranty (Standard)</p>
Number of Network (RJ-45) Ports1
Fiber Optic Cable Core/Cladding Specification10/125 µm
