4FT BLACK CAT6 550MHZ PATCH CAB LE UTP CM SNAGLESS

SKU: 4AU916VPN: EVNSL647-0004

In Stock

$6.60

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Constructed to exceed industry standards
Tested to 550 MHz, surpassing 250-MHz CAT6 standard
Cabling is component level verified to ANSI/TIA-568-C2
50-micron gold-plated contacts provide superior conductivity
Connector designed for an insertion and extraction life of 750 cycles

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

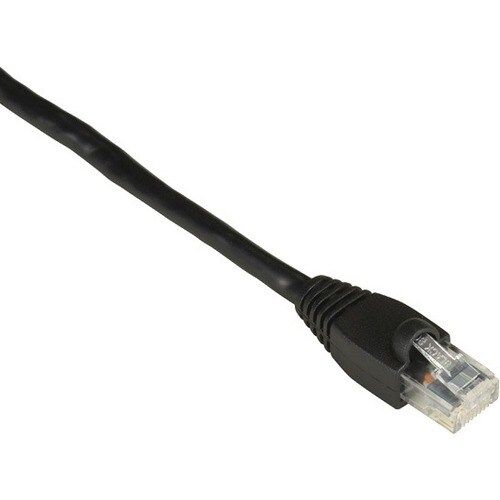

Premium CAT6 Cable Ensures Optimal Performance in Bandwidth-Intensive Gigabit Networking Applications. Black Box GigaTrue Premium CAT6 patch cables are constructed to exceed ANSI/TIA industry standards ensuring optimal performance in bandwidth-intensive Gigabit Ethernet applications and guaranteeing the transmission of your voice data audio/video and/or PoE signals. Tested to 550-MHz and 1-Gbps performance these cables exceed the 250-MHz CAT6 spec greatly reducing impedance structural return loss and near-end crosstalk (NEXT). A robust four-pair 24-AWG construction features 50-micron gold-plated contacts for superior conductivity. These cables have connectors designed for the insertion and extraction life of 750 cycles making for an ultra-reliable solution that you can count on to perform. They also feature snagless boots that provide extra strain relief and prevent connector damage due to cable snags during installation. Available in a variety of lengths and colors Black Box's GigaTrue line of cabling gives you the flexibility to build your install however you want.

Tech Specs

4FT BLACK CAT6 550MHZ PATCH CAB LE UTP CM SNAGLESS specifications
Features	Booted
Boot Type	Snagless
Conductor	Copper
Shielding	No
Brand Name	Black Box
Cable Type	Category 6
Jacket Type	CM
Cable Length	4 ft
Color Family	Black
Manufacturer	Black Box Corporation
Product Line	GigaTrue
Product Name	GigaTrue Cat.6 UTP Patch Network Cable

Show all 31 specs

Product Type	Network Cable
Product Color	Black
Contact Plating	Gold
Jacket Material	Polyvinyl Chloride (PVC)
Device Supported	Network Device
Country of Origin	China
Packaged Quantity	1 Each
Data Transfer Rate	1 Gbit/s
American Wire Gauge	24 AWG
Cable Characteristic	Patch Cable
Additional Information	<ul><li>Perfect for full broadband and baseband video</li><li>Full Power Sum performance</li><li>Provides full-duplex operation</li><li>Meets balance requirements (LCL/LCTL)</li><li>Improved attenuation provides cleaner data and video transmissions</li><li>Attenuation: 23.6 dB at 100 MHz, 39.1 dB at 250 MHz</li><li>Delay Skew (Maximum): 25 ns/100 m (328 ft.)</li><li>Impedance: 100 ± 15 ohms at 100 MHz, 100 ± 22 ohms at 100-550 MHz</li><li>Mutual Capacitance (Maximum): 56 pF/m</li><li>NEXT: 45.0 dB at 100 MHz, 39.0 dB at 250 MHz</li><li>PS-ACR: 32 dB (Typical) at 100 MHz</li><li>PS-NEXT: 43.0 dB at 100 MHz, 37.0 dB at 250 MHz</li><li>Resistance (Maximum): 9.09 Ohms/100 m (328 ft.)</li><li>Return Loss: 22.5 dB at 100 MHz, 20.5 dB at 250 MHz</li><li>Structured Return Loss: 22.5 dB at 100 MHz, 20.5 dB at 250 MHz</li></ul><p><b>Applications:</b></p><ul><li>1000BASE-T</li><li>100BASE-TX</li><li>100BASE-VG</li><li>155-Mbps ATM</li><li>100-Mbps FDDI/CDDI</li></ul>
Environmentally Friendly	Yes
Manufacturer Part Number	EVNSL647-0004
Certifications & Standards	<p>EIA/TIA-568-B.2-1</p>
Connector Type on First End	RJ-45 Network - Male
Connector Type on Second End	RJ-45 Network - Male
Manufacturer Website Address	http://www.blackbox.com
Connector on First End Details	1 x RJ-45 Network - Male
Connector on Second End Details	1 x RJ-45 Network - Male
