BLACK BOX CORPORATION

MEDCON 10/100/1000 ETH MM 850NM 550M SC

SKU: Z60188VPN: LGC211A-R2

MEDCON 10/100/1000 ETH MM 850NM 550M SC

Key Features

  • Compliant to EN60950, UL62368, and EN62368
  • Converts 10/100/1000BASE-TX to 1000BASE-SX
  • Maximum transmission distance up to 550 m
  • Use as a standalone unit or with available chassis (LHGC-RACK)
  • Supports frame size of 9000 bytes
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Convert 10/100/1000BASE-TX to 1000BASE-SX. 10/100/1000BASE-TX to 1000BASE-SX Meet the connectivity needs of your deployment. This media converter converts 10/100/1000BASE-TX to 1000BASE-SX. Includes broadcast storm control flow control and CRC error checking. Auto-negotiation Completely compatible with IEEE802.3/802.3u auto-negotiation function. Complies with Standards The media converter meets EN60950 UL62368 and EN62368 standards.

Tech Specs

MEDCON 10/100/1000 ETH MM 850NM 550M SC specifications
Depth2.7"
Width3.7"
Height1"
Frequency50 Hz
Brand NameBlack Box
Form FactorStandalone
ManufacturerBlack Box Corporation
Power SourceAC Adapter
Product LinePure Networking
Product NamePure Networking Transceiver Media Converter
Product TypeTransceiver/Media Converter
SC Port TypeDuplex
Show all 34 specs
Product FamilyPure Networking
Network (RJ-45)Yes

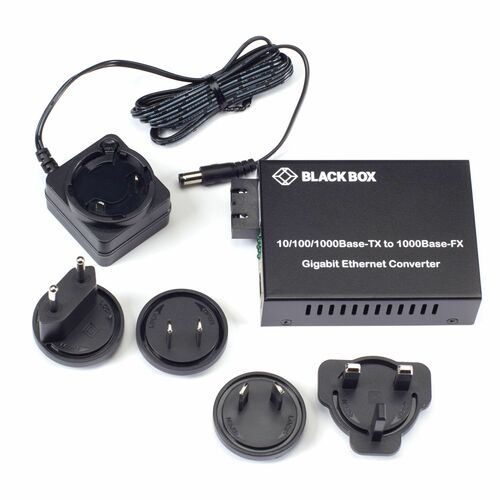

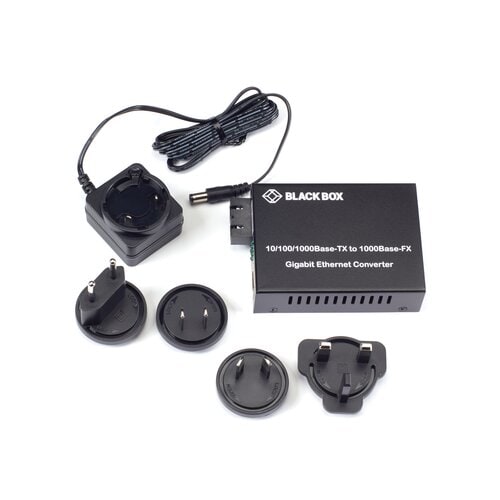

Package Contents<ul><li> Pure Networking Transceiver Media Converter</li><li> 1 x 5-VDC Power Adapter (US, EU, UK and AU Power Clips)</li></ul>
Packaged Quantity1
Network Technology10/100/1000Base-TX
Number of SC Ports1
Ethernet TechnologyGigabit Ethernet
Plug/Connector TypeBarrel
Fiber Mode SupportedMulti-mode
Media Type SupportedTwisted Pair
Weight (Approximate)11.20 oz
Total Number of Ports2
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Environmentally FriendlyYes
Manufacturer Part NumberLGC211A-R2
Certifications & Standards<ul><li> IEEE802.3</li><li> IEEE802.3u</li><li> EN60950</li><li> UL62368</li><li> EN62368</li><li> FCC Class B</li><li> CE</li></ul>
Maximum Distance Supported0.55 km
Fiber Optic Cable Wavelength850 nm
Manufacturer Website Addresshttp://www.blackbox.com
Additional Warranty Information<p>Double Diamond Warranty (Standard)</p>
Number of Network (RJ-45) Ports1
Fiber Optic Cable Core/Cladding Specification50/125 µm
