LANTRONIX - IOT
MANAGED HARDENED SWITCH 8 10/100/1000BASE-T 4 100/1000 SFP
SKU: 7AF453VPN: SISGM1040-284-LRT

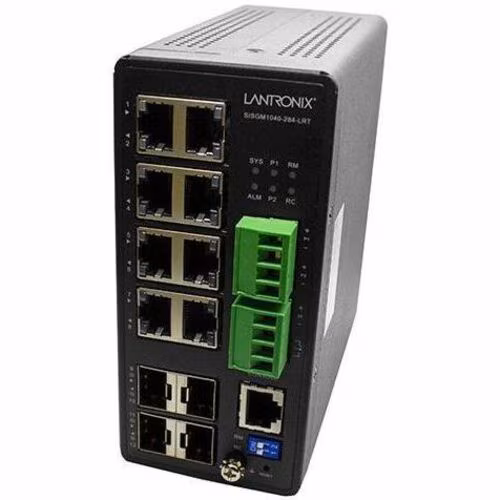

MANAGED HARDENED SWITCH 8 10/100/1000BASE-T 4 100/1000 SFP
Key Features
- Store-and-Forward Architecture with 24 Gbps Switching Bandwidth
- IPv4/IPv6 dual protocols
- Supports Jumbo frames up to 9K Bytes
- Rapid Ring for fast recovery
- Radius, TACACS+, User Authentication
- Supports LLDP Protocol
- IEEE 1588 v2 PTP
- Port Mirroring
- Syslog
- Static routing
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
The SISGM1040-284-LRT is a managed switch suitable for connecting devices in hardened environments. The switch has 24Gbps switching capacity. The switch also includes the embedded Device Management System (DMS) software that provides the advanced tools necessary for total management of all IP addressable devices. The unique DMS provides security integrators with lower overall cost, less downtime and easier management of the entire network.
Transition Networks' hardened switches are certified to operate reliably in harsh environments such as those found on factory floors, outdoor enclosures or other challenging environments.
Tech Specs
| Depth | 5.3" |
|---|---|
| Width | 2.4" |
| Height | 5.4" |
| Modular | Yes |
| Brand Name | Lantronix |
| Manageable | Yes |
| Form Factor | DIN Rail Mountable |
| Manufacturer | Lantronix, Inc |
| Power Source | DC |
| Product Name | Managed Hardened Gigabit Ethernet Switch |
| Product Type | Ethernet Switch |
| Input Voltage | 48 V DC |
Show all 34 specsShow fewer
| Product Model | SISGM1040-284-LRT |
|---|---|
| TAA Compliant | Yes |
| Layer Supported | 4 |
| Network (RJ-45) | Yes |
| Shared SFP Slot | No |
| Application/Usage | Network |
| Country of Origin | Taiwan |
| Power Consumption | 11 W |
| Network Technology | 1000Base-X |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 4 |
| Media Type Supported | Twisted Pair |
| Networking Standards | IEEE 802.1x |
| Weight (Approximate) | 2.20 lb |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | SISGM1040-284-LRT |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Expansion Slot |
| Manufacturer Website Address | http://www.lantronix.com |
| Total Number of Network Ports | 8 |
| Total Number of Expansion Slots | 4 |
