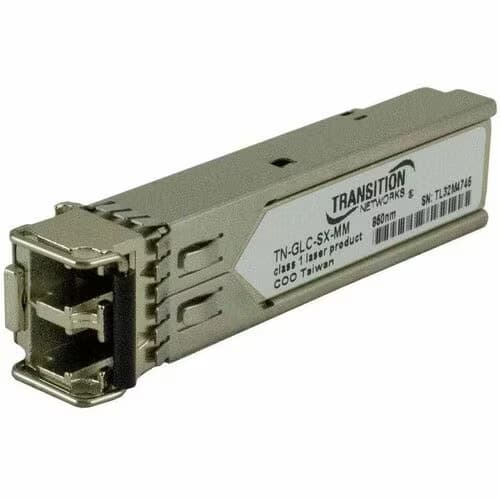

GIGABIT ETHENET SFP 1000BASE-SX 850NM MMF LC 220/550M

SKU: E81568VPN: TN-SFP-SX

GIGABIT ETHENET SFP 1000BASE-SX 850NM MMF LC 220/550M

Key Features

  • Hot-Pluggable SFP Footprint Optical Transceiver
  • Digital Diagnostic Function
  • Compliant with SFP Multi-Sourcing Agreement (MSA)
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Applications include: Gigabit Ethernet Switches and Routers, Fiber Channel Switch Infrastructure, xDSL Applications, and Metro Edge Switching. NDAA Compliant, TAA Compliant

Tech Specs

GIGABIT ETHENET SFP 1000BASE-SX 850NM MMF LC 220/550M specifications
Depth2.2"
Width0.5"
Height0.3"
Brand NameTransition Networks
Form FactorHot-pluggable
ManufacturerLantronix, Inc
Product Name1000BASE-SX Small Form Factor Pluggables (SFP) transceivers
Product TypeSFP (mini-GBIC)
Compatibility<ul><li>The device is designed for use in Switches and routers compatible with Small Form Factor Pluggable Multi-Sourcing Agreement (MSA).</li></ul>
Input Voltage3.3 V DC
Product ModelTN-SFP-SX
TAA CompliantYes
Show all 24 specs
Connector TypeLC
Application/UsageData Networking
Country of OriginTaiwan
Fiber Mode SupportedMulti-mode
Media Type SupportedOptical Fiber
Total Number of Ports1
Additional Information<ul><li>Fiber Channel Switch Infrastructure</li><li>XDSL Applications</li><li>Metro Edge Switching</li><li>850nm Wavelength</li><li>Compliant with Fiber Channel 1x SM-LC-L FC-PI</li><li>Min TX PWR: -9.5 dBm</li><li>Max TX PWR: -4.0 dBm</li><li>RX Sensitivity: -17.0 dBm</li><li>Max In PWR: -3.0 dBm</li><li>Link Budget: 7.5 dB</li></ul>
Interfaces/Ports Details1 x LC 1000Base-SX
Manufacturer Part NumberTN-SFP-SX
Certifications & Standards<ul><li>IEEE 802.3 2003</li><li>ANSI X3.297-1997</li><li>IEEE 802.3z: Gigabit Ethernet</li></ul><p><b>Compliance:</b></p><ul><li>IEC-60825</li><li>FDA 21</li><li>CFR 1040.10 and 1040.11</li></ul>
Maximum Distance Supported0.55 km
Manufacturer Website Addresshttp://www.transition.com
