EATON

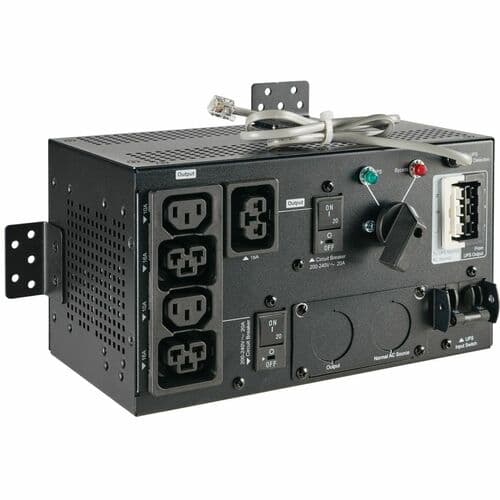

MAINT BYPASS FOR 9PX6KIECG2 UPS HW INPUT 3 C39 2 C13 OUTLETS 0URM
SKU: SN0864VPN: MBP6KIECG2
MAINT BYPASS FOR 9PX6KIECG2 UPS HW INPUT 3 C39 2 C13 OUTLETS 0URM
Key Features
- Isolates UPS from connected loads for maintenance without powering down equipment
- Designed for 0U rear rack mounting, tower or wall mounting using the included hardware
- C39 combo outlets accept C14 and C20 connectors, adding flexibility to deployments
- Compatible with Eaton's 9PX6KIECG2 9PX G2 UPS system
- 3-year limited warranty
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
Features | Compatible with Eaton 9PX6KIECG2 9PX G2 UPS System
The MBP6KIECG2 works with Eaton's 9PX6KIECG2 UPS system. The bypass lets you service or replace the UPS system without powering down any equipment and risking costly downtime. Power passes directly from a power source to equipment when in bypass mode.
Versatile Connection and Installation Options

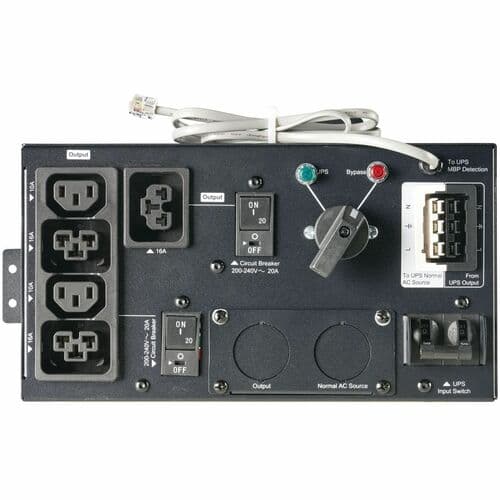

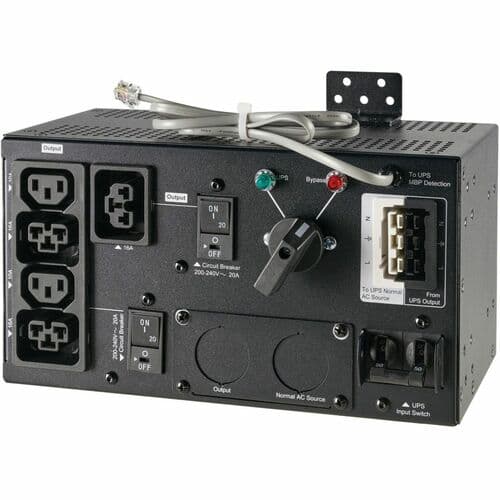

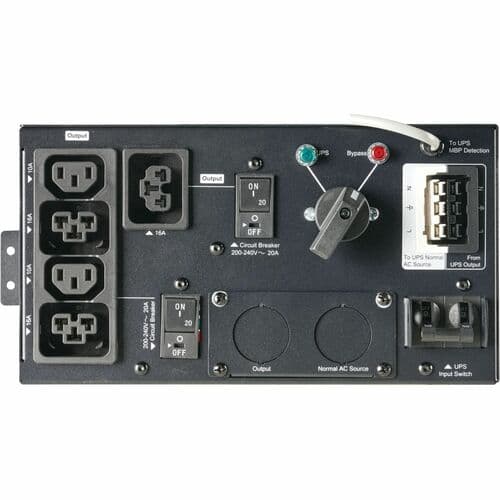

The MBP6KIECG2 features hardwired input, as well as two C13 and three C39 outlets. You can mount the maintenance bypass to the rear of the UPS or extended battery module (EBM) without taking up additional rack space. You can also mount the bypass on the side or top of the rack, on a wall or adapt it for tower installation using the included hardware.
Tech Specs
| Depth | 4.9" |
|---|---|
| Width | 9.4" |
| Height | 5.1" |
| Brand Name | Eaton |
| Form Factor | Rackmount/Tower/Wall-mountable |
| Rack Height | 0U |
| Receptacles | 3 x IEC 60320 C39 |
| Manufacturer | Eaton Corporation |
| Product Name | MBP6KIECG2 Bypass Switch |
| Product Type | Bypass Switch |
| Compatibility | <p>Compatible with Eaton's 9PX6KIECG2 UPS system</p> |
| Product Model | MBP6KIECG2 |
Show all 22 specsShow fewer
| Output Voltage | 208 V AC |
|---|---|
| Package Contents | <ul><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>MBP6KIECG2 Bypass Switch</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Input/output UPS Cable Set</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>2 x Cable Glands</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Mounting Hardware</li></ul> |
| Country of Origin | Philippines |
| Load Capacity (VA) | 6000 W |
| Plug/Connector Type | NEMA L6-30P |
| Load Capacity (Watt) | 6000 W |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Manufacturer Part Number | MBP6KIECG2 |
| Certifications & Standards | <ul><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>cUL Listed</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>NOM (Mexico)</li></ul> |
| Manufacturer Website Address | http://www.eaton.com |
