EATON
UPS WALL-MOUNT KIT FOR SELECT 2U 5PX G2 AND 9PX UPS/EBMS
SKU: Z32062VPN: WMNTKIT
UPS WALL-MOUNT KIT FOR SELECT 2U 5PX G2 AND 9PX UPS/EBMS
Key Features
- Ideal for classrooms, back offices, retail kiosks and network closets
- Allows mounting in tower orientation to keep the UPS close to the wall
- One WMNTKIT required for each UPS or EBM
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
2U Wall-Mount Kit for Select UPS Systems and Extended Battery Modules
The WMNTKIT enables mounting of certain 2U UPS systems to a wall in tower orientation. Recommended for small areas where a rack enclosure is impractical, this wall-mounting kit is ideal for classrooms, back rooms, offices, retail kiosks and small network closets. Up to six M6 screws and washers (not included) are required to attach the WMNTKIT to a wall.
Compatible with Select 2U Eaton and Eaton Tripp Lite series UPS Systems
See the System Requirements section for a list of compatible SmartPro®, SmartOnline®, 5PX G2 and 9PX models. This kit is also compatible with some extended battery modules (EBMs).
Tech Specs
| Depth | 1" |
|---|---|
| Width | 2" |
| Height | 2" |
| Brand Name | Eaton |
| Form Factor | Wall Mountable |
| Rack Height | 2U |
| Manufacturer | Eaton Corporation |
| Product Name | WMNTKIT Mounting Bracket |
| Product Type | Mounting Bracket |
| Compatibility | <p><b>Eaton UPSSmartPro:</b></p><ul><li>SMART750RMXL2U</li><li>SMART750RMXL2UN</li><li>SMART1000RMXL2U</li><li>SMART1000RMX2UN</li><li>SMART1500RMXL2U</li><li>SMART1500RMXLN</li><li>SMART1500RXLTAA</li><li>SMART2200RM2U</li><li>SMART2200RM2UN</li><li>SMART2200RMXL2U</li><li>SMART2200RMXLN</li><li>SMART2200RXLTAA</li><li>SMART3000RM2U</li><li>SMART3000RM2UN</li><li>SMART3000RMXL2U</li><li>SMART3000RMXLN</li><li>SMART3000RXLTAA</li><li>SMX1500XLRT2U</li><li>SMX1500XLRT2UN</li><li>SMX3000XLRT2UA</li><li>BP48VRM2U</li><li>BP72VRM2U</li></ul><p>https://tripplite.eaton.com/wallmount-kit-select-ups-and-extended-battery-modules-2u~WMNTKIT</p> |
| Mount Surface | Wall |
| Product Model | WMNTKIT |
Show all 19 specsShow fewer
| Mount Function | Wall Mount |
|---|---|
| Device Supported | Battery |

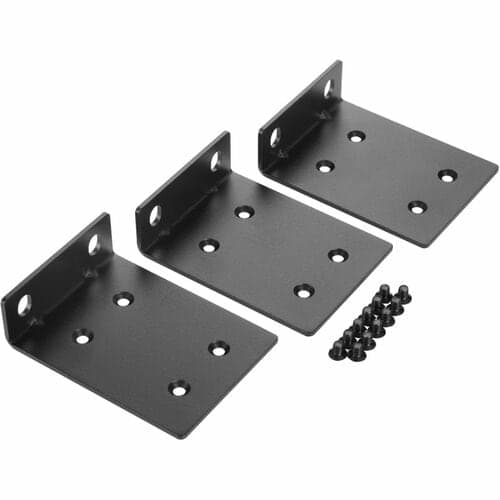

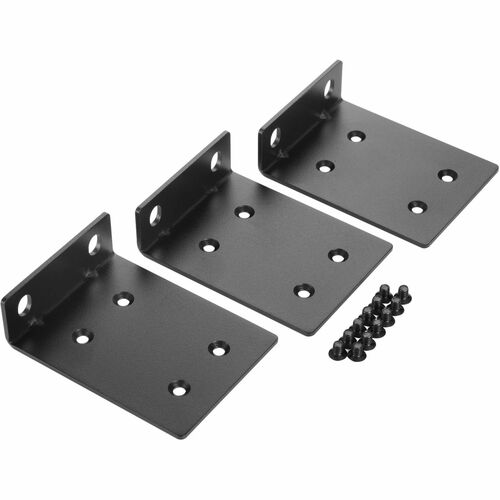

| Package Contents | <ul><li>3 x Wall Brackets</li><li>12 x UPS/EBM Screws - (4) screws are optional on the second Bottom Bracket</li></ul> |
| Application/Usage | Classroom |
| Packaged Quantity | 3 |
| Manufacturer Part Number | WMNTKIT |
| Manufacturer Website Address | http://www.eaton.com |
