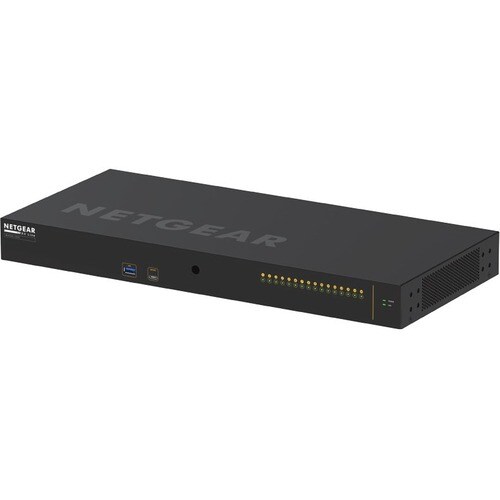

M4250-16XF AV SWITCH

SKU: 8AZ924VPN: XSM4216F-100NAS

In Stock

$1,752.40$1,206.55

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Effectively reduces downtime with improved network performance
IEC 60320 C14 plug/connector type for maximum usability with added reliability
Can work as layer 3 routing for scalable network design
Rack mounting enables you to organize wires & secure cables for professional installation
Management capability allows maximum efficiency and with unrestricted control
Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Switching Engineered for AV over IP

The NETGEAR AV Line M4250 series was designed with input from AV Professionals. The result is a line of switches built from the ground up to support 1Gb audio and video over IP with customized hardware and software along with dedicated service and support.

NETGEAR M4250 series key features:

Ranges from 8 to 16 ports with a variety of PoE+ and Ultra90 PoE++ options for 15.4W, 30W, 60W, 75W and 90W AVoIP endpoints
Uplink options include 1G for audio installations or standalone video installations as well as 10G uplinks for larger scale video deployments
Also includes 12-port multi-gigabit Ethernet and 16-port 1G/10G fiber models for plug and play aggregation in a star topology
Designed for a clean integration with traditionalrack-mounted, AV equipment
The M4250 switches come with a sleek, black display panel with status in front and all cabling plus additional status in the back
Reversed mounting is possible when ports are desired on the front of the rack
A second pair of rackmount ears allows the switches to be mounted recessed by 2-inches to allow for the cabling
Software-controlled fan adjustments enable the fans to be turned off when ambient temperature and PoE loads are appropriate for a totally fanless operation
Threaded holes on the bottom (4xM5 for 50x100mm VESA) and in front (1xM10 for clamps) allow for universal mountingoptionsoutside the rack as well

NETGEAR M4250 series AV software features:

Pre-configured for audio and video over IP out of the box, the M4250 switches enable encoders and decoders to be connected with zero configuration
When more configuration is required, an AV web-based GUI is available at the switch IP address:8080
This interface has been specially designed for AV installers with specific AV-related controls made more accessible and with port-based profiles
For audio, profiles for Dante, Q-SYS and AES67 are built-in, as well as an AVB profile (AVB license sold separately
For video, the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Kramer KDS, Aurora Multimedia, ZeeVee, Atlona, Dante and SDVoE
Other AV CODECs and manufactures are supported as well as audio/video/ control mixed profiles
To further simplify star deployments, NETGEAR IGMP Plus™ brings multicast automation between all M4250 switches, and with M4300/M4500
Simply connect the switches together and you are done!

NETGEAR M4250 series other software features:

All M4250 switches share the same high-end NETGEAR Layer 2 / Layer 3 switching engine for a consistent experience
All switches in the M4250 series have another main, IT web-based GUI for midsize Enterprise campus networks, IoT and IPTV
Additional features include static, RIP and PIM-SM, DM and SSM multicast routing, DHCP Server and PTPv2 Transparent Clock (1-step E2E)
AVB is the only feature requiring a license, all other advanced features are available license-free
Advanced classifier-based, time-based hardware implementation for L2 (MAC), L3 (IP) and L4 (UDP/TCP transport ports)
Selectable Port-Channel / LAG (802.3ad - 802.1AX) L2/L3/L4 hashing for fault tolerance and load sharing with any type of Ethernet channeling
Voice VLAN with SIP, H323 and SCCP protocols detection and LLDP-MED IP phones automatic QoS and VLAN configuration
Efficient authentication tiering with successive DOT1X, MAB and Captive Portal methods for streamlined BYOD

Tech Specs

M4250-16XF AV SWITCH specifications
Depth	7.9"
Width	17.3"
Height	1.7"
Modular	Yes
Brand Name	Netgear
Manageable	Yes
Form Factor	Rack-mountable
Manufacturer	Netgear, Inc
Power Source	Power Supply
Product Line	AV Line
Product Name	AV Line M4250-16XF 16x1G/10G Fiber SFP+ Managed Switch
Product Type	Ethernet Switch

Show all 34 specs

Product Model	M4250-16XF
Product Family	AV Line
Layer Supported	3
Power Plug Type	Type C
Shared SFP Slot	No
PoE (RJ-45) Port	No
Country of Origin	Thailand
Power Consumption	19.27 W
Network Technology	10GBase-X
Ethernet Technology	10 Gigabit Ethernet
Expansion Slot Type	SFP+
Plug/Connector Type	IEC 60320 C14
Compatible Rack Unit	1U
Media Type Supported	Optical Fiber
Number of SFP+ Slots	16
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	XSM4216F-100NAS
Port/Expansion Slot Details	16 x 10 Gigabit Ethernet Expansion Slot
Energy Efficiency Compliance	Energy-related Products Directive (ErP)
Manufacturer Website Address	http://www.netgear.com
Total Number of Expansion Slots	16
